Product description

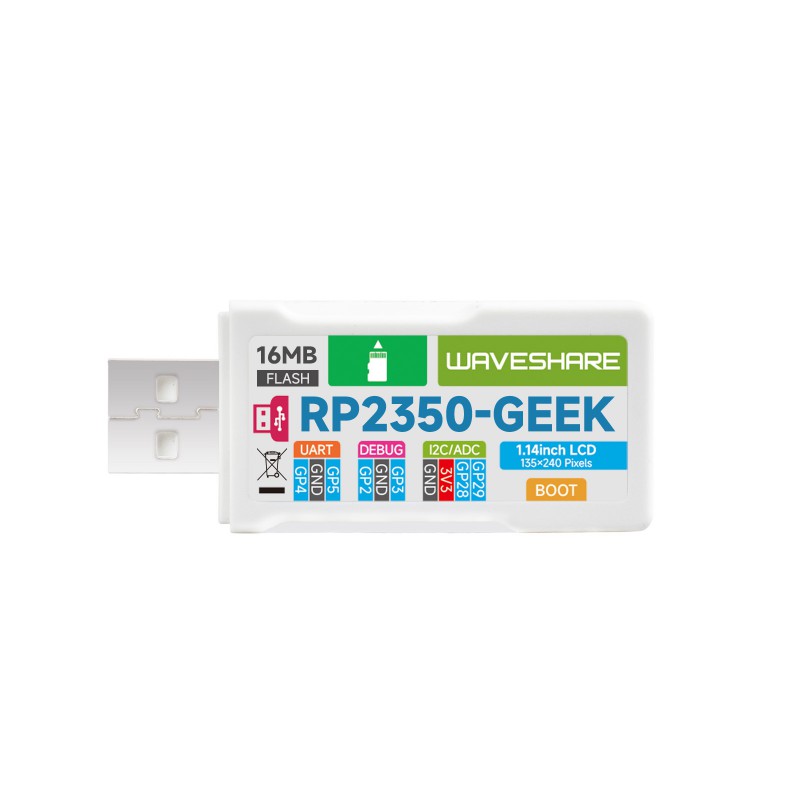

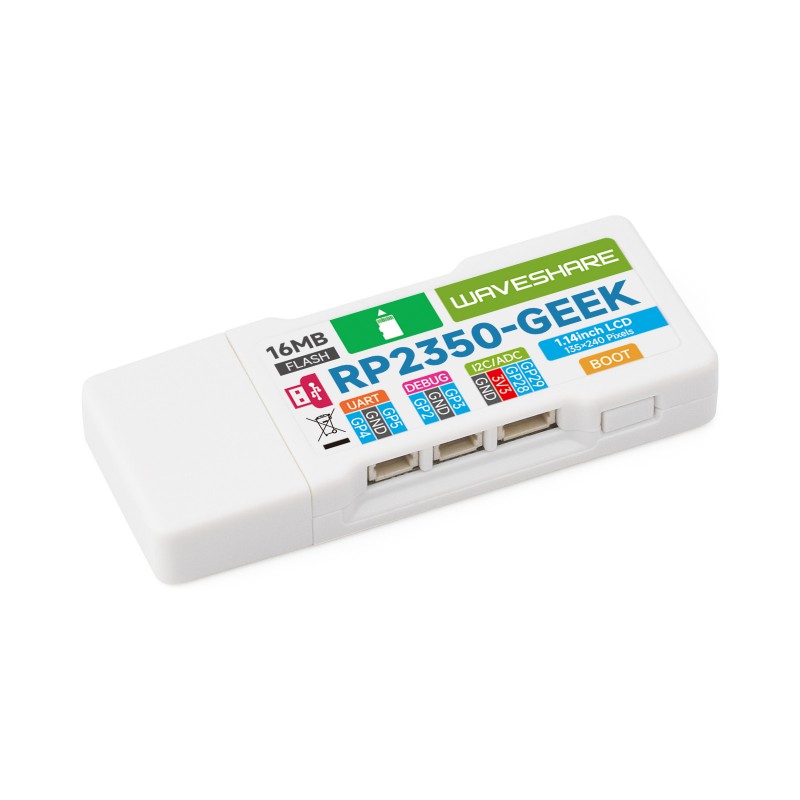

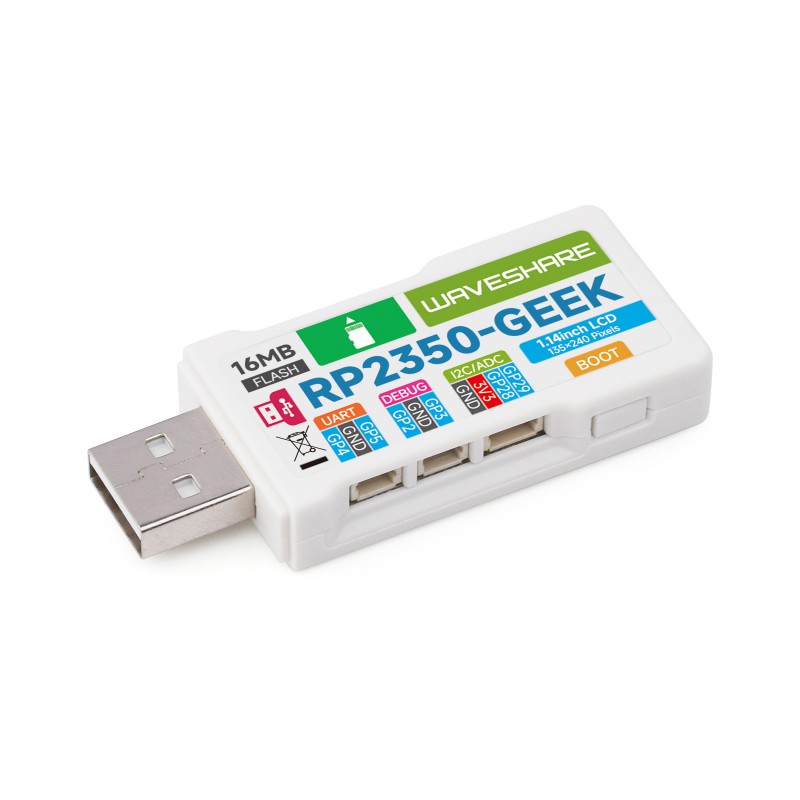

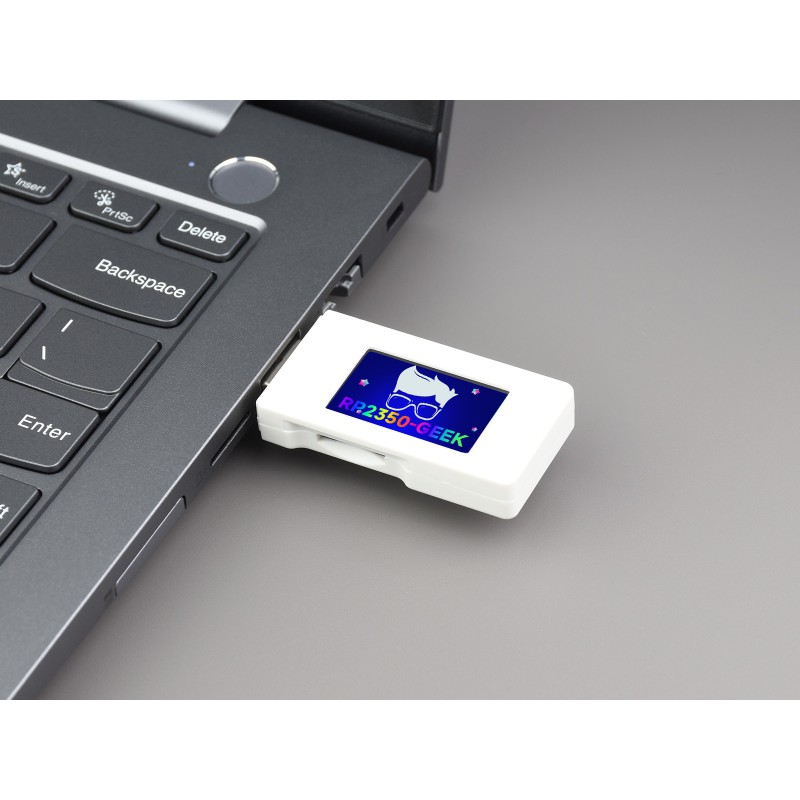

RP2350-GEEK is a development board in the form of a USB dongle with an LCD display, based on the Raspberry Pi RP2350 microcontroller. The board is designed for both development and debugging of embedded systems and functions as a combined USB debugger, programmer, and experimental platform. The integrated LCD display together with multiple interfaces makes it suitable for education, prototyping, and IoT projects.
The device connects directly via USB-A and can be used as a CMSIS-DAP compatible debug probe for Raspberry Pi and other ARM-based systems. At the same time, support for MicroPython and C/C++ enables rapid development of custom applications.

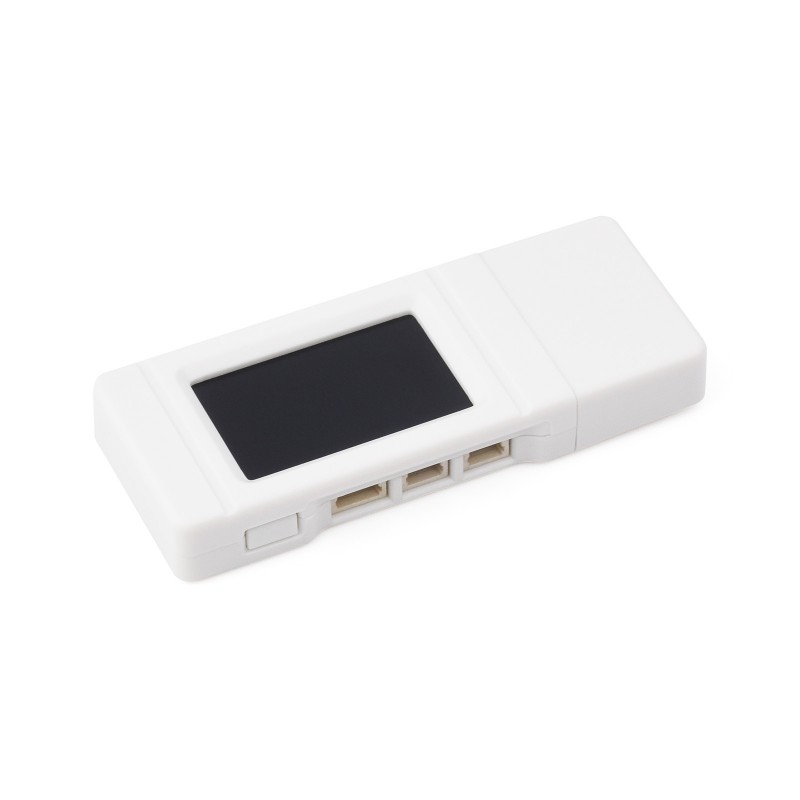

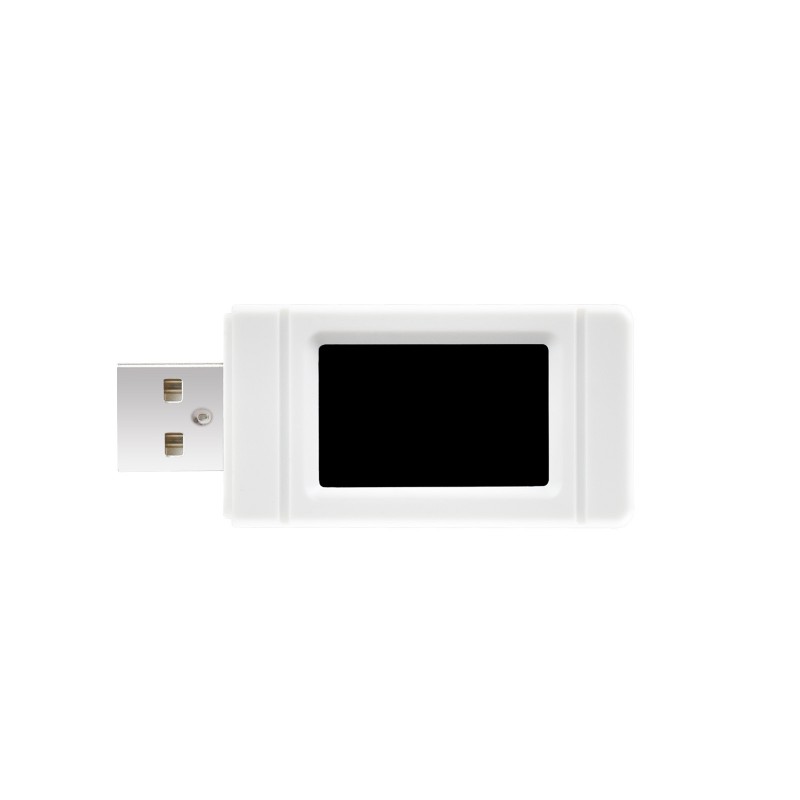

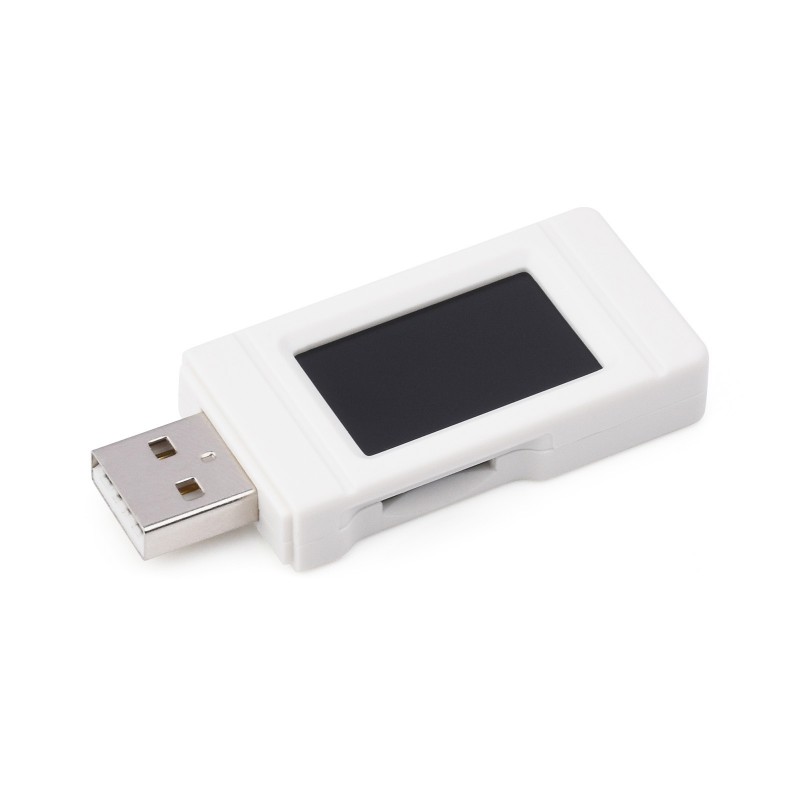

The built-in 1.14-inch IPS display allows system data or user interfaces to be shown directly on the device, while the microSD card slot provides expanded storage. The USB dongle is also equipped with multiple communication interfaces such as UART, I2C, and SWD, making it useful in various types of embedded projects.
Thanks to its compact design and USB dongle form factor, the RP2350-GEEK is easy to use and well suited for developers, students, and technicians who need a portable tool for programming, testing, and debugging microcontroller-based systems.

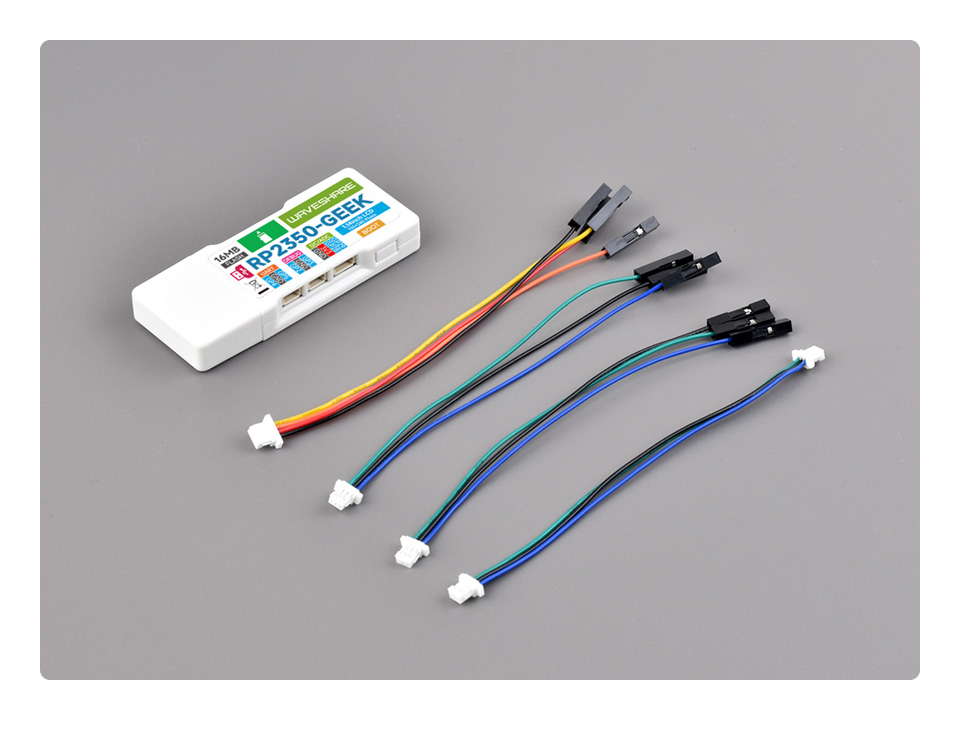

Supplied with four different connection cables with dupont female connectors.
Specifications:
- Microcontroller: Raspberry Pi RP2350A
- Processor: Dual-core ARM Cortex-M33 up to 150 MHz
- Internal RAM: 520 kB
- Flash memory: 16 MB
- Display: 1.14 inch IPS, 240 x 135 pixels, 65K colors

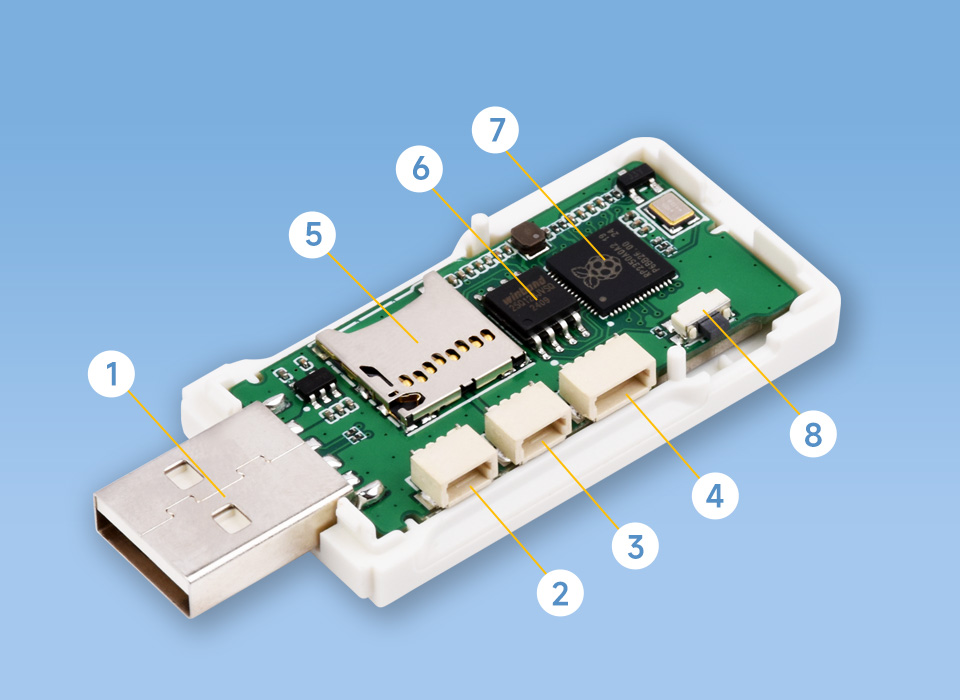

- Interfaces: USB-A, SWD (3-pin), UART, I2C
- Storage: microSD card slot (SDIO/SPI)
- Supply voltage: 5 V via USB
- Form factor: USB dongle with enclosure

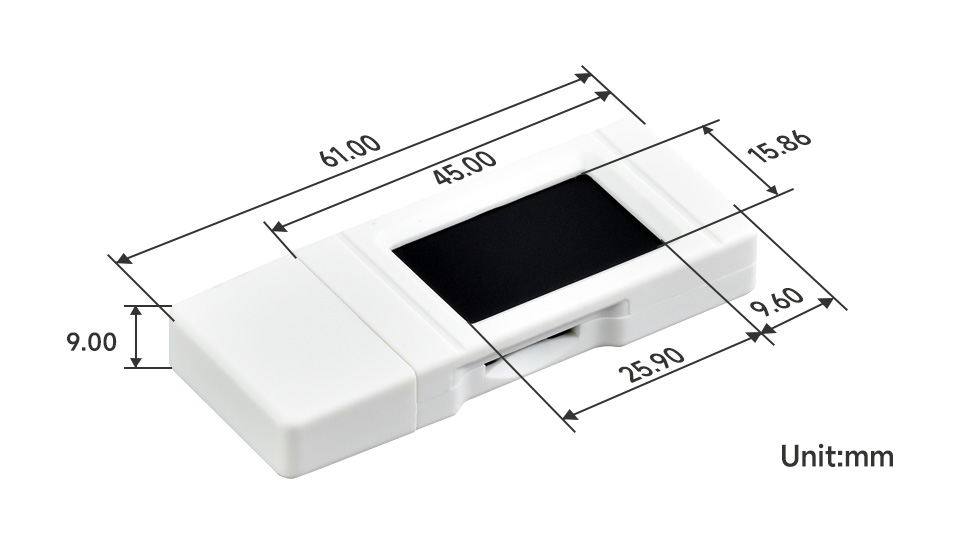

- Dimensions: 61 x 25 x 9 mm
