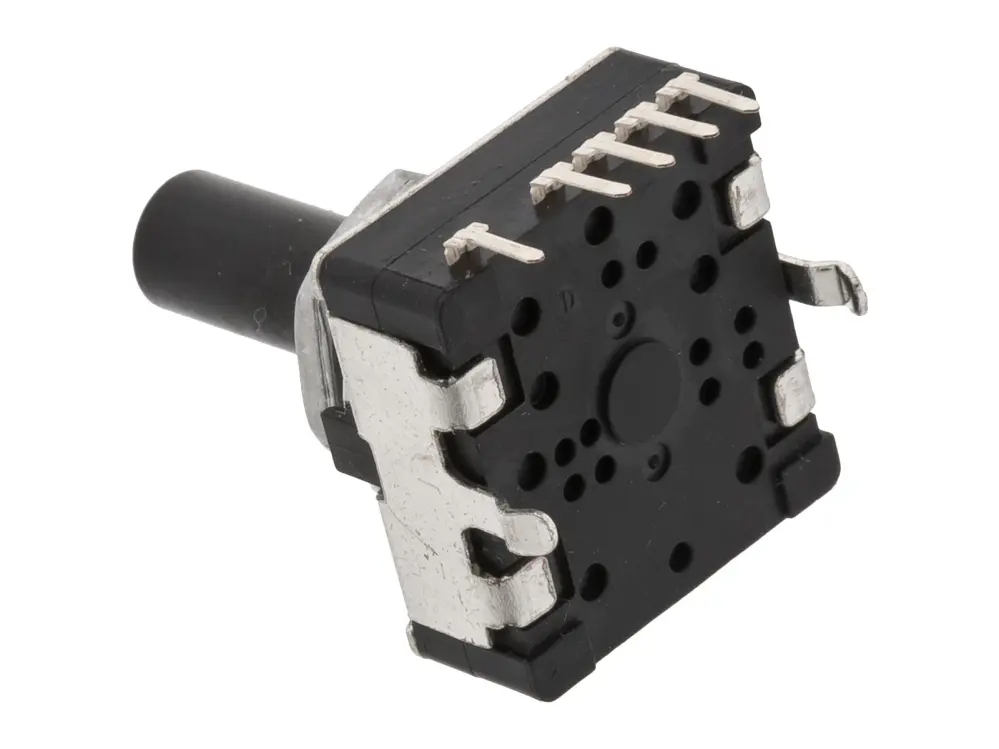

Rotary encoder absolute 4-bit @ electrokit (1 of 2)

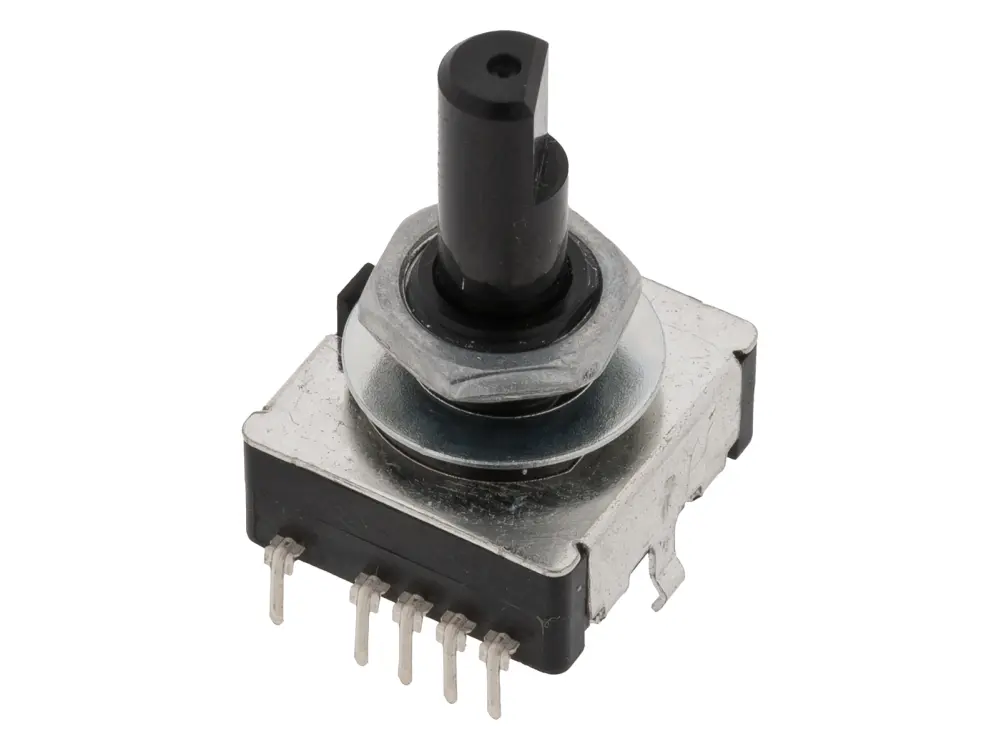

Rotary encoder absolute 4-bit @ electrokit (2 of 2)

1 / 2

Rotary encoder absolute 4-bit

Art no: 41023889

Bourns - PAC18R1-43D19F

59 SEK

Including 25% VAT

In stock, 24 pcs

Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

Product description

OpenClose

Absolute 4 bit, 16-step rotary decoder without end positions. High feel torque and click mode. Can be soldered directly to PCB and attached to chassis with supplied nut and washer. The position of the shaft is indicated in 16 steps with 4-bit resolution (4-bit grey code), see data sheet.

Specifications:

Series: PAC18R1
Type: Absolute
Shaft diameter: 6 mm, D-shaped
Shaft length: 19.5 mm
Rated current/voltage: 1 mA @ 10 VDC
Number of feedback pulses: 16
Mounting type: Vertical, panel mount
Connection: PCB (THT)
