Motion sensor mmWave 24GHz radar

Art no: 41022578 - Waveshare
Shop this product, Motion sensor mmWave 24GHz radar
price 48 SEK
Including 25% VAT
In stock, 35 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

HMMD-mmWave Sensor (Human Micro-Motion Detection). The HMMD-mmWave sensor is a radar-based sensor for detecting human micro-movements. It uses FMCW (Frequency Modulated Continuous Wave) technology. The sensor identifies moving, stationary, and motionless individuals. By combining radar signal processing with precise algorithms for human detection and distance measurement, it allows for individual adjustment of sensitivity in different zones, improving immunity to interference.

With low power consumption and simple integration, the sensor is suitable for a wide range of AIoT (Artificial Intelligence of Things) applications, such as smart homes, intelligent security systems, smart retail, and smart lighting.

Features:

  • Based on the AIoT mmWave sensor S3KM1110 with integrated high-performance 24 GHz antennas
  • Built-in microcontroller and algorithm for detecting human micro-movements, enabling accurate identification of motion, micro-movement, and stationary presence
  • UART communication protocol with support for configuration of detection range, sensitivity, and absence reporting delay
  • Supports UART and GPIO connection to Raspberry Pi, RP2040, Arduino, ESP32, and Jetson Nano
  • Can be mounted on wall or ceiling

Specifications:

  • Frequency range: 24.00–24.25 GHz
  • Bandwidth: 0.25 GHz
  • Modulation: FMCW
  • Supply voltage: 3.3 V

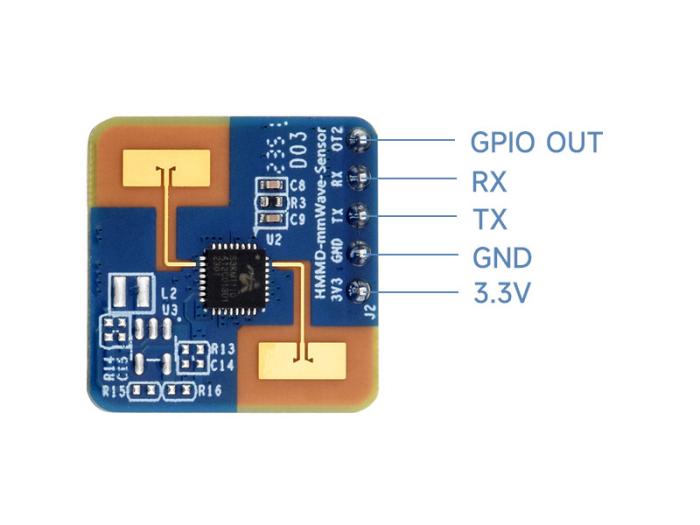

  • Output interface: UART and GPIO
  • UART baud rate: 115,200 bit/s (default)
  • Ambient temperature: - 40 to +85 °C
  • Dimensions: 20 x 20 mm

System Performance:

- Detection range (wall-mounted):

  • Moving human target: up to 10 m
  • Human micro-movement: up to 6 m

- Detection range (ceiling-mounted):

  • Moving human target: up to 5 m
  • Human micro-movement: up to 4 m

- Detection angle: ±60°
- Detection accuracy: 0.15 m (for moving target within 10 m radius from the sensor)
- Power consumption: 50 mA
- Data update rate: 100 ms

External links

Product information

  • SKU:

    41022578
