Red laser module 650 nm
Art no: 41022689
Whadda - WPM434
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description

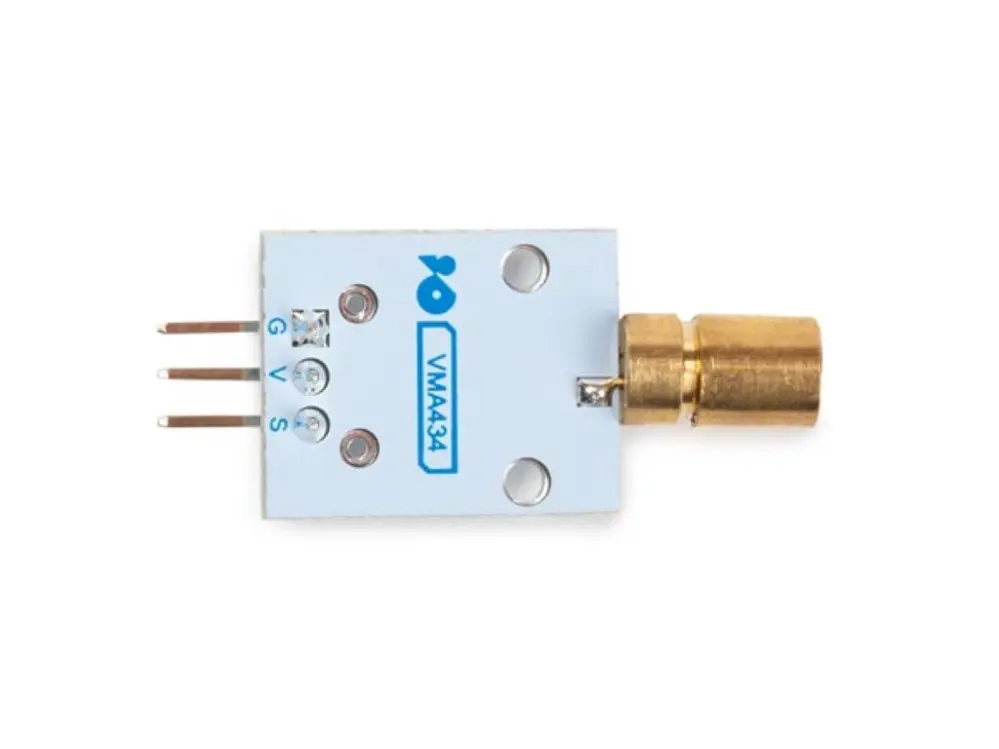

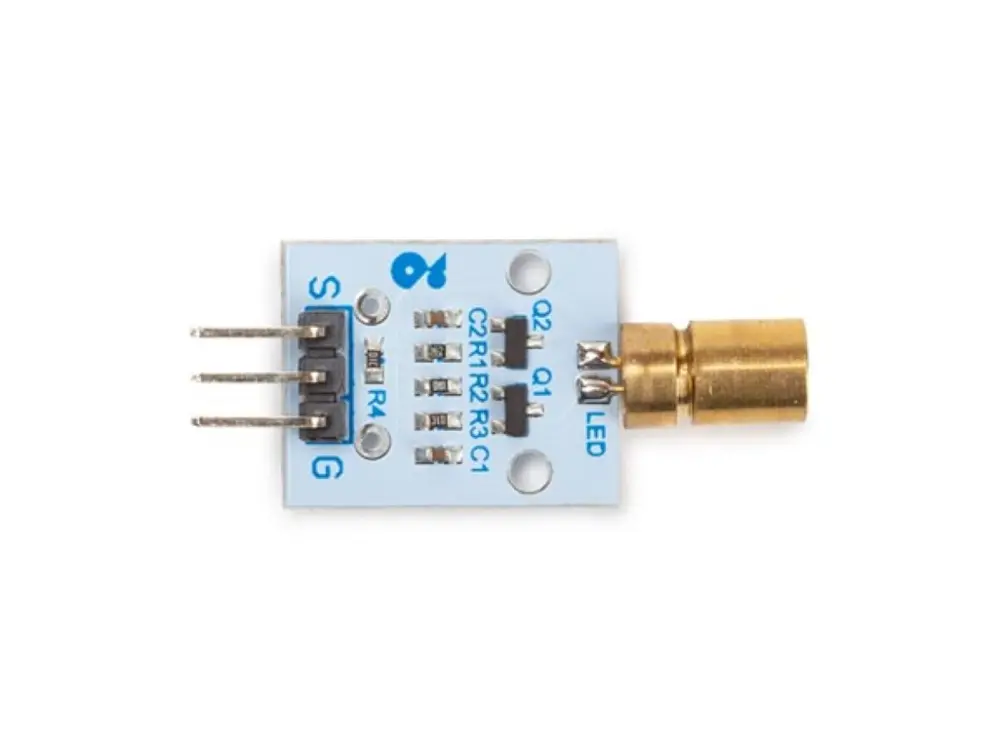

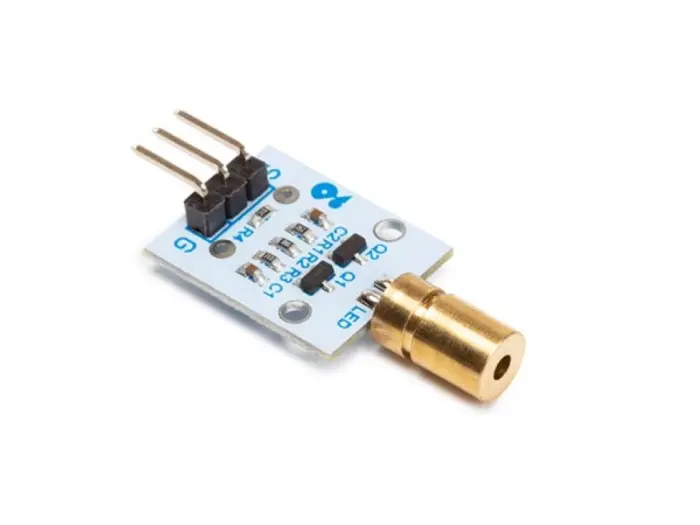

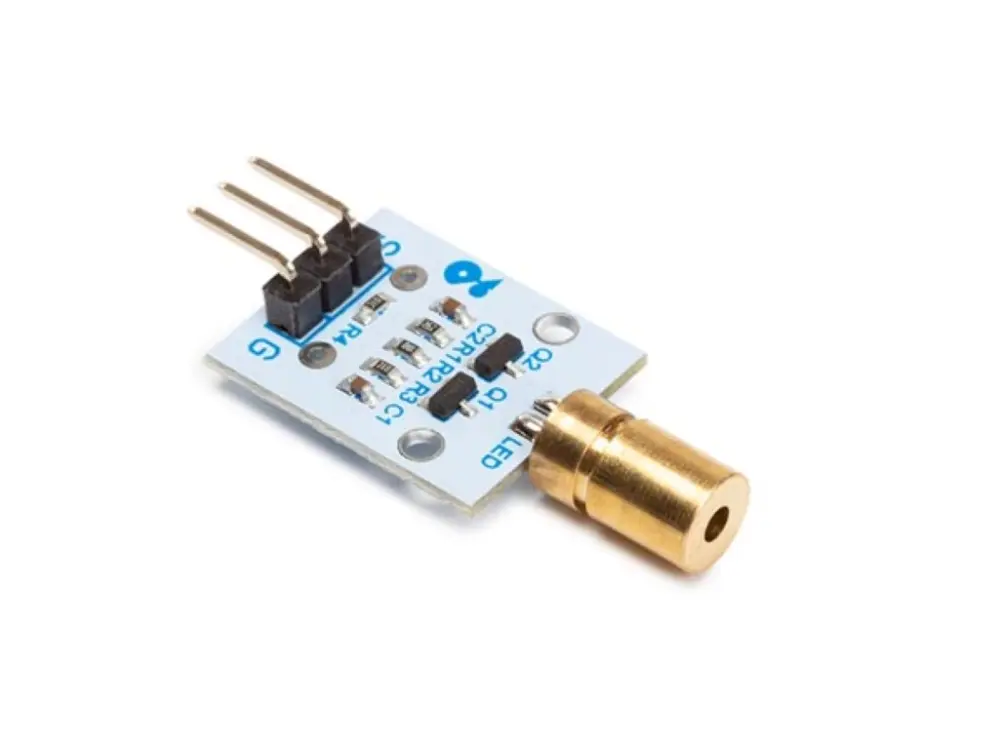

Laser module with a narrow red light beam. The module is suitable in Arduino and Raspberry Pi projects. Frequently used in laser pointers, distance measurement, light shows, etc. Given the intensity of the beam, it is important to avoid direct contact with the eyes to prevent injury. Connections: G = minus (-), V = plus (+), S = signal (+5V or 0V).
Specifications:
- Wavelength: 650 nm (red)
- Class: 2 (licence free class)
- Maximum output power: 1 mW
- Drive voltage: 5 VDC
- Current (operation): 15 mA
- Dimensions short: 15x18.5 mm
- Weight: 8 g
Product information
SKU:
41022689MPN:
WPM434EAN / GTIN:
5410329725501
