Product description

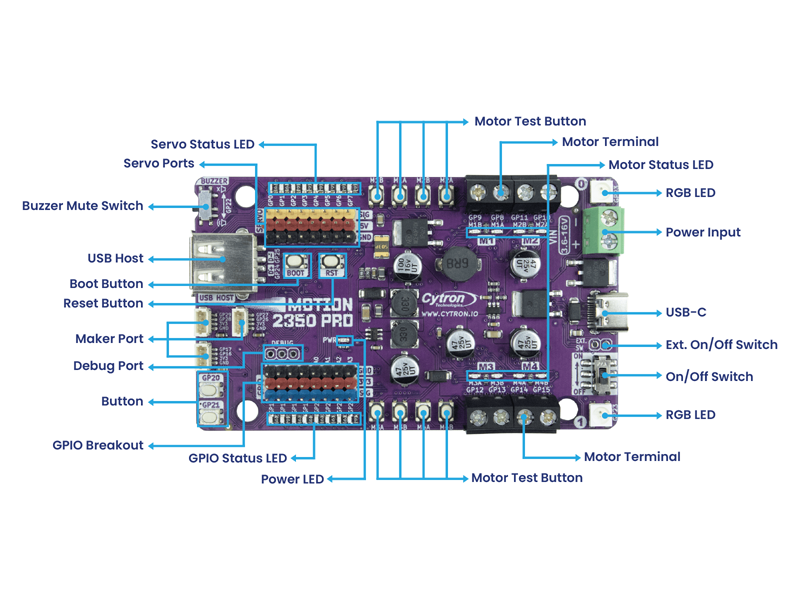

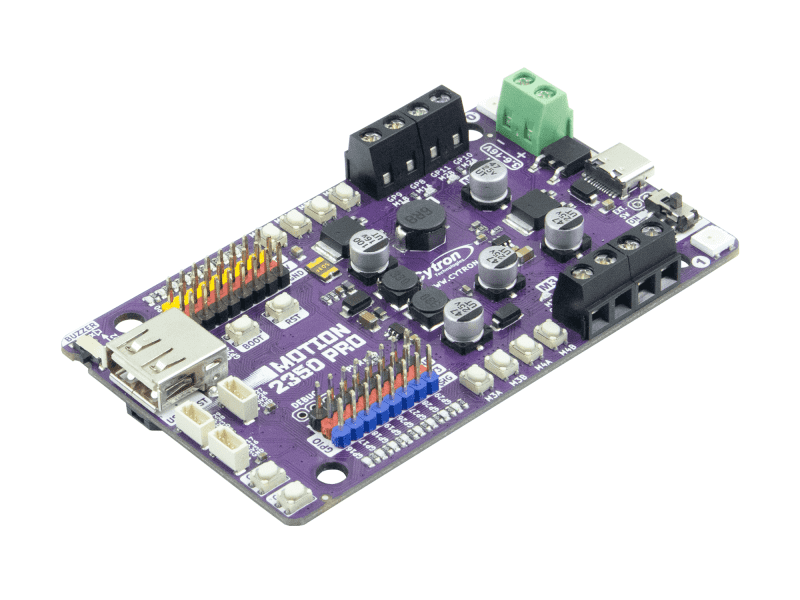

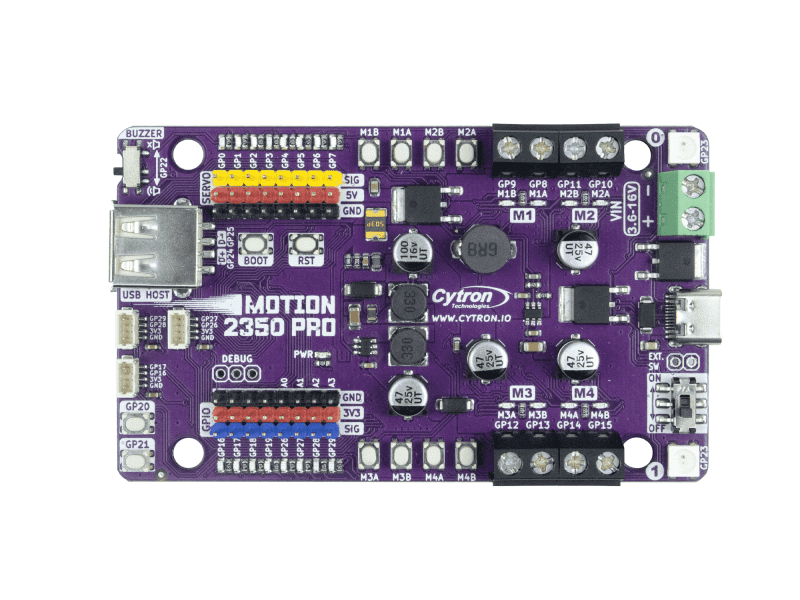

Robotics controller board based on the Raspberry Pi RP2350 with integrated motor outputs, servo connectors and GPIO ports for robotics and automation projects. MOTION 2350 Pro is designed for both beginners and advanced users who want to build robots and control systems with support for CircuitPython, MicroPython, C/C++ and Arduino IDE. The board features integrated motor drivers, USB host support for joystick or gamepad, and several functions for rapid testing and troubleshooting.
Specifications:
- Processor: Raspberry Pi RP2350
- CPU: Dual-core Arm Cortex-M33
- Clock frequency: 150MHz
- RAM: 520KB
- Flash memory: 2MB
- Motor outputs: 4 x DC motor
- Servo outputs: 8

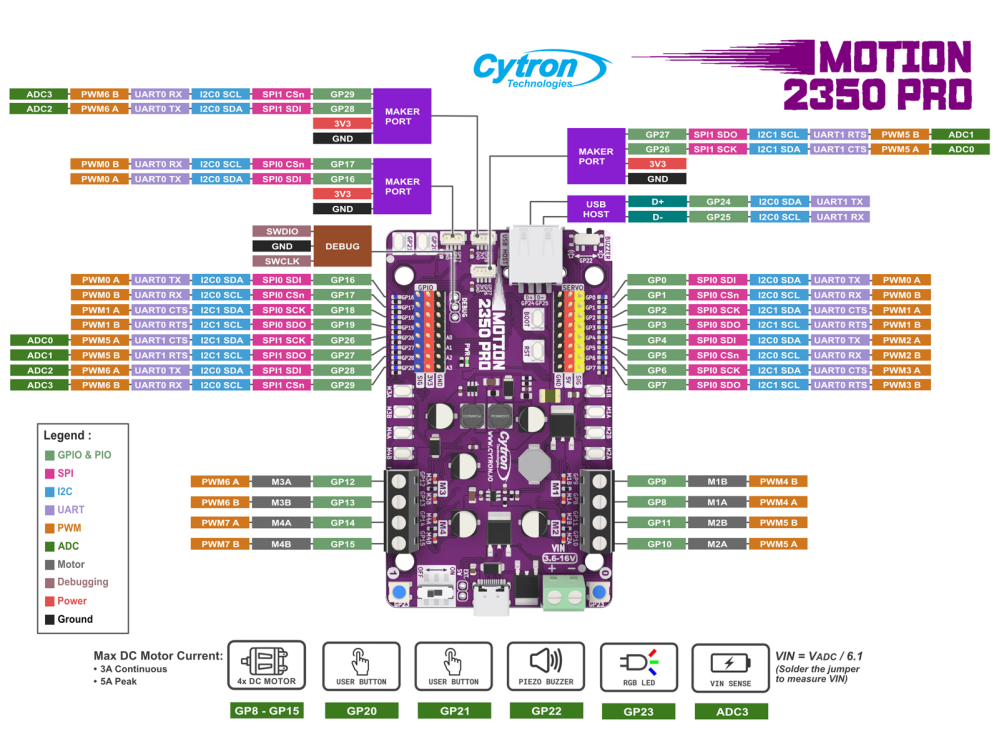

- GPIO ports: 8 x 3.3V breakout
- Supply voltage via VIN: 3.6V to 16V
- Supply voltage via USB-C: 5V
- Current (max) per motor channel: Continuous: 5A, Peak: 10A
- USB host: Yes
- RGB LED: 2 x Neopixel compatible
- Maker ports: 3 (Qwiic)
- Status indication: 24 x LED
- Buttons: 8 x motor test buttons, 2 x user buttons, 1 x BOOT, 1 x RESET
- Buzzer: Piezo with mute switch
- Programming languages: CircuitPython, MicroPython, C/C++, Arduino
- Connection: USB-C

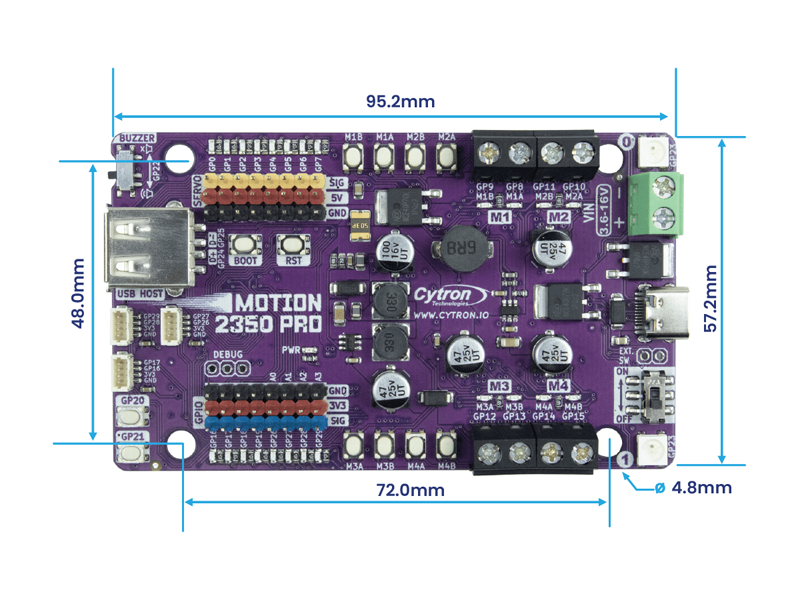

- Dimensions: 95.2 x 57.2 x 8mm

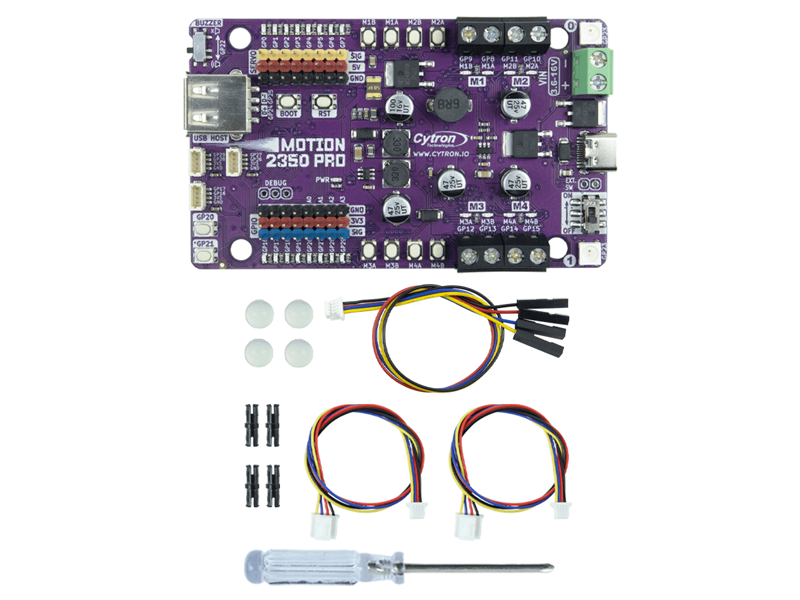

- Included: Qwiic JST-SH cable, 2 x Grove to JST-SH cables, silicone feet, building block pins, mini screwdriver
Note: The board comes preloaded with CircuitPython and demonstration programs.
