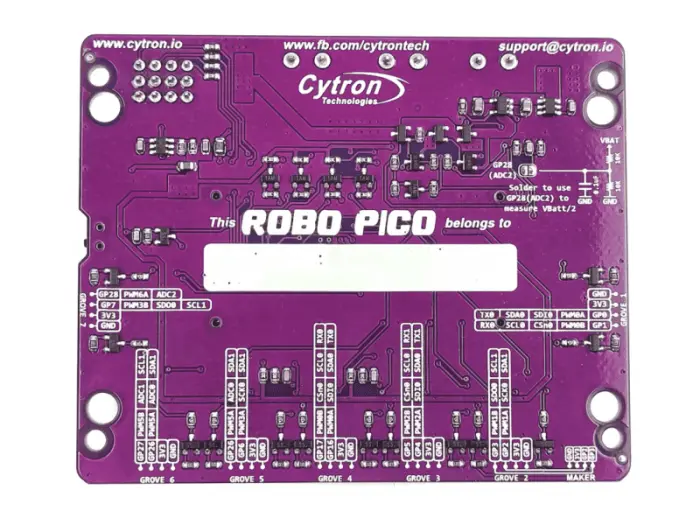

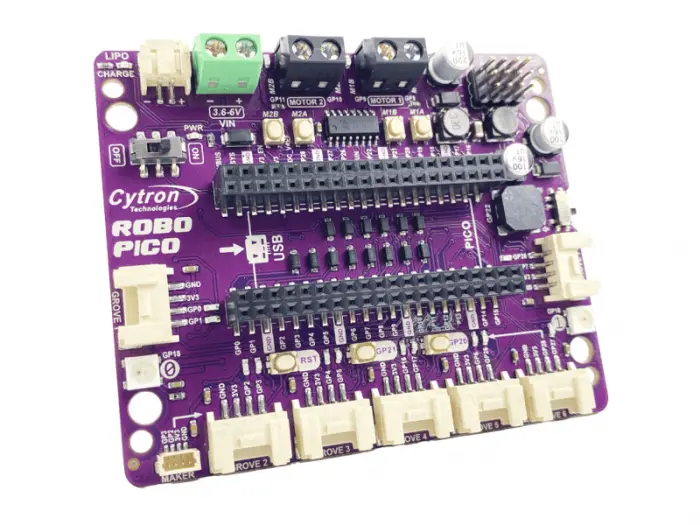

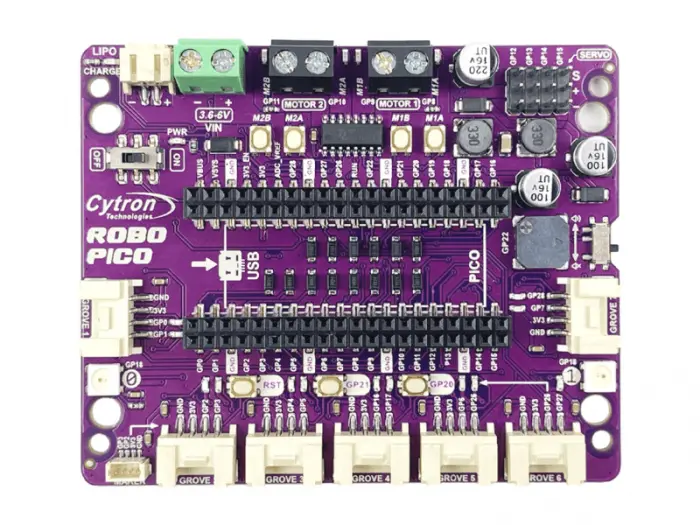

Robo Pico - Robot controller board for Pico

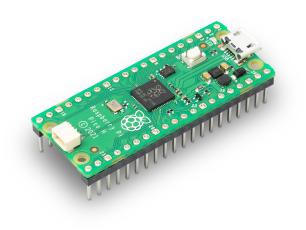

Complete controller board for small robotics projects. The board has a socket for Raspberry Pi Pico, two DC-motor drivers and many Grove connectors for connecting external modules and sensors.

* Automatic power selection: USB 5V, LiPo (1-cell) or Vin (3.6-6V)
* Built-in 1-cell LiPo/Li-Ion charger (over-charged & over-discharged protection)
* Power on/off switch with status LED
* 1x Reset Button
* 7x Grove Ports (flexible I/O options: digital, analog, I2C, SPI, UART...)
* 1x Maker Port (JST-SH 4-Ways Connector)

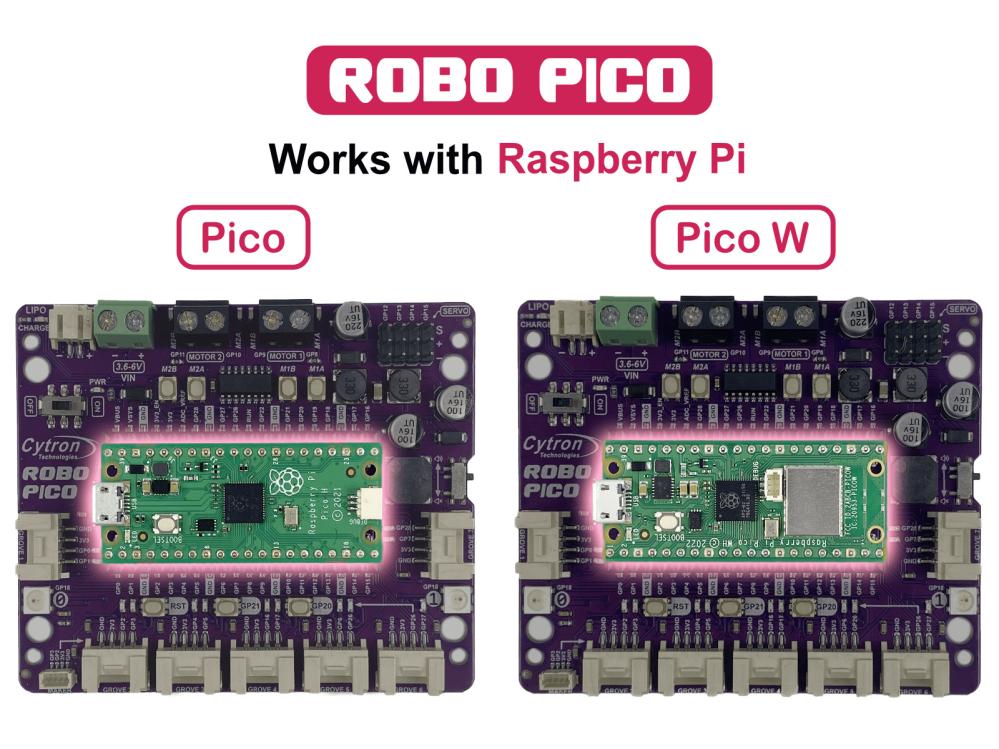

* GPIO Breakout for Raspberry Pi Pico/Pico W
* 13x Status indicator LEDs for GPIO pins
* 2x RGB LED (Neopixel)
* 2x Programmable Button
* 1x Piezo Buzzer with Buzzer Mute Switch

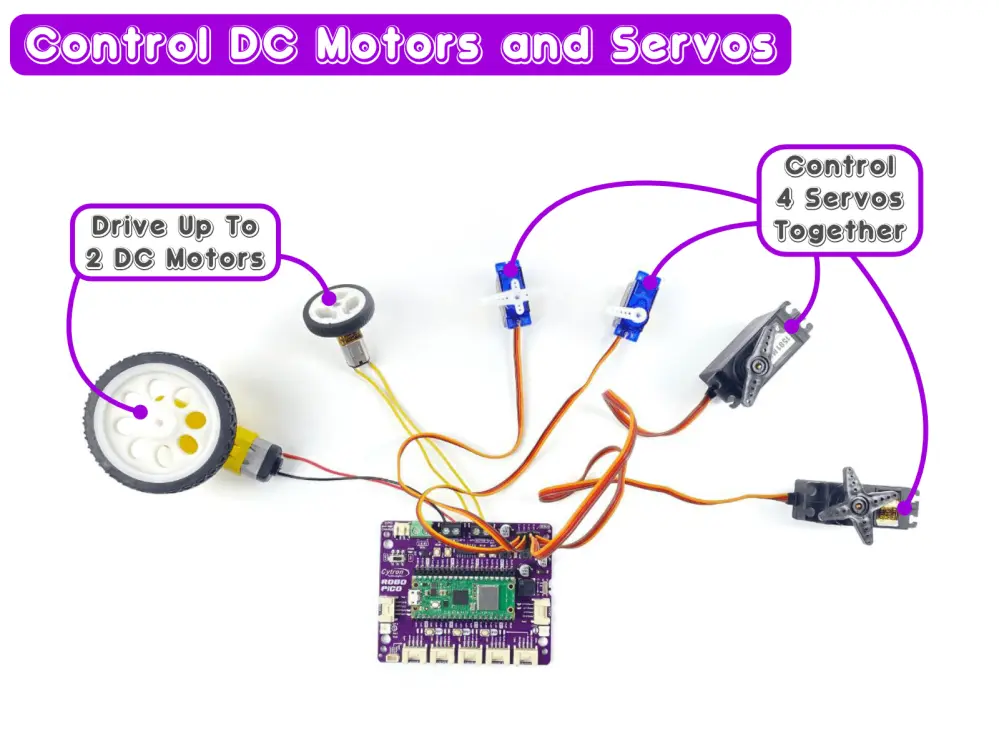

* 2x DC Motor Terminals
* 2x Motor Status LEDs for each Motor Terminal
* 2x Motor Test Buttons for each Motor Terminal
* Mounting holes
* 4x 4.8mm mounting hole
* 4x M3 screw hole
