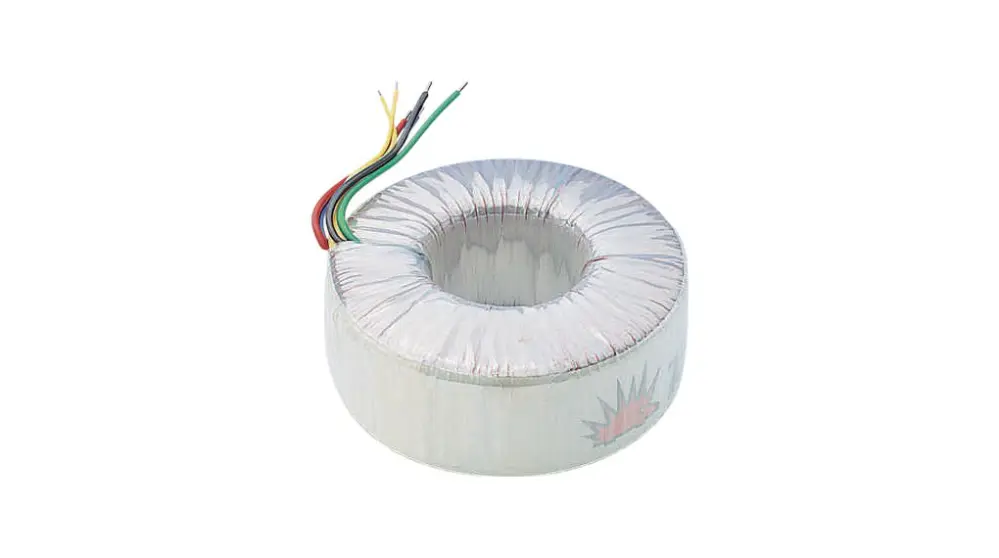

Toroid Transformer 80VA 2 x 12V / 2 x 3.33A
Art no: 41000226
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
Toroidal transformer with two separate secondary windings that can be connected in series for a bipolar output (eg. ±12V) or to get a twice as high voltage.
The windings can also be connected in parallel to double the current output.
The transformer mounts to a chassis with bolt and washer. Metal washer and neoprene washer are included.
* Primary: 230VAC / 50Hz
* Secondary: 2 x 12V / 2 x 3.33A
* Connections: 200mm
* Insulation: Class A, 105°C / 500VDC
* Weight: 1Kg
* Dimensions: ø92 x 38mm
* Mounting: M6 x 45mm (metal washer: ø70mm, rubber washer: ø70mm)
The windings can also be connected in parallel to double the current output.
The transformer mounts to a chassis with bolt and washer. Metal washer and neoprene washer are included.
* Primary: 230VAC / 50Hz
* Secondary: 2 x 12V / 2 x 3.33A
* Connections: 200mm
* Insulation: Class A, 105°C / 500VDC
* Weight: 1Kg
* Dimensions: ø92 x 38mm
* Mounting: M6 x 45mm (metal washer: ø70mm, rubber washer: ø70mm)
Technical data
| Attribute | Value |
|---|---|
|
Output
|
2x
|
|
Power
|
80 W
|
|
Primary-voltage
|
230 V
|
|
Secondary-voltage
|
12 V
|
SKU:
41000226
