Product description

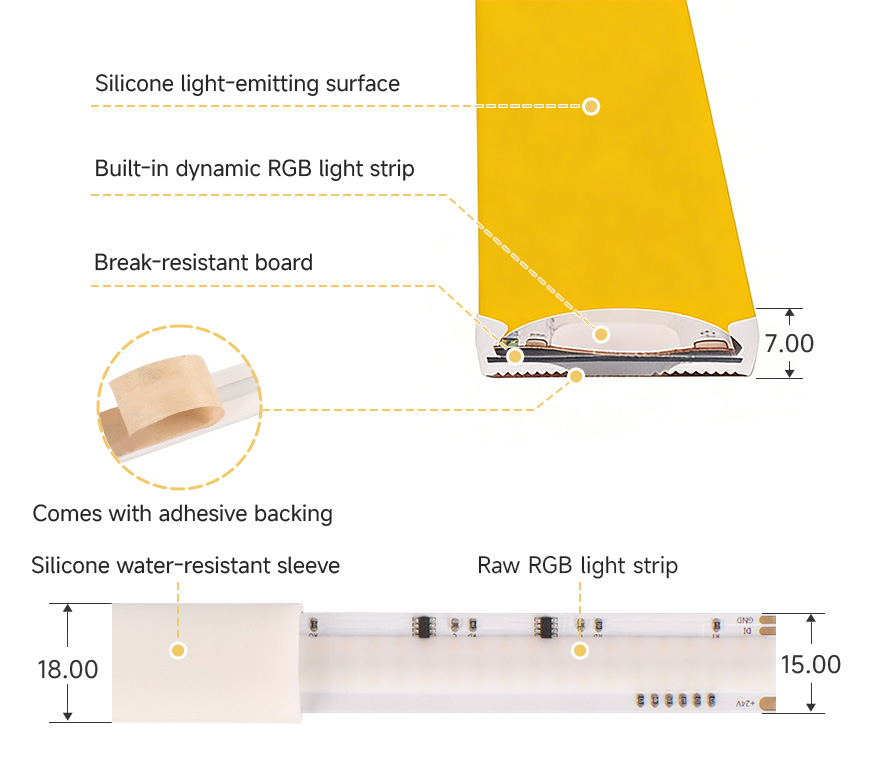

Programmable RGBWC COB LED strip with built-in WS2812B driver ICs. The high LED density of 1428 LEDs per meter provides smooth, uniform illumination with no visible light spots. RGBWC combines individually addressable RGB colors with separate cool white and warm white LEDs, making it possible to create both decorative lighting effects and natural white light. The LED strip operates from 24 VDC and is suitable for lighting in homes, retail displays, showcases, and other installations. The IP65 rating protects against dust and water. Note that cutting the LED strip breaks the IP65 protection. To restore the IP65 rating after cutting, the exposed end must be resealed, for example with silicone adhesive.
Specifications:
- LED type: COB with WS2812B
- Color: RGB + Cool White + Warm White (RGBWC)
- NeoPixel compatible: Yes

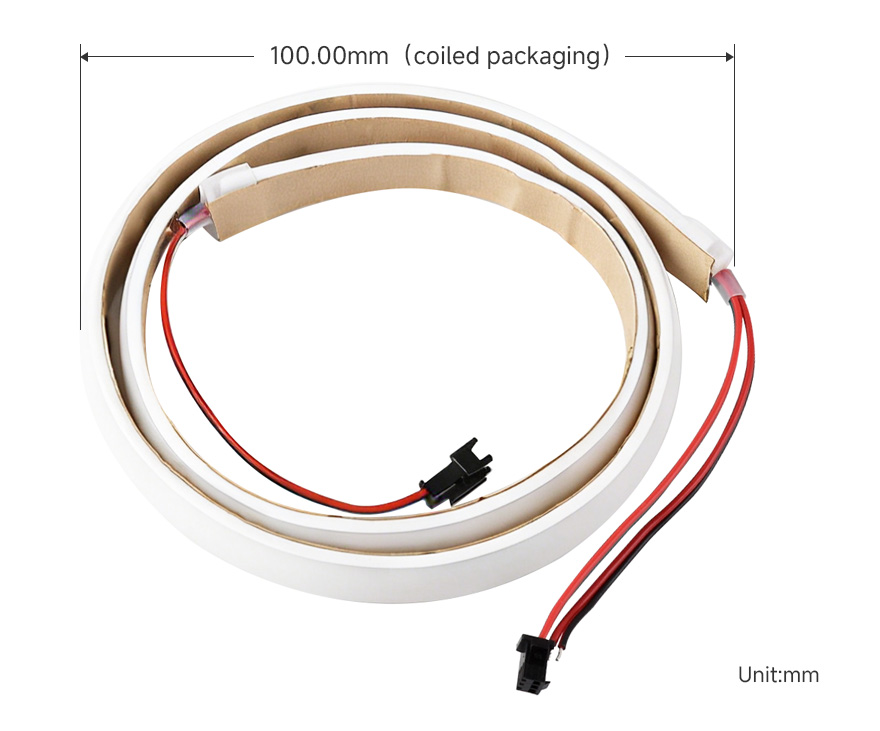

- Length: 1 m

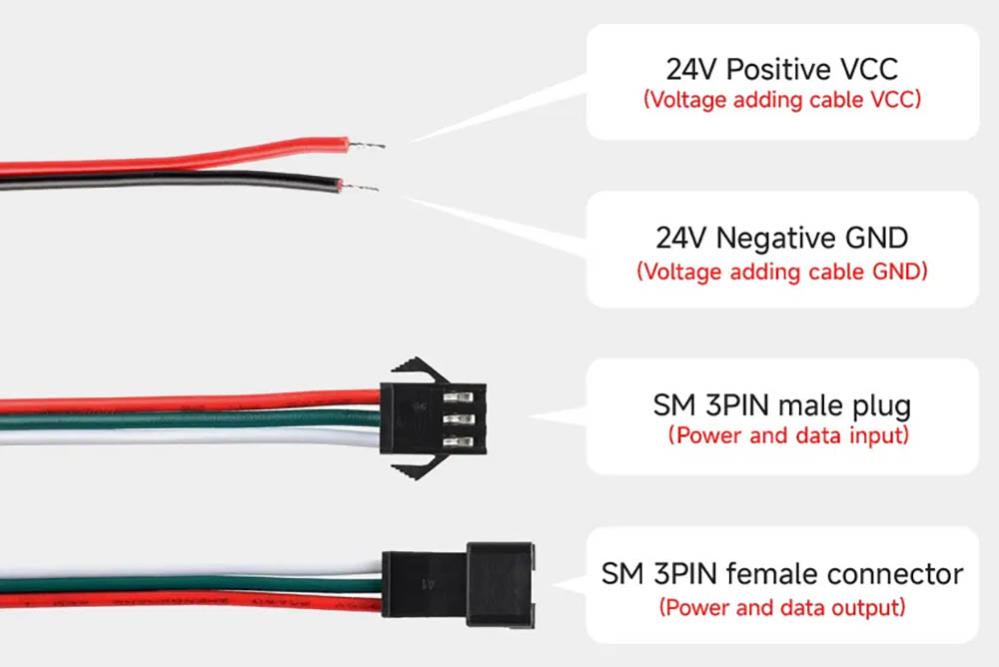

- Supply voltage: 24 VDC
- Power: 26 W/m
- Current: 1.08 A/m

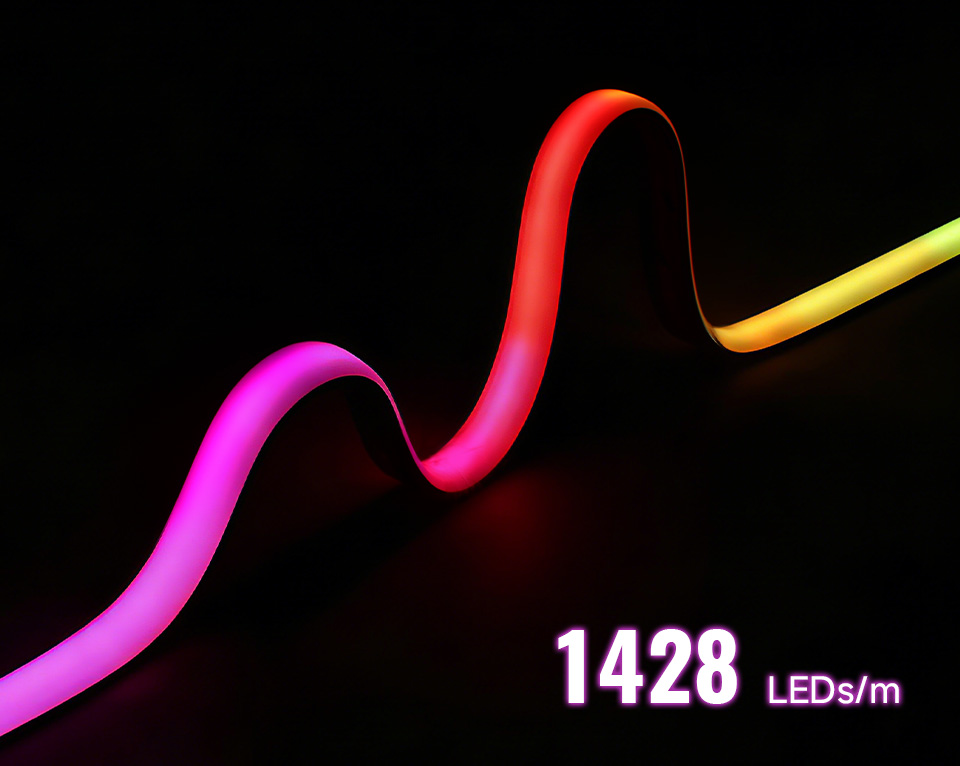

- LED density: 1428 LEDs/m
- Control: 12 individually addressable segments/m (83.3 mm/segment)
- Colors: 16.7 million (256 levels per channel)
- Data format: 40 bits/pixel (RGB + Cool White + Warm White)
- Signal: WS2812B-compatible, single-wire serial
- IP rating: IP65
- Beam angle: 120°
- Width: 15 mm
- Cutting interval: 83.3 mm
