RG213 50 ohm ø10.3mm MIL-C-17F

Art no: 40110213
Siva Italy - RG213U
Shop this product, RG213 50 ohm ø10.3mm MIL-C-17F
price 60 SEK
Including 25% VAT

Mängdrabatt:
1m = 60:-10m = 540:-25m = 1275:-

Quantity discount
QuantityPrice
1 till 9
60 SEK
10 till 24
54 SEK
25 till
51 SEK
In stock, 29 m
Unit : Meter

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

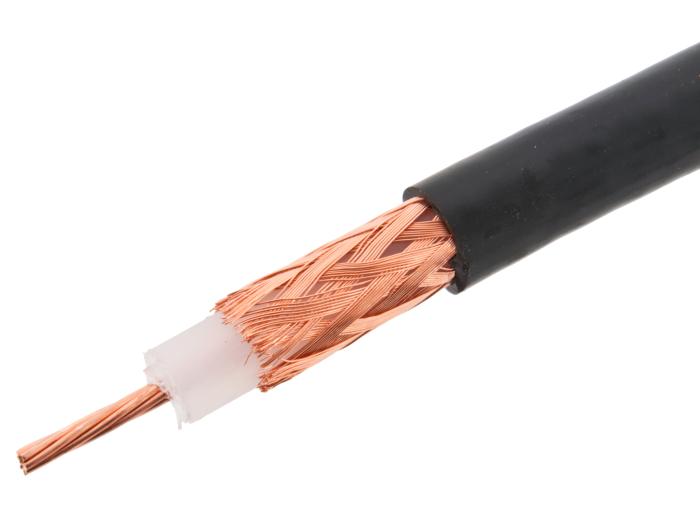

Rg-213 is a coaxial cable with braided copper (Cu) shielding and multi-strand copper (Cu) core.

Specifications:

  • Structure of inner conductor: 7×0.75 mm
  • Outer diameter: 10.3 mm
  • Sheath: Black LD-PE
  • Temperature range: -30 to +70 °C
  • Impedance: 50 ohms
  • Capacitance: 100 pF/m
  • Wave velocity: 0.66
  • Manufacturer: Siva, Italy
  • Model: RG 213 U

Attenuation (dB/100 m):

  • at 5 MHz: 1.2 dB
  • at 10 MHz: 1.8 dB
  • at 50 MHz: 4.3 dB
  • at 100 MHz: 6.4 dB
  • at 200 MHz: 9.5 dB
  • at 400 MHz: 13.7 dB

Technical data

Technical data/attributes for this product
Attribute Value
Color
Svart
Conductors
2
Outer-diameter
10.3
Rohs
RoHS-kompatibel
Sheath-material
PE
Shielded
Ja
Strands
Flertrådig
Temperature
-30/+70 °C
  • SKU:

    40110213
  • MPN:

    Siva Italy - RG213U
