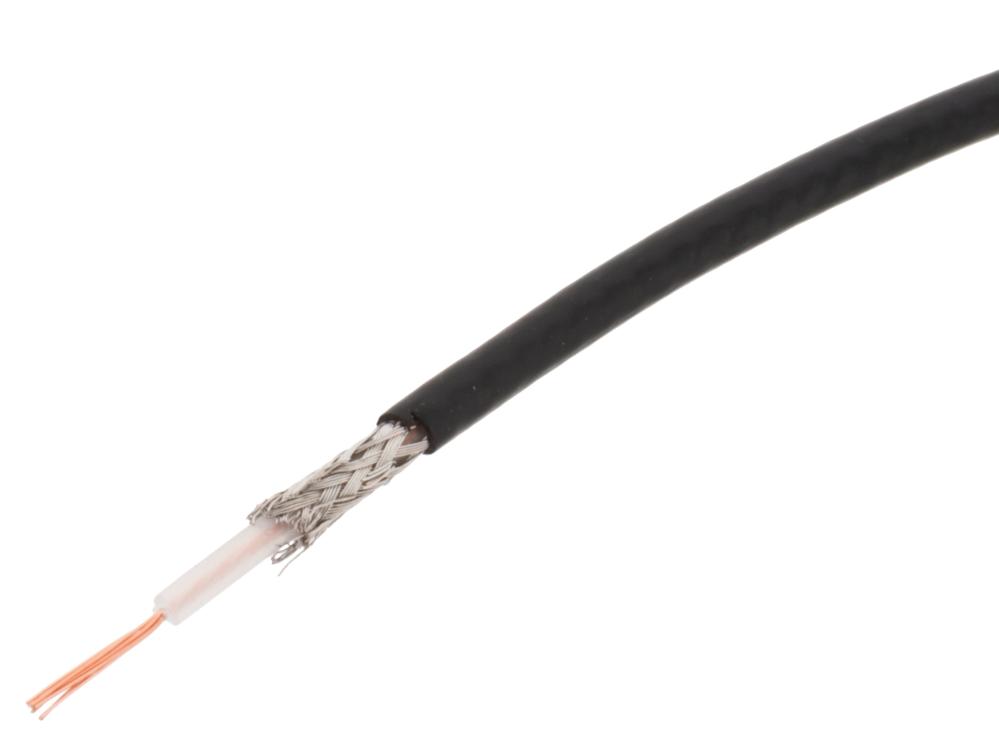

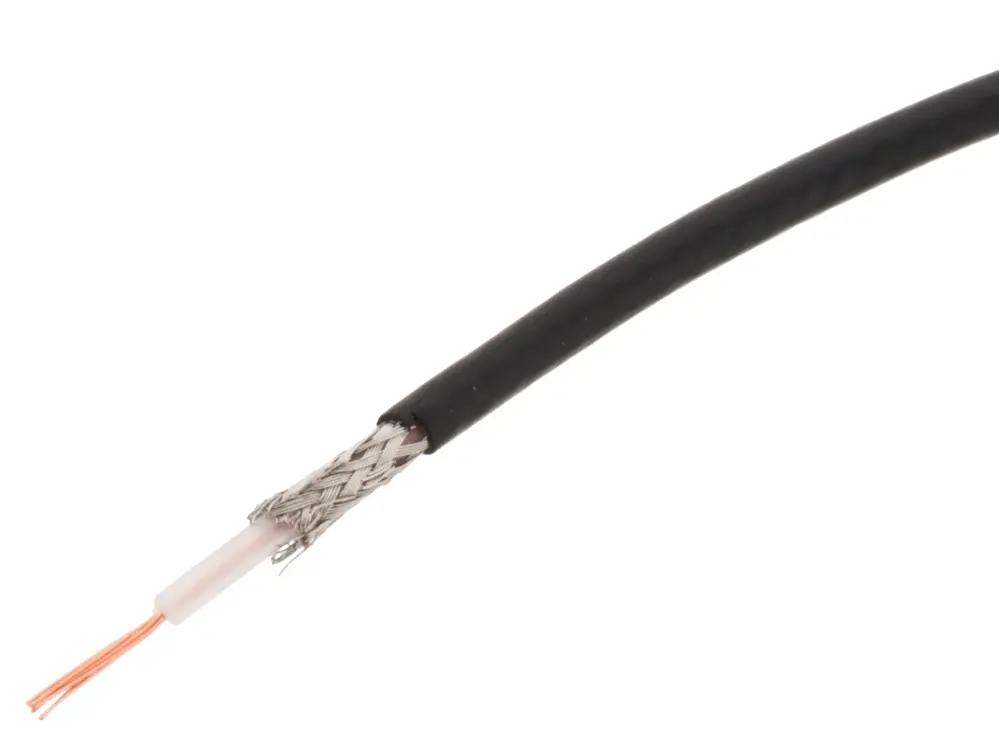

RG174 50 ohm ø2.7 mm MIL-C-17

Art no: 40110174
Technokabel - YWL50-0.45/1.3-B
Shop this product, RG174 50 ohm ø2.7 mm MIL-C-17
price 9.50 SEK
Including 25% VAT

Mängdrabatt:
1m = 9:505m = 42:7510m = 80:50

Quantity discount
QuantityPrice
1 till 4
9.50 SEK
5 till 9
8.55 SEK
10 till 24
8.05 SEK
25 till
7.60 SEK
In stock, 135 m
Unit : Meter

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

Coaxial cable with braided copper core and multicore copper (Cu) center conductor.

Specifications:

  • Structure of inner conductor: 7×0.15 mm
  • Outer diameter: 2.7 mm
  • Sheath: Black PVC
  • Temperature range: -20 to +70 °C
  • Minimum bending radius: 15 mm
  • Impedance: 50 ohms
  • Capacitance (@ 1kHz): 97.8 pF/m
  • Wave velocity: 0.66
  • Manufacture: Technokabel
  • Model: YWL50-0.45/1.3-BK

Attenuation (dB/100 m):

  • at 50 MHz: 21.3 dB
  • at 100 MHz: 30.4 dB
  • at 200 MHz: 43.1 dB
  • at 800 MHz: 90.0 dB
  • at 1000 MHz: 101.7 dB

Technical data

Technical data/attributes for this product
Attribute Value
Awg
24
Color
Svart
Conductor-area
0.2
Conductors
2
Outer-diameter
2.6
Rohs
RoHS-kompatibel
Sheath-material
PVC
Shielded
Ja
Strands
Flertrådig
  • SKU:

    40110174
  • MPN:

    Technokabel - YWL50-0.45/1.3-B
