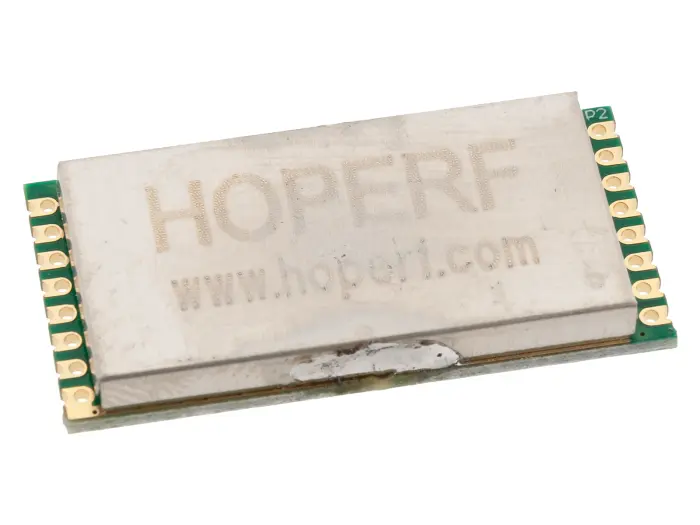

LoRa-Transceiver 433MHz RFM98PW-433S2
Art no: 41020320
HOPERF - RFM98PW 433S2
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
RFM98PW module design is based on the high performance LoRaTM modulation technique RF98 chip. It operates at 433MHz ISM band. The low receive sensitivity (-136dBm) coupled with enhanced +30dBm output power ensures extended range and improved link performance.
* LoRaTM Modem.
* 166dB maximum link budget.
* +30 dBm output power @433MHz band
* Programmable bit rate up to 300 kbps.
* High sensitivity: down to -136dBm.
* Low RX current of 13mA.
* FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
* Built-in bit synchronizer for clock recovery.
* Automatic RF Sense and CAD with ultra-fast AFC.
* Packet engine up to 256 bytes with CRC.
* Built-in temperature sensor and low battery indicator.
* SMD Package (35.4x18X3.85mm)
* LoRaTM Modem.
* 166dB maximum link budget.
* +30 dBm output power @433MHz band
* Programmable bit rate up to 300 kbps.
* High sensitivity: down to -136dBm.
* Low RX current of 13mA.
* FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
* Built-in bit synchronizer for clock recovery.
* Automatic RF Sense and CAD with ultra-fast AFC.
* Packet engine up to 256 bytes with CRC.
* Built-in temperature sensor and low battery indicator.
* SMD Package (35.4x18X3.85mm)
Documents
Product information
SKU:
41020320MPN:
HOPERF - RFM98PW 433S2
