Product description

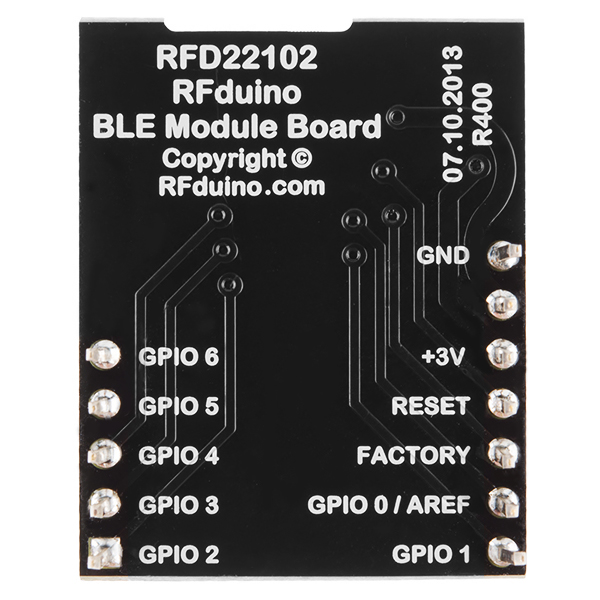

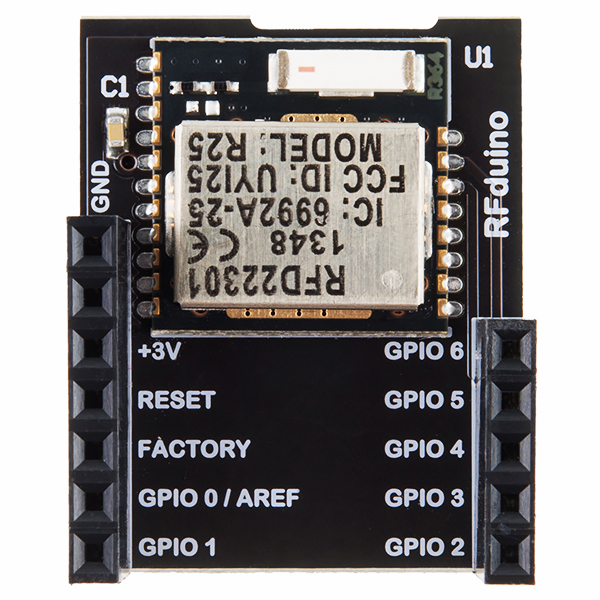

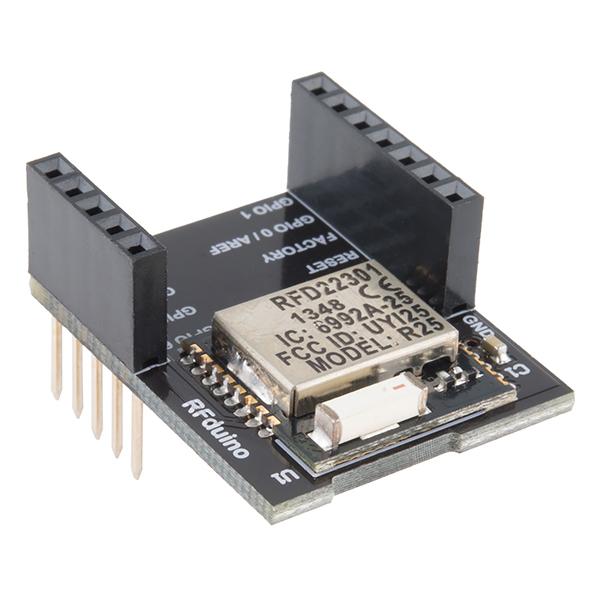

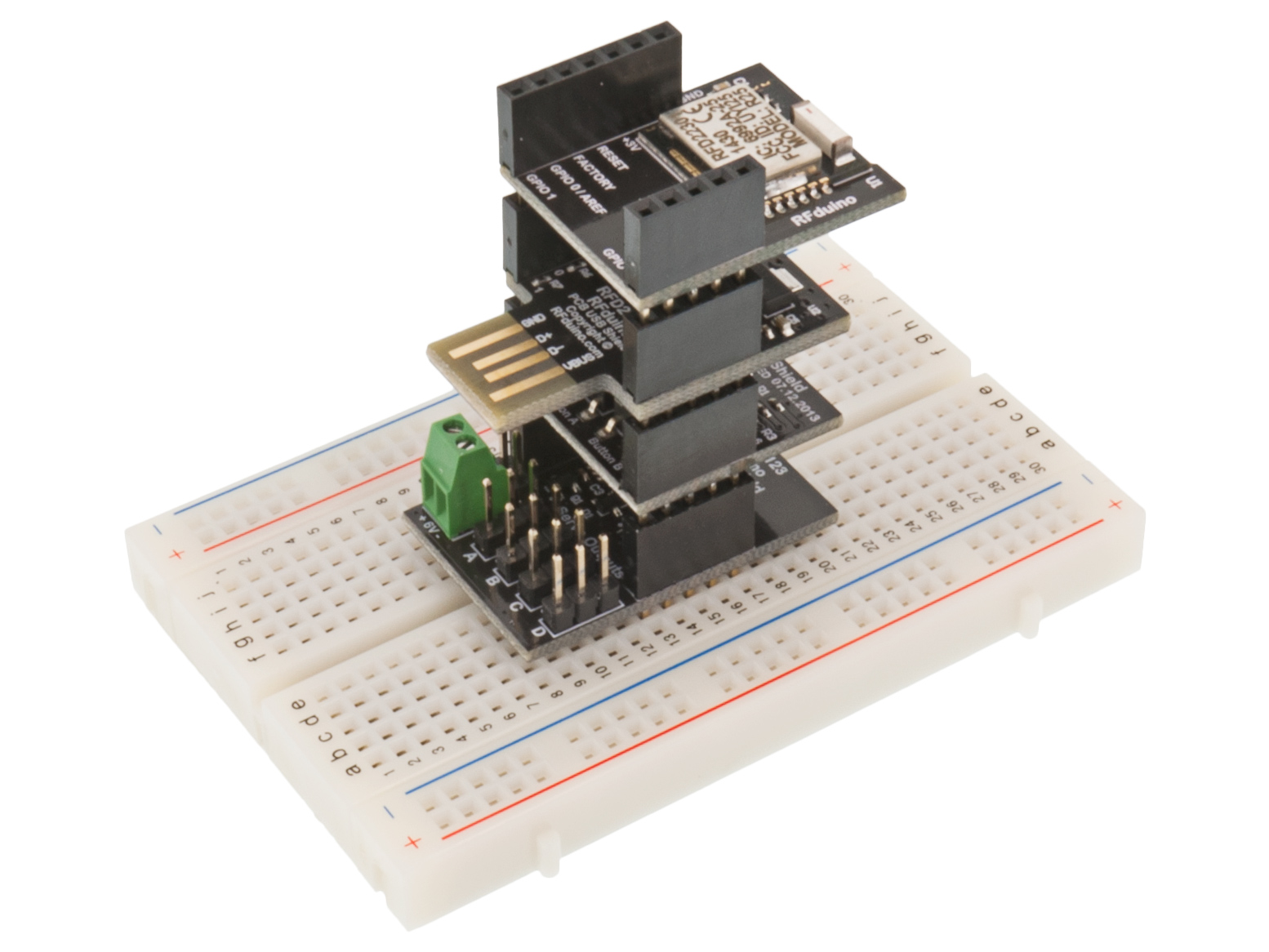

This is the RFduino DIP board, a finger-tip sized, Arduino compatible, wireless enabled microcontroller. What makes the RFduino great is the fact that it runs Arduino code and can do everything an Arduino can, plus much more. When used in conjunction with the RFduino USB shield, simply plug the RFduino into a USB port of any computer and use the Arduino IDE to load your Arduino sketch, which automatically begins running on the RFduino. Then you can detach the RFduino USB shield and plug the RFduino directly into your project. It's that easy!
The RFduino is a Bluetooth 4.0 Low Energy BLE RF Module with Built-In ARM Cortex-M0 and RFD22301 SMT module for rapid development and prototyping projects. The RFduino operates at 3V and 18mA (4uA ULP), transmits of a 2.4 GHz band, and offers 128kb of flash memory with 8kb of ram. Via a Bluetooth connection with your iOS device you even run a series of free apps to control various shields through the RFduino DIP board.
Note: The RFduino DIP requires USB Shield for programming.
Features:
Operating Voltage: 3V (Max 3.6V, Low 1.9V)
Transmit/Recieve Current: 18mA (4uA ULP)
16MHz ARM Cortex-M0 CPU
128kb Flash
8kb Ram
Bluetooth LE RF Module
2.4 GHz Band
Transmit Power: 4dbm
The RFduino is a Bluetooth 4.0 Low Energy BLE RF Module with Built-In ARM Cortex-M0 and RFD22301 SMT module for rapid development and prototyping projects. The RFduino operates at 3V and 18mA (4uA ULP), transmits of a 2.4 GHz band, and offers 128kb of flash memory with 8kb of ram. Via a Bluetooth connection with your iOS device you even run a series of free apps to control various shields through the RFduino DIP board.
Note: The RFduino DIP requires USB Shield for programming.
Features:
Operating Voltage: 3V (Max 3.6V, Low 1.9V)
Transmit/Recieve Current: 18mA (4uA ULP)
16MHz ARM Cortex-M0 CPU
128kb Flash
8kb Ram
Bluetooth LE RF Module
2.4 GHz Band
Transmit Power: 4dbm
