Product description

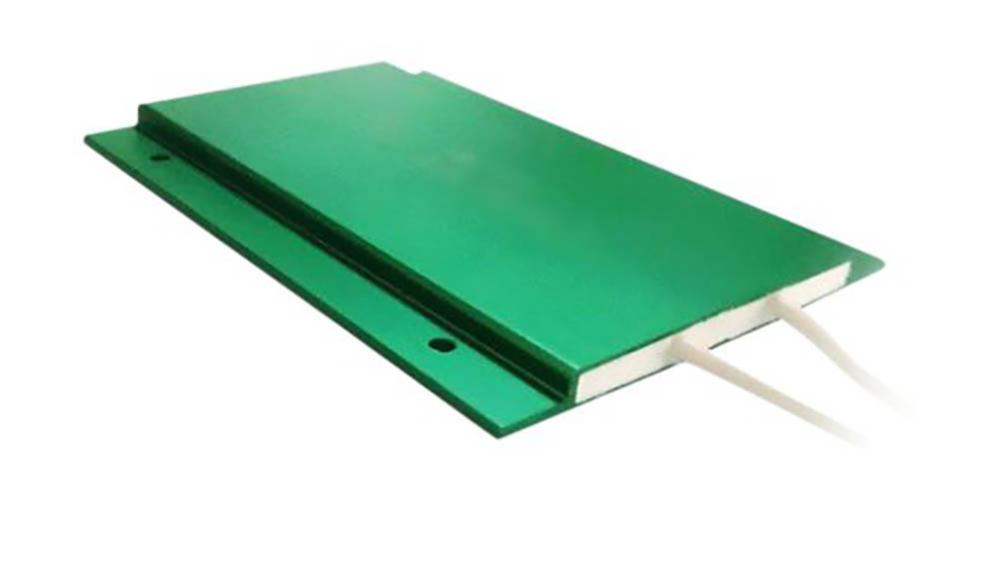

ARCOL LPR100-4R-J is a low-profile power resistor in an aluminium housing. The resistor has connection cables and is designed for screw mounting. The LPR100 series is rated at 100 W. Suitable for applications such as a dummy load for audio amplifiers.
Specifications:
- Manufacturer: ARCOL
- Model: LPR100-4R-J
- Resistance: 4 ohm
- Power: 100 W
- Tolerance: ±5%
- Max. operating temperature: 250 °C
- Insulation resistance: >100 MΩ
- Short-term overload: 5 × rated power for 5 s
- Connection: Cables
- Cable length: 200 mm
- Dimensions: 100 × 75 × 5.7 mm
