Product description
Pico-Relay is a relay module for controlling external loads with Raspberry Pi Pico. The module is designed for applications where multiple relay channels are required, such as automation, control systems, and laboratory environments. With built-in galvanic isolation and optocouplers, interference from external circuits is minimized, ensuring stable operation even in electrically demanding environments.

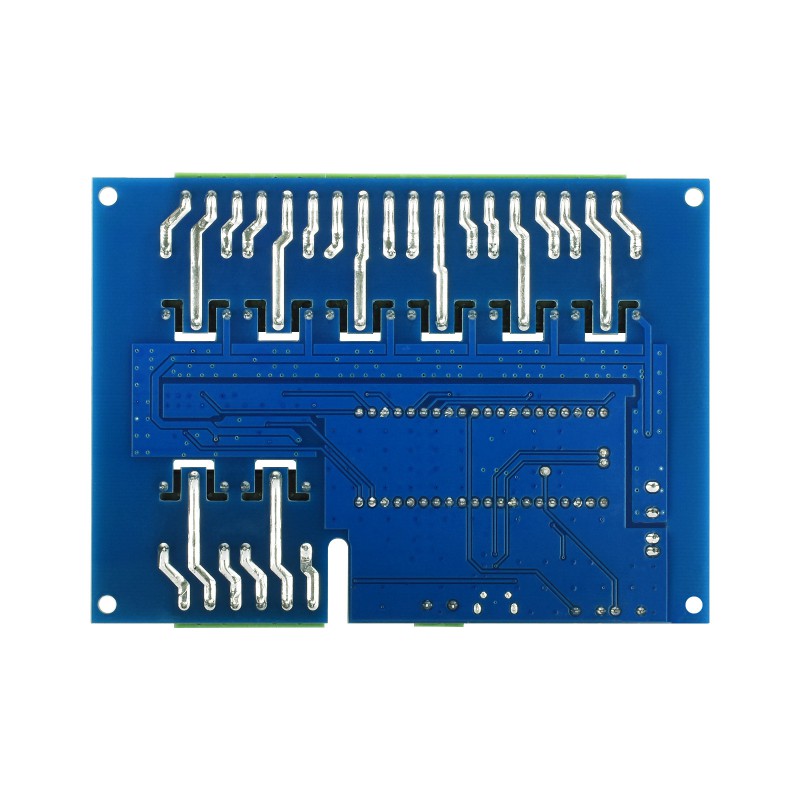

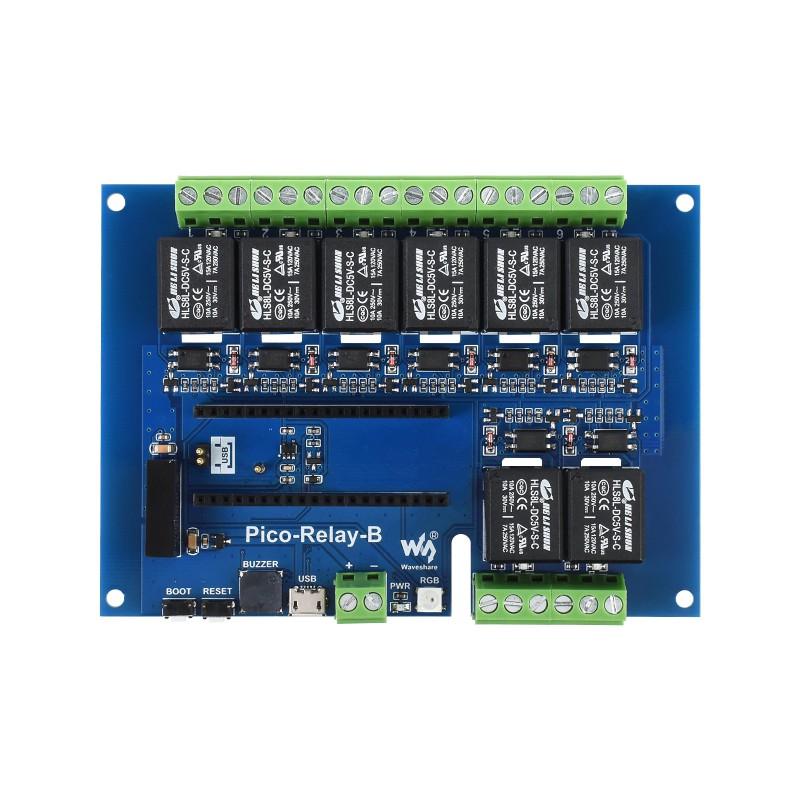

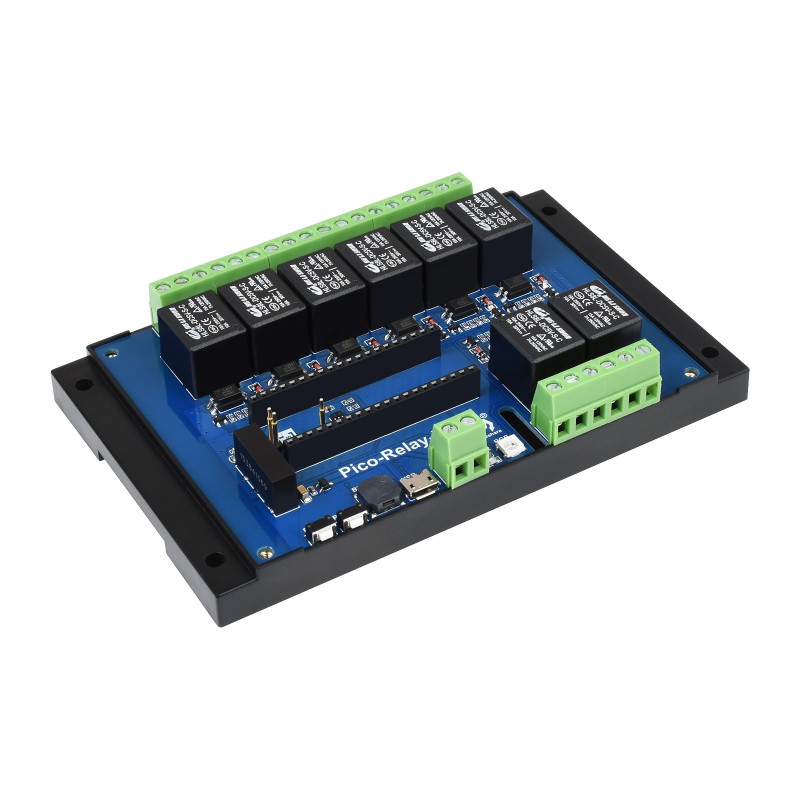

The board features eight relay channels with changeover contacts (NC/NO), enabling flexible control of both AC and DC loads. The board is enclosed in an ABS housing with a DIN rail mount for installation in e.g. distribution boards. Integrated features such as RGB LED, buzzer, and USB interface simplify debugging and development without the need to open the enclosure.
With separate power isolation and optocouplers, the microcontroller is protected from high voltages and transients. The relays are designed for industrial loads and are suitable for controlling lighting, motors, and other power-consuming devices.
Specifications:
- Supply voltage: 5 V
- Number of relay channels: 8
- Contact configuration: 1NO + 1NC per channel
- Maximum current (per channel): 10 A
- Maximum voltage: 250 VAC or 30 VDC
- Communication interface: Micro USB
- Isolation: Optocouplers and galvanic isolation

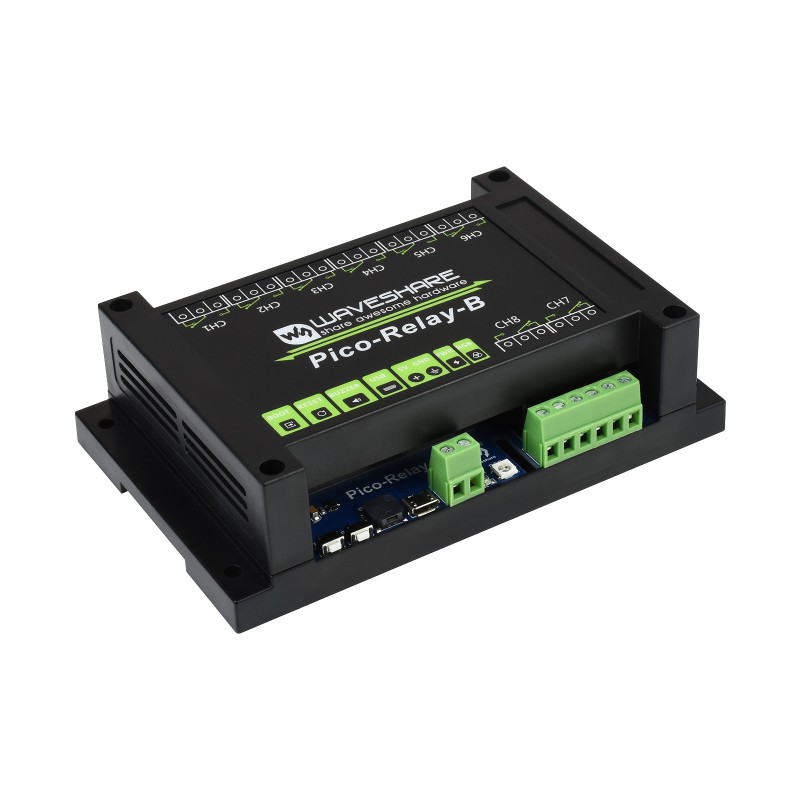

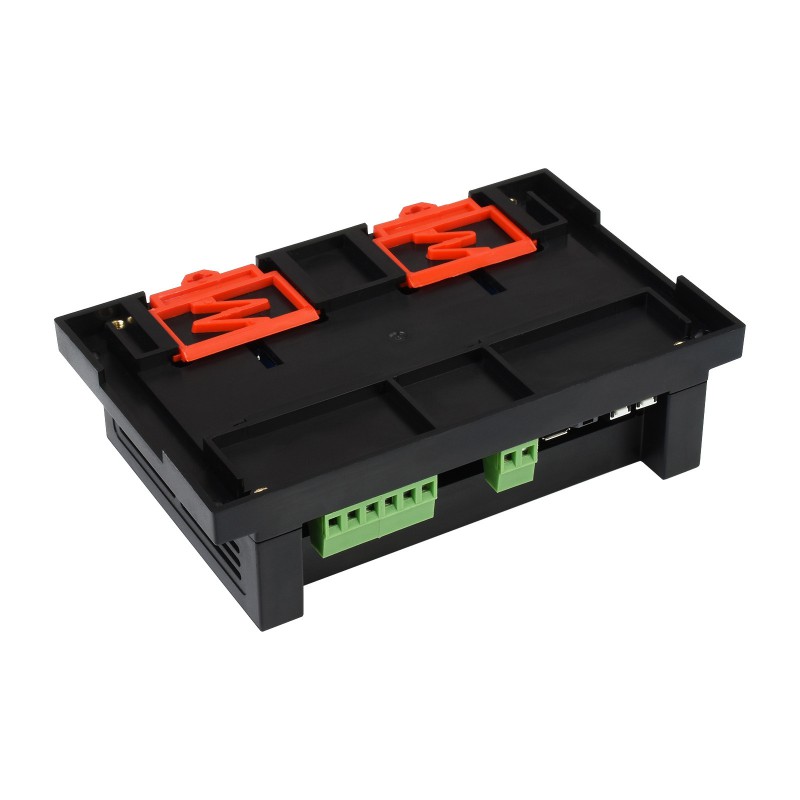

- Enclosure: ABS with DIN rail mount
- Compatibility: Designed for Raspberry Pi Pico series (not included)
