Product description

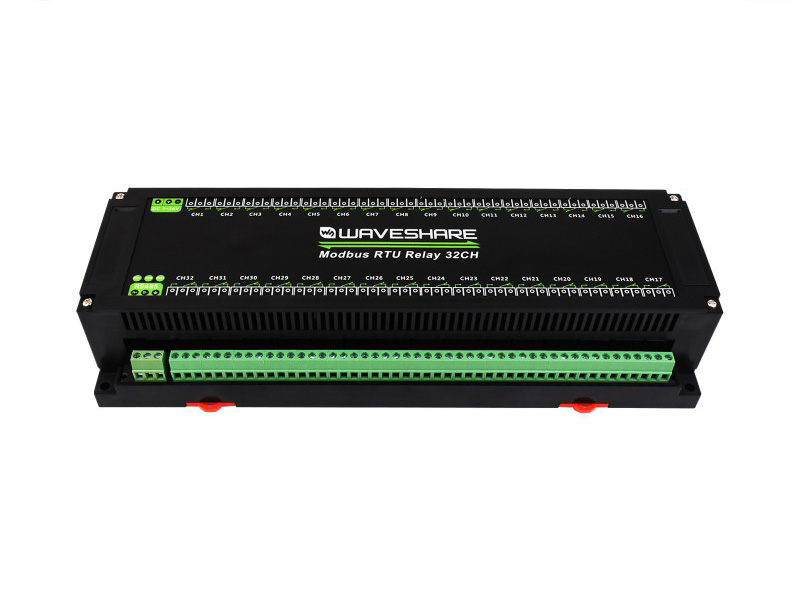

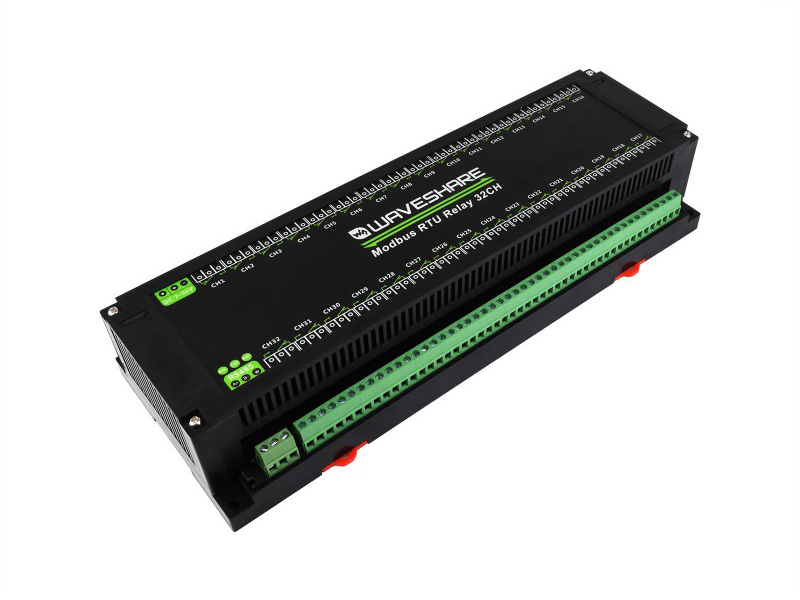

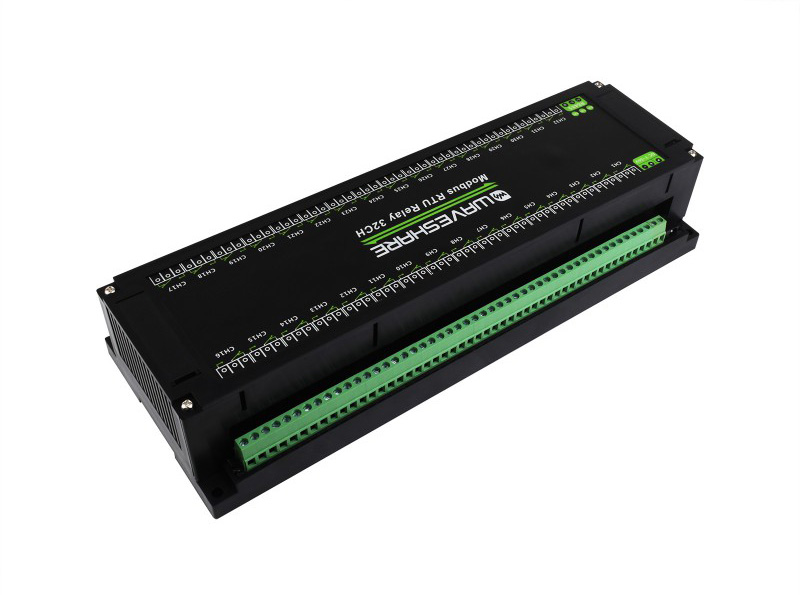

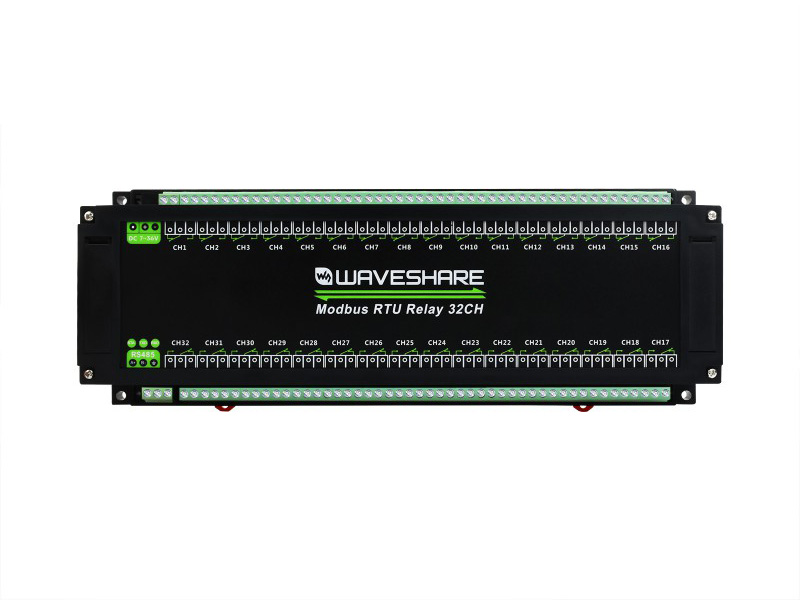

32-channel relay module for DIN rail mounting. Controlled via Modbus RTU over RS485. The module is an industrial, serially controlled relay interface intended for applications such as building automation or industrial automation. It is controlled via RS485 using the Modbus RTU protocol. The module is powered by 7-36 VDC. Opto-isolation between the relays and the digital interfaces provides good protection. The relays are of high quality and can handle loads up to 10 A at 250 VAC or 30 VDC. The module supports advanced functions such as temporary activation (flash-on/flash-off) via command arguments.
Specifications:
- Number of relay channels: 32
- Communication protocol: Modbus RTU

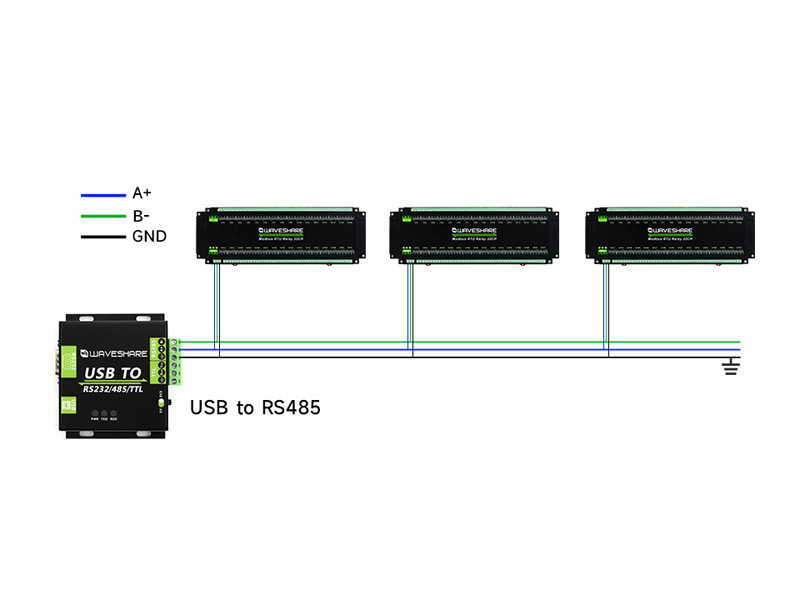

- Serial interface: RS485
- Number of RS485 addresses: 1–255
- Baud rate: 4800, 9600, 19200, 38400, 57600, 115200, 128000, 256000
- Power supply: 7 - 36 VDC
- Relay function: NO/NC
- Relay contact load: max 10 A at 250 VAC or 30 VDC
- Opto-isolation for interfaces: Yes

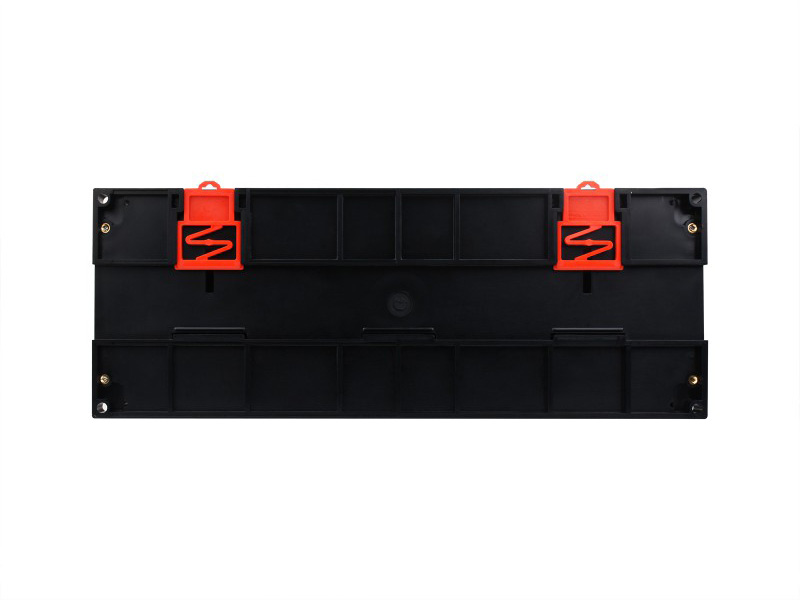

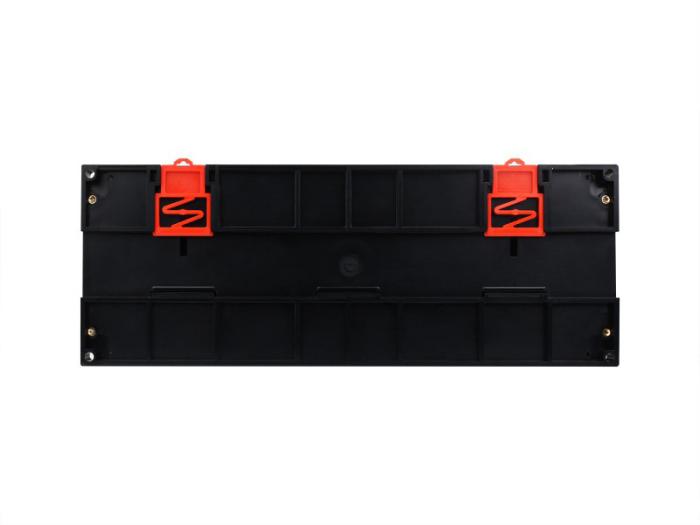

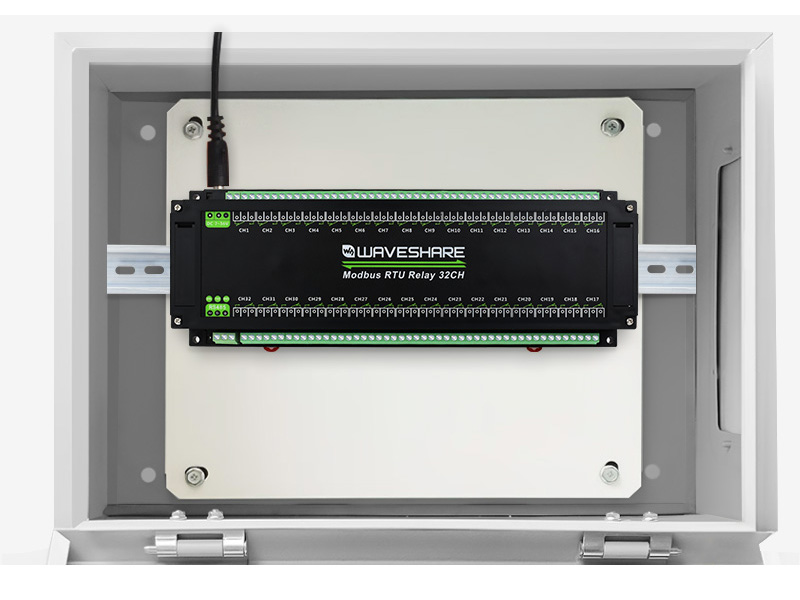

- Mounting: DIN rail
- Enclosure material: ABS
- Status indicators: Ethernet activity, MCU status, TXD/RXD activity
