Product description

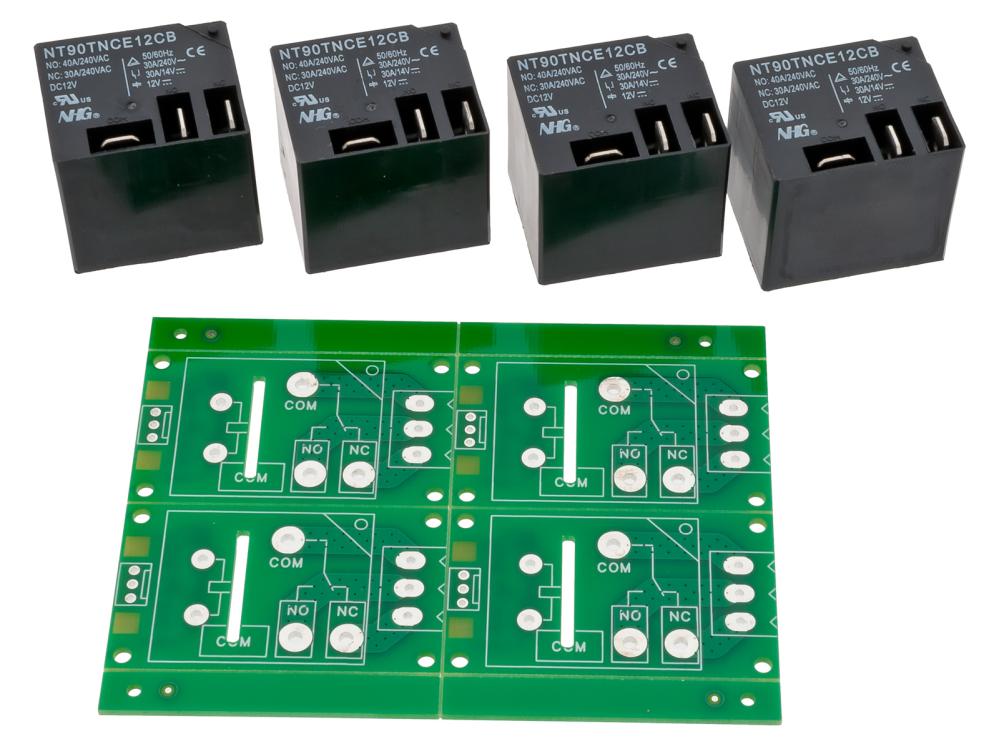

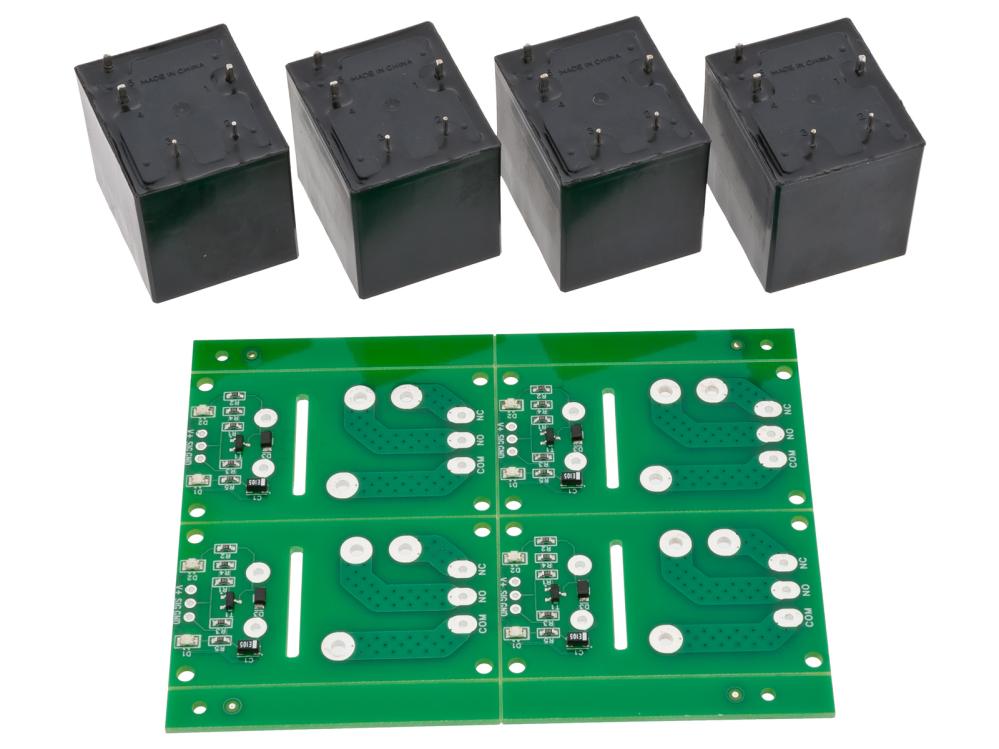

Pack of 4x circuit boards and relays. Sold as a partial kit where the surface mounted components are already mounted and relays needs to be soldered.

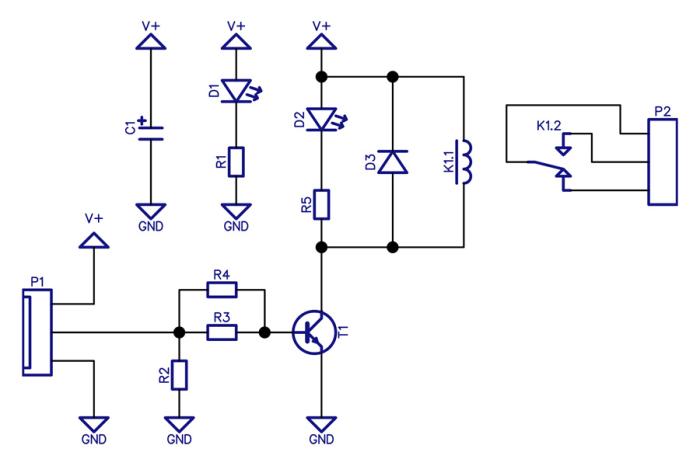

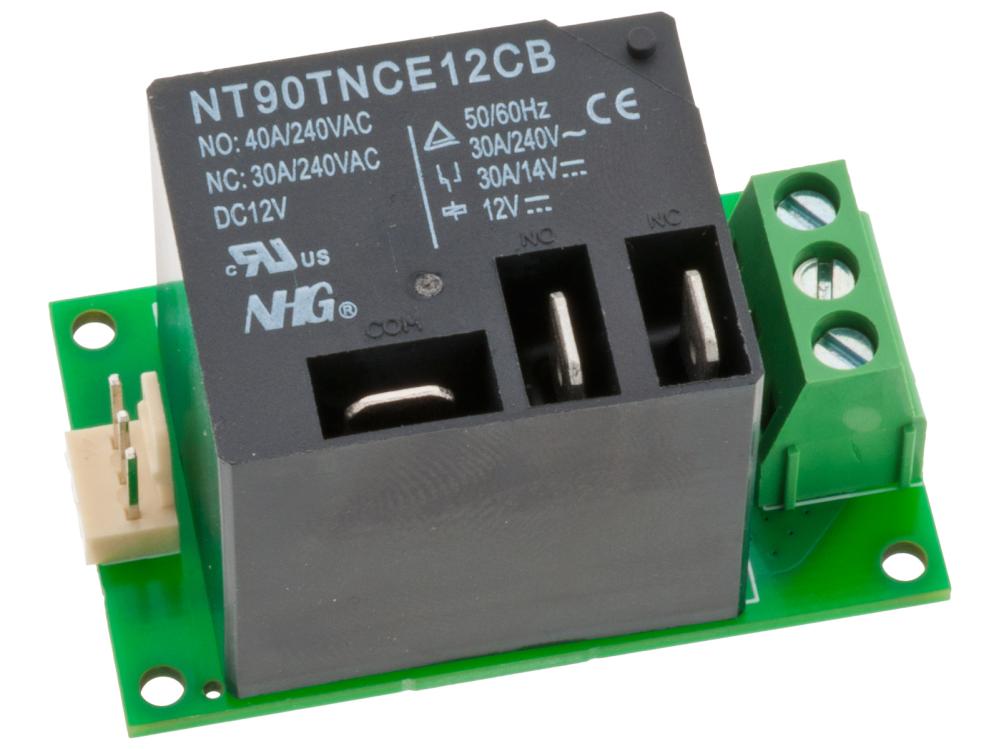

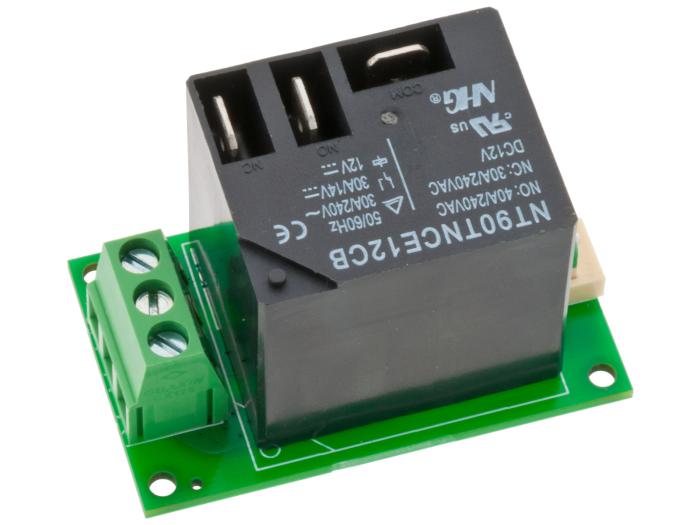

The relay contacts can be accessed both via 6.3mm blade terminals and via the circuit board (pattern for a 5mm screw terminal). A transistor on the board is used for driving the relay coil, which makes it possible to control the relay with logic signals down to around 2V which makes this module an excellent choice for controlling larger loads from Arduino or Raspberry Pi. An LED indicates status for the relay (on/off).
Connection for controlling the relay are made via the 2.54mm header on the board. Suitable connectors can be found under recommended products.
* Supply voltage: 12VDC
* Supply current: 80mA
* Control signal: 2 - 12V
* Dimensions: 56 x 28 x 33mm

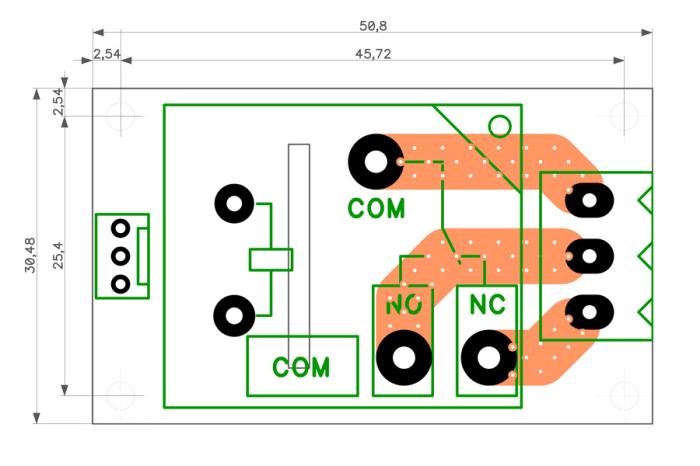

* Mounting holes: c-c 45.72 x 25.4mm ø2.54mm
The relay contacts can be accessed both via 6.3mm blade terminals and via the circuit board (pattern for a 5mm screw terminal). A transistor on the board is used for driving the relay coil, which makes it possible to control the relay with logic signals down to around 2V which makes this module an excellent choice for controlling larger loads from Arduino or Raspberry Pi. An LED indicates status for the relay (on/off).
Connection for controlling the relay are made via the 2.54mm header on the board. Suitable connectors can be found under recommended products.
* Supply voltage: 12VDC
* Supply current: 80mA
* Control signal: 2 - 12V
* Dimensions: 56 x 28 x 33mm
* Mounting holes: c-c 45.72 x 25.4mm ø2.54mm
