SMD relay IM06 12V 2-pole 2A - 250VAC/220VDC NO/NC

Art no: 41017972 - TE Connectivity
Shop this product, SMD relay IM06 12V 2-pole 2A - 250VAC/220VDC NO/NC
price 45 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 45:-4pcs = 162:-10pcs = 360:-

Quantity discount
QuantityPrice
1 till 3
45 SEK
4 till 9
40.50 SEK
10 till
36 SEK
In stock, 7 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

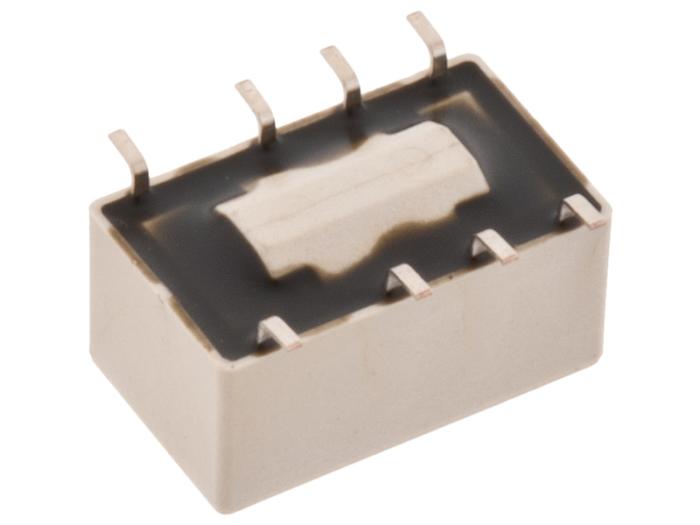

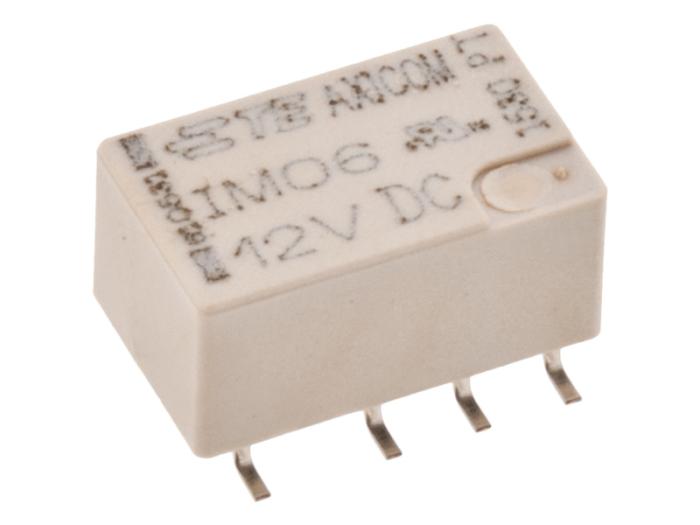

Surface-mounted signal relay with two switching contacts NO/NC (DPDT). Small size and high quality.

Specifications:

  • Coil voltage: 12 VDC
  • Coil power: 140 mW
  • Coil resistance: 1029 ohm
  • Relay type: Monostable
  • Number of Poles: 2
  • Contact Configuration: Switching NO/NC (on-on)
  • Switching voltage (max): 250 VAC / 220 VDC
  • Switching current (max): 2 A (AC) / 2 A (DC)
  • Dimensions: 10x6x5.65 mm
  • Mounting type: PCB pins, THT (Through Hole)
  • Manufacturer: TE - Axicom
  • Model: IM06PGR

Technical data

Technical data/attributes for this product
Attribute Value
2-54mm-pitch
Nej
Coil-current
9.16
Coil-resistance
1315 Ω
Coil-voltage
12 V
Current-ac
2 A
Current-dc
2 A
Poles
2
Rohs
RoHS-kompatibel
Throw
Växlande
Voltage-ac
250 V
Voltage-dc
220 V
  • SKU:

    41017972
  • MPN:

    IM06PGR
