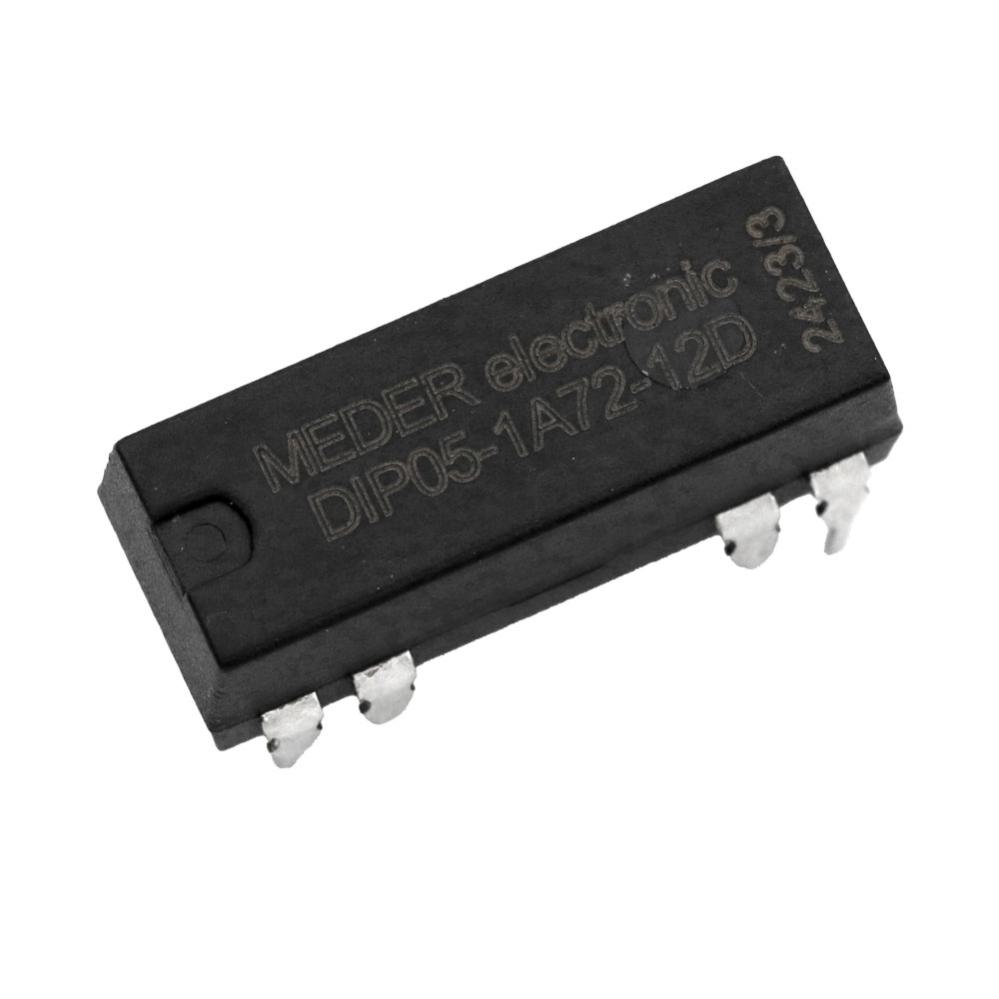

Product description
Reed relay with diode option. The diode is connected between pins 2 and 3, i.e. across the coil.
Coil voltage: 5 VDC
Coil resistance: 500 Ω
Relay type: Monostable
Number of poles: 1
Contact type: Normally open NO (off-on)
Switching voltage (max): 200 VDC
Switching current (max): 1 A
Switching power (max): 10 W
Dimensions: 19.3×5.1×6.4 mm
Package: DIP-14
Mounting: PCB (through-hole)
Manufacturer: MEDER
Model: DIP05-1A72-12D
