Product description

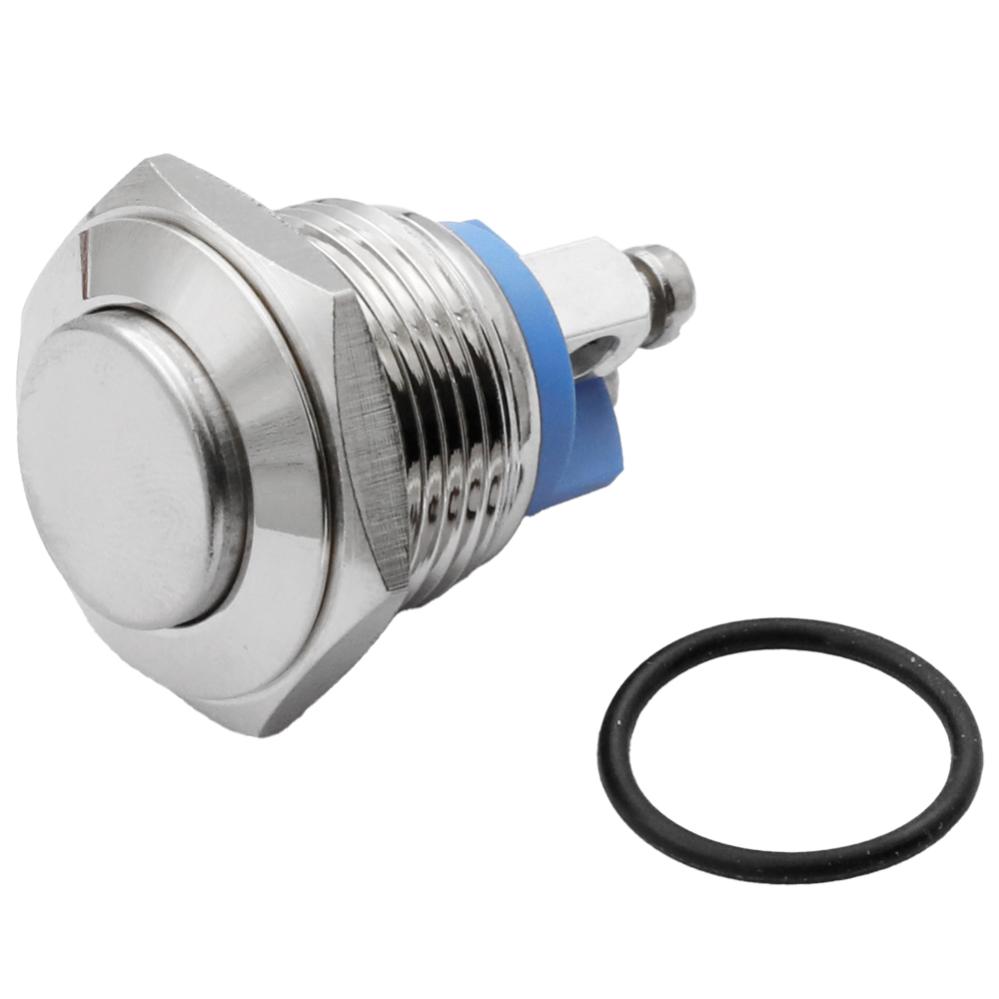

Vandal-proof momentary button (switch) for panel mounting. Prominent button.
Normally open, push-to-make (off-on).
Screw connection.
Waterproof according to IP65
Rated voltage/current (resistive load): 36V DC, 2A
Indication: none
Max contact resistance: 50mΩ
Mounting hole: Ø16mm
Mechanical life: >1000000 cycles
Electrical life (36V DC): > 200000 cycles
Working temperature: -20 to +55°C
Maneuvering force: 4N
