Product description

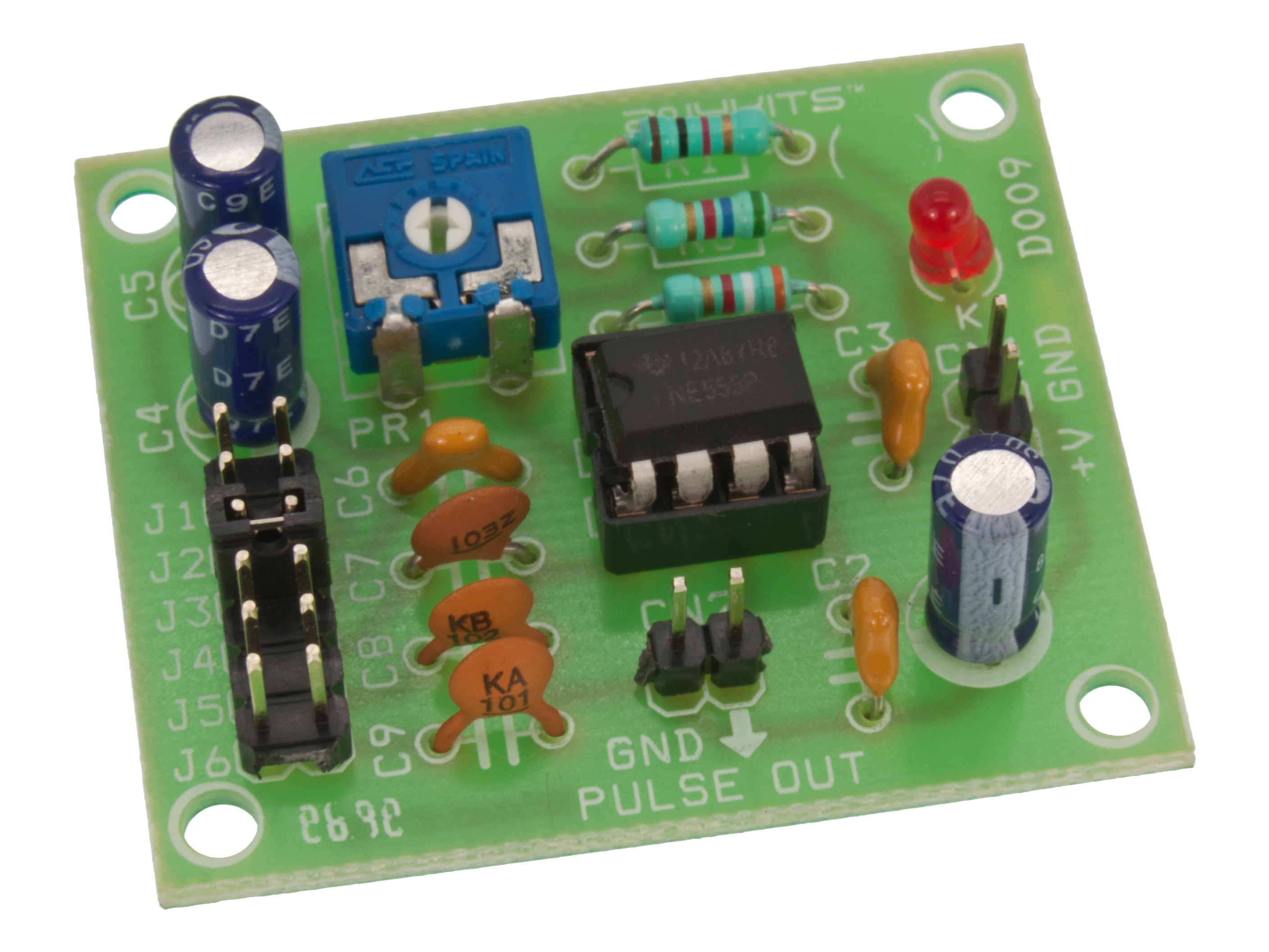

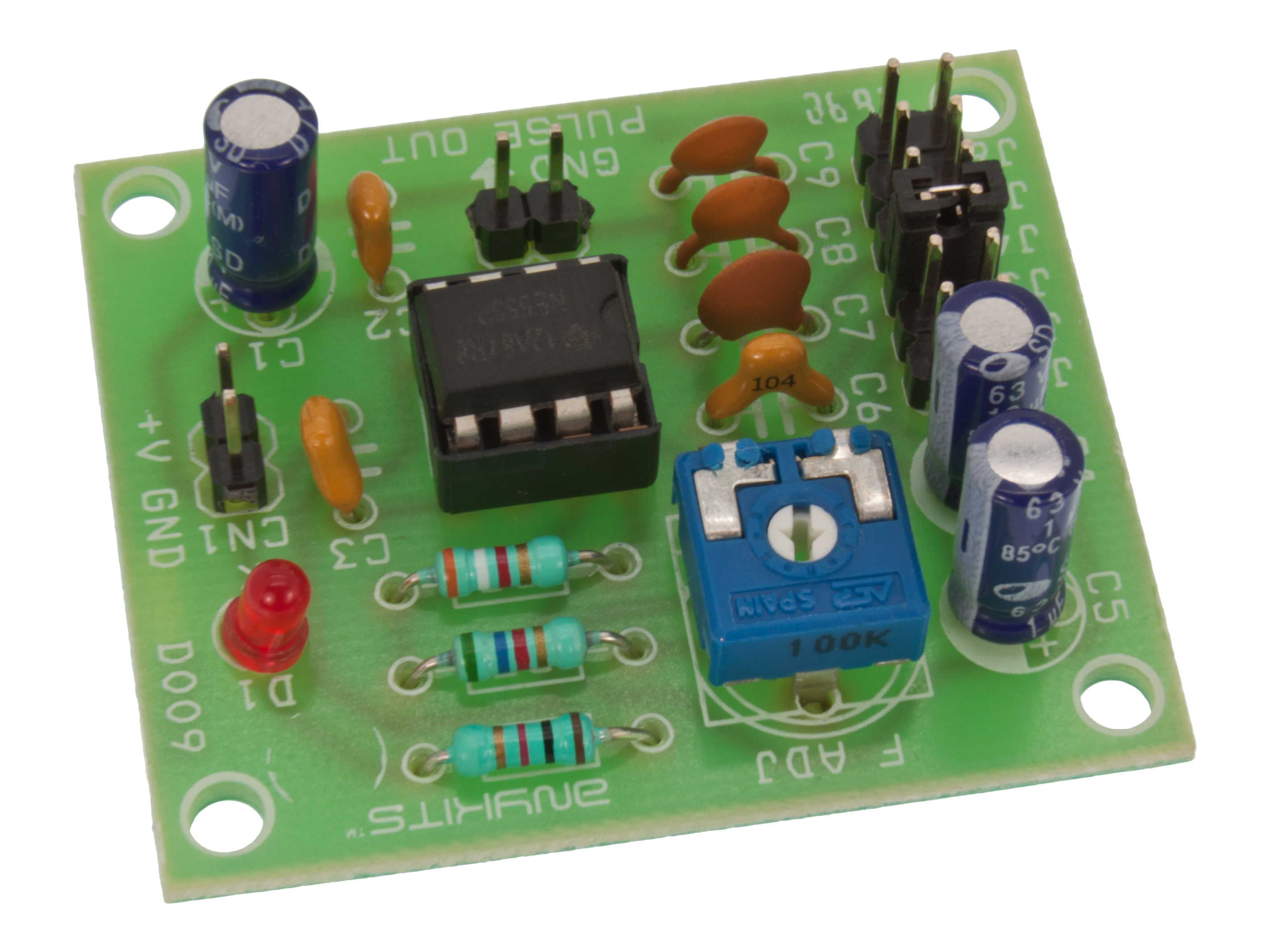

Pulse Generator kit will generate a frequency in KHz which can form a good test gear project. This kit is based on the classic 555 timer IC.
* Input : 12 VDC Max @ 40 mA
* Range : Jumper selectable and preset tunable range of 1 Hz to 180 KHz
* Power-On LED indicator
* Berg connector for easy connection
* Four mounting holes of 3.2 mm each
* PCB dimensions 40 mm x 47 mm
* Input : 12 VDC Max @ 40 mA
* Range : Jumper selectable and preset tunable range of 1 Hz to 180 KHz
* Power-On LED indicator
* Berg connector for easy connection
* Four mounting holes of 3.2 mm each
* PCB dimensions 40 mm x 47 mm
