Product description

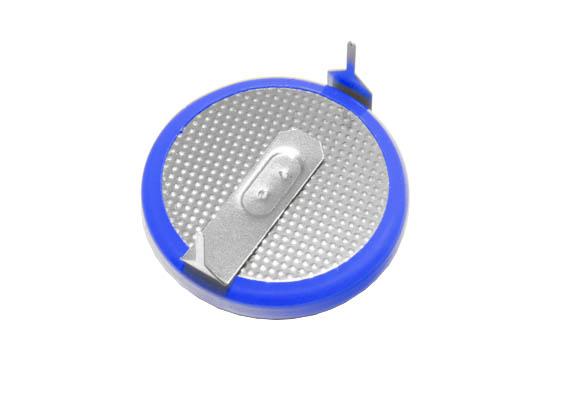

CR2032 lithium battery for horizontal PCB mounting with 2-pin. Suitable for memory backup and similar applications.
Specifications:
- Battery type: CR-2032
- Nominal voltage: 3 V
- Capacity: 210 mAh
- Weight: 3.1 g
- Lead spacing: 20 mm
- Operating temperature range: -20°C to +60°C
- Packing: 1 piece in zip bag
Dimensions:
- Height: 3.2 mm
- Diameter (ø): 20 mm
Other:
- Rechargeable: No
- Chemistry: Lithium manganese dioxide (LiMnO2)
- Solder connection: 2-pin for PCB
- Pin configuration: PCB2 (see datasheet)
