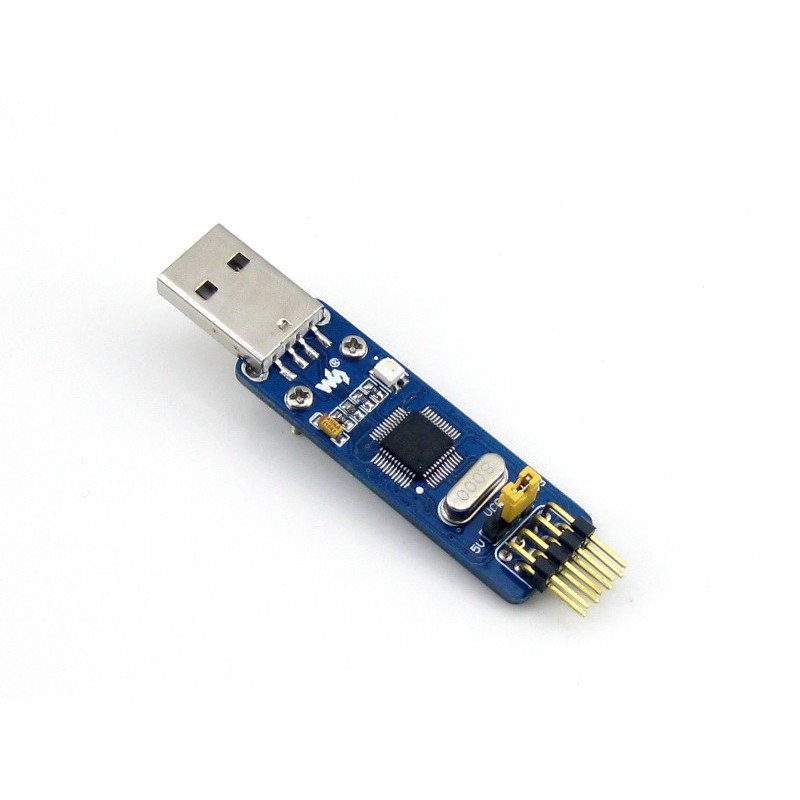

ST-LINK/V2 mini STM8/STM32 programmer & debugger

Art no: 41032812
Waveshare - ST-LINK/V2 (mini)
Shop this product, ST-LINK/V2 mini STM8/STM32 programmer & debugger
price 129 SEK
Including 25% VAT
In stock, 20 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

ST-LINK/V2 mini STM8/STM32 Programmer is a compact in-circuit debugger/programmer for STM8 and STM32 microcontrollers. It is suitable for both development and debugging of embedded systems using SWIM and SWD interfaces.

Technical Specifications:

  • Rated current (max):500 mA fuse on the output section
  • Interface voltage ranges: SWD supports approx. 1.65 V to 3.6 V, SWIM supports approx. 1.65 V to 5.5 V
  • Standard USB interface: For direct connection to PC
  • Supply voltage: Powered via USB

Debugging / Programming Performance:

  • Debugging: Runs at full speed, step-by-step execution, breakpoints, variable and register inspection, etc.
  • Programming:Supports FLASH ROM, EEPROM, AFR, etc.
  • USB 2.0 combined with SWIM/SWD interfaces: Fast response for debugging and high-speed programming
  • Upgradeable firmware: Can be updated to support more devices in the future

Supported Software:

  • ST-LINK Utility v2.0 (or higher)
  • STVD version 4.2.1 (or higher)
  • STVP version 3.2.3 (or higher)
  • IAR EWARM Revision v6.20 (or higher)
  • IAR EWSTM8 Revision v1.30 (or higher)
  • KEIL RVMDK Revision v4.21 (or higher)
  • ATOLLIC
  • TASKING

Supported Devices:

  • All STM8 devices with SWIM interface
  • All STM32 devices with SWD interface

Extern länk

Product information

  • SKU:

    41032812
  • MPN:

    ST-LINK/V2 (mini)
