Product description

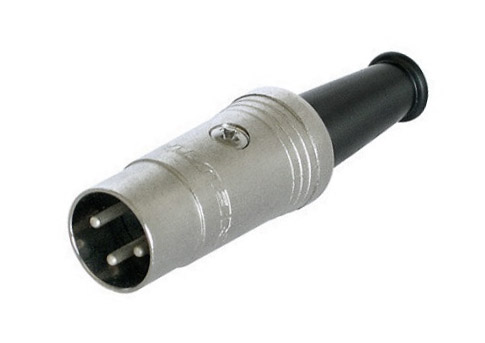

REAN NYS321 is a 3-pole DIN connector (male), designed for audio/video applications. Connector with metal housing and silver-plated pins.
Specifications:
- Number of poles: 3
- Type: Male for cable mounting
- Pin material: Brass with silver plating
- Cable outer diameter (max): 6.5 mm
- Contact resistance: < 10 mOhm
- Rated voltage (max): 50 VAC
- Mechanical life: > 1000 cycles
- Mounting: Soldering
