Product description

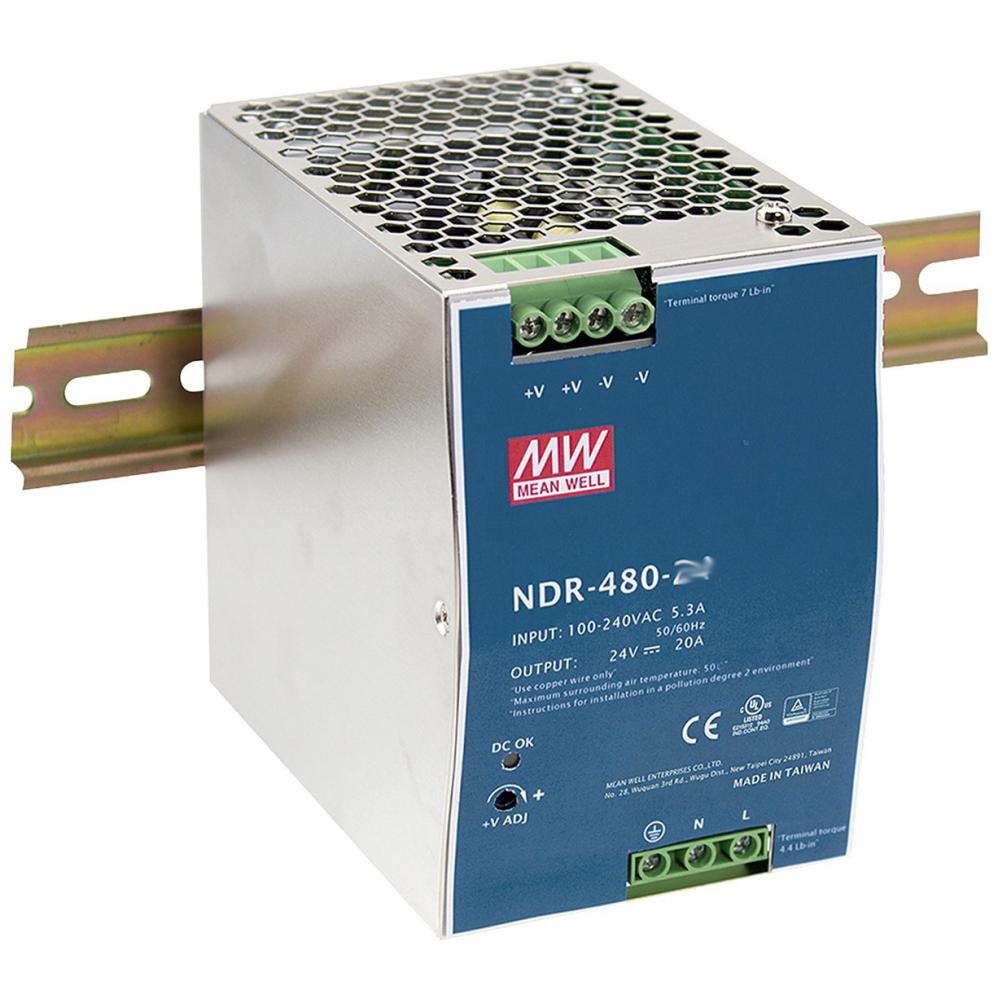

NDR-480 series features power supplies of 480 W, intended for mounting on a DIN rail. With an efficiency of 92.5%, the series can be used at ambient temperatures ranging from -20 to +70 °C with natural air convection. The metal housing improves heat dissipation. Suitable for resistive, inductive and capacitive loads. Trimmer potentiometer for fine-tuning the output voltage. Protected against overload, overvoltage, overheating and short circuits.
Comprehensive protection features and relevant certifications for industrial control equipment, including TÜV EN 62368-1, make the NDR-75 a competitive power supply solution for industrial applications.
Specifications:
- Product type: Switching power supply
- Model: NDR-480-48
- Manufacturer: Mean Well, Taiwan
- Input voltage: 90–264 VAC
- Output voltage: 48 VDC (adjustable 48-55 VDC)
- Output current: 10 A
- Power: 480 W
- Efficiency: 92.5%
- Max. ripple: 150 mV p-p
- Connection: Screw terminal
- Mounting: DIN rail
- Dimensions: 125.2 × 128.5 × 85.5 mm
- Weight: 1.5 kg
- Safety: CE, TÜV Approved
For complete specifications, see datasheet.
