Product description

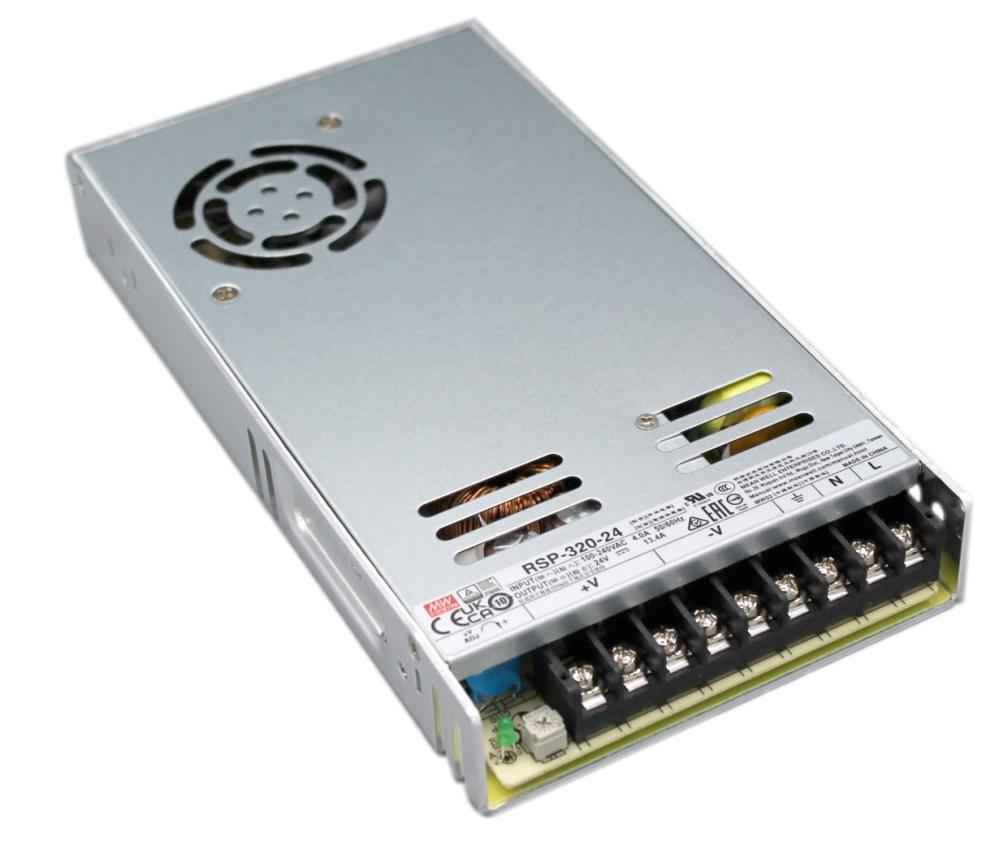

RSP-320 series are enclosed switch mode power supplies for embedded applications with an output power of approximately 320 W. The series features built-in active PFC, a universal 88–264 VAC input range, and is cooled by a temperature-controlled fan. The power supply is protected against short circuit, overload, overvoltage, and overtemperature. The output voltage can be adjusted using the built-in trimming potentiometer. An LED indicator shows when the power supply is powered on. Suitable for industrial automation, test and measurement equipment, laser applications, burn-in systems, and RF equipment.
Specifications:
- Product type: Enclosed switch mode power supply
- Manufacturer: Mean Well
- Model: RSP-320-24
- Input voltage: 88–264 VAC
- Output voltage: 24 VDC, adjustable (20-26.4 V)
- Current (max): 13.4 A
- Power (max): 321.6 W
- Efficiency: 89%
- Power factor: >0.95 at 230 VAC
- Ripple and noise (max): 150 mVp-p
- Operating temperature: -30 to +70 °C
- Cooling: Temperature-controlled fan
- LED indicator: Yes
- Dimensions: 215 × 115 × 30 mm
- Weight: 0.9 kg
- Safety: CE, TÜV BS EN 62368-1, etc.
