Product description

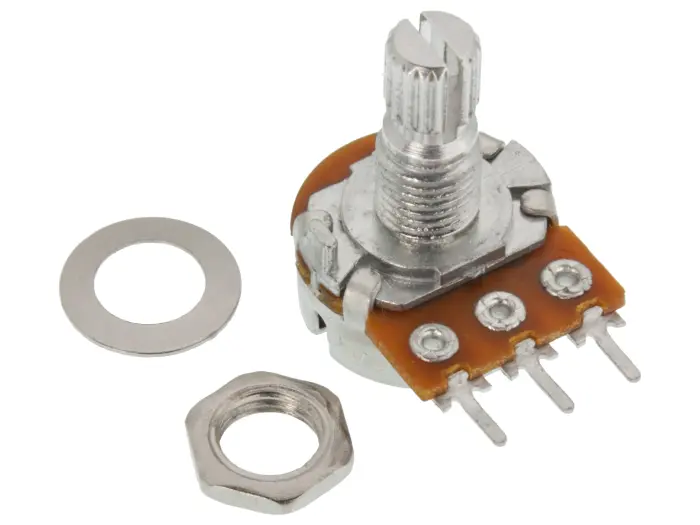

Potentiometer with conductive plastic element. Minimal noise and long life. Through-hole solder pins for circuit board. Right-angled. Knurled 18-tooth shaft.
* Resistance: 250kohm (±20%)
* Taper: Linear
* Voltage rating: 500VAC
* Power rating: 0.2W
* Pitch: 5mm
* Shaft: ø6 x 15mm 18T
* Rotational angle: 300°
* Temperature range: -20 to +70°C
* Model: P160KN-0QC15B250K
* Resistance: 250kohm (±20%)
* Taper: Linear
* Voltage rating: 500VAC
* Power rating: 0.2W
* Pitch: 5mm
* Shaft: ø6 x 15mm 18T
* Rotational angle: 300°
* Temperature range: -20 to +70°C
* Model: P160KN-0QC15B250K
