Pot 1kohm lin P160KN (B1K)
Art no: 41014918
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description

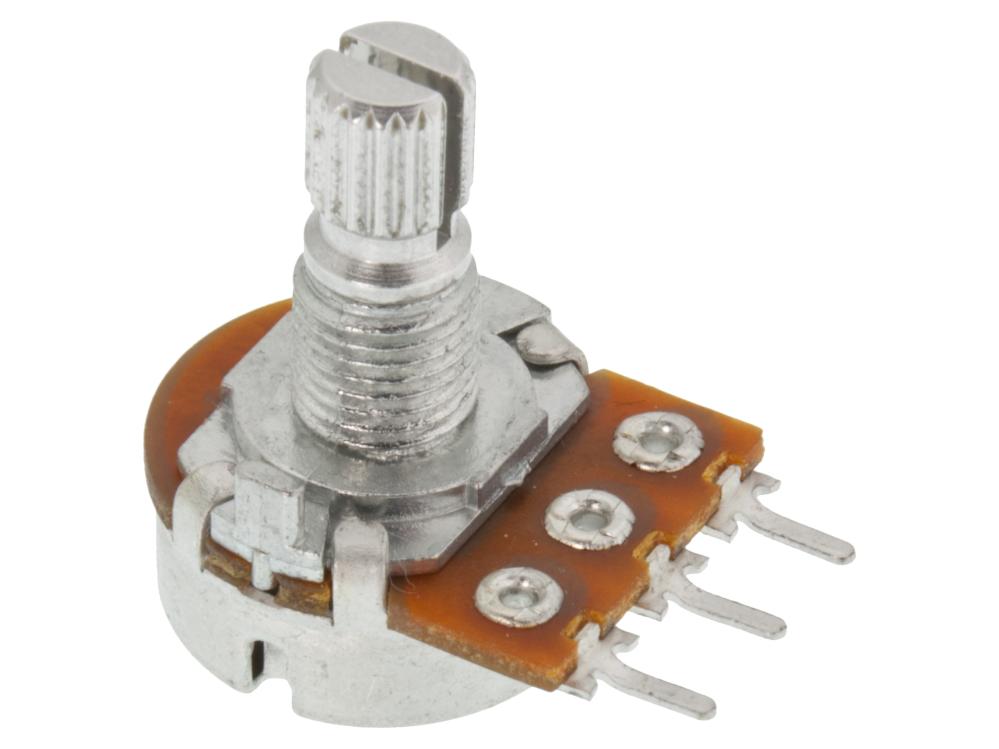

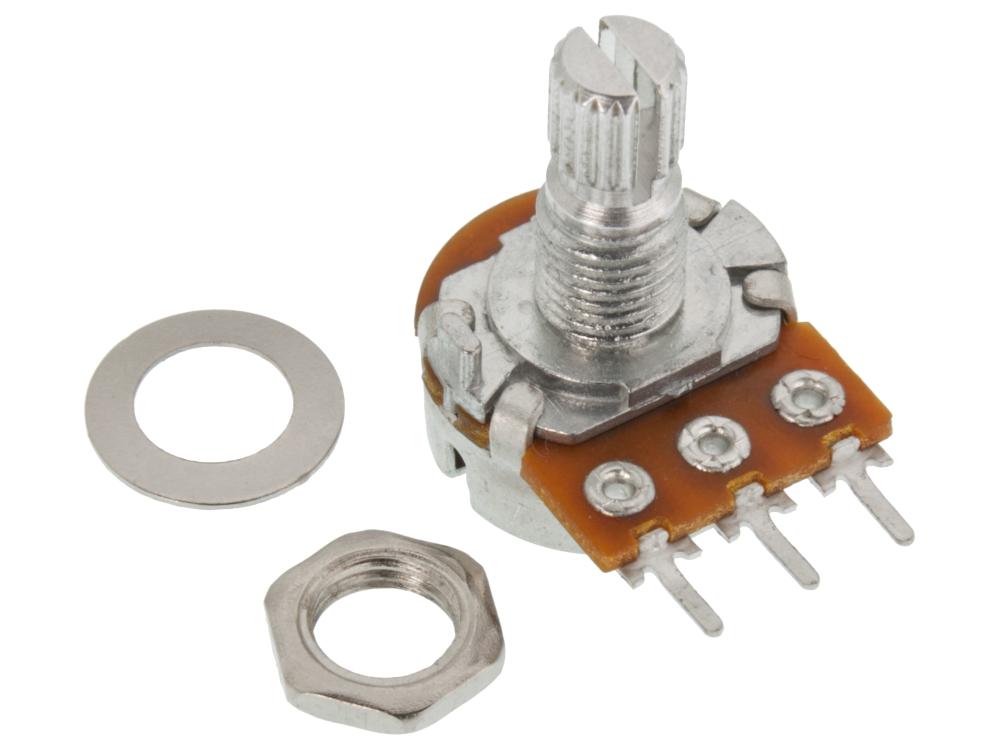

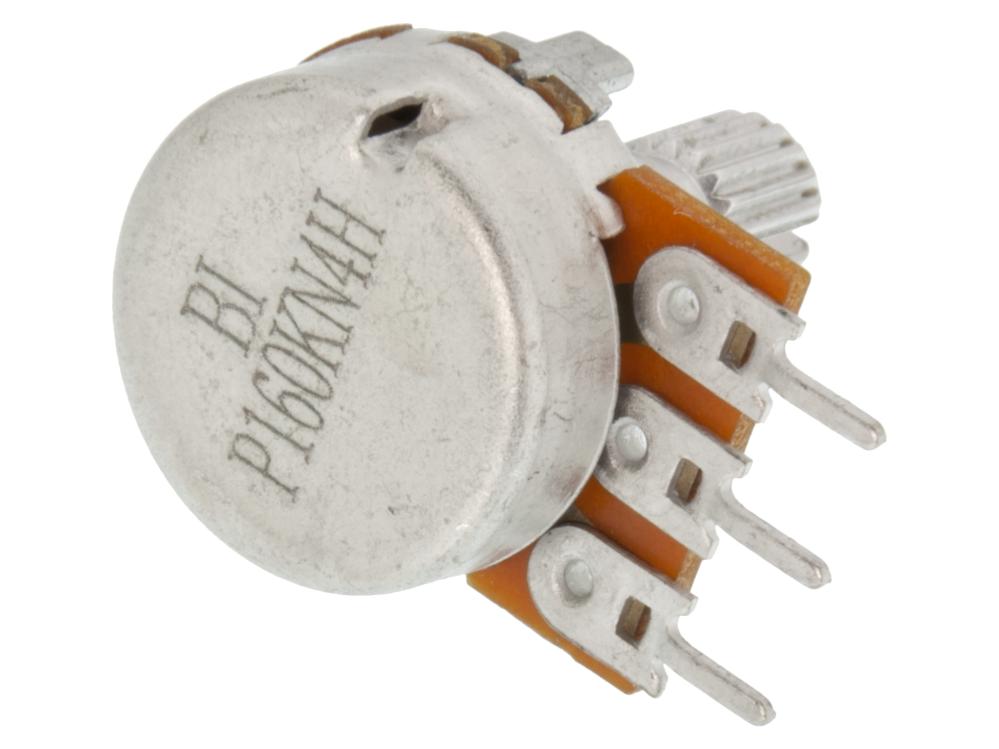

Potentiometer with conductive plastic element. Minimal noise and long life. Through-hole solder pins for circuit board. Right-angled. Knurled 18-tooth shaft.
* Resistance: 1kohm (±20%)
* Taper: Linear
* Voltage rating: 500VAC
* Power rating: 0.2W
* Pitch: 5mm
* Shaft: ø6 x 15mm 18T
* Rotational angle: 300°
* Temperature range: -20 to +70°C
* Model: P160KN-0QD15B1K
* Resistance: 1kohm (±20%)
* Taper: Linear
* Voltage rating: 500VAC
* Power rating: 0.2W
* Pitch: 5mm
* Shaft: ø6 x 15mm 18T
* Rotational angle: 300°
* Temperature range: -20 to +70°C
* Model: P160KN-0QD15B1K
Documents
Technical data
| Attribute | Value |
|---|---|
|
Axis-length
|
15 mm
|
|
Gang
|
1x
|
|
Kurva
|
Lin
|
|
Power
|
0.2 W
|
|
Resistance
|
1 kΩ
|
|
Shaft
|
6mm 18-spår
|
|
Taper
|
Plast
|
|
Termination
|
Stift
|
|
Thread
|
M7x0.75
|
|
Type
|
Vridpot
|
SKU:
41014918
