Product description

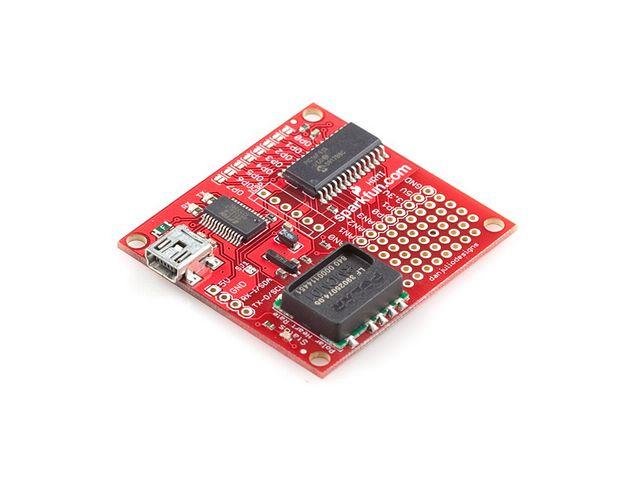

This is a wonderful evaluation board cooperatively designed by danjuliodesigns and SparkFun. The Heart Rate Monitor Interface (HRMI) is an intelligent peripheral device that converts the ECG signal from the Polar Heart Rate Monitor (HRM) into easy-to-use heart rate data. It implements a sophisticated algorithm for computing an average heart rate even with noisy or intermittent data from the transmitter.
Features: Multiple interfaces: USB, Logic-level serial and I2C
Dual heart rate processing algorithms: averaged and raw
Uses the RMCM01 Polar OEM receiver
Compatible with coded and non-coded Polar transmitters including T31, T31C, T61C and Wearlink®
32-entry heart rate data history buffer
Four 8-bit ADC inputs
Up to a 5 channel digital input/output utility port
Simple command/response interface
Programmable power-on default operation
Only works with one transmitter (HRM) in range
Applications:
Custom exercise equipment
Portable heart rate monitoring devices
Bio-feedback devices
Heart beat aware body-worn electronics
