Product description

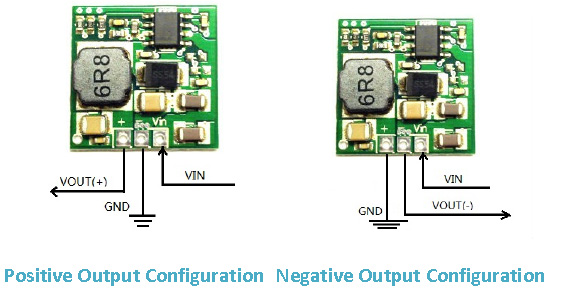

PNMini2A is a minimal switch regulator with high efficiency. The module can supply a maximum of 2A without any heatsink and is extremely easy to use. The connections consists of input, output and ground. The module can be configured to output either a positive or a negative voltage depending on how it's connected. The output voltage is programmed using board mounted resistors. No external components are required.
* Efficiency: 85 - 92%
* Input voltage: 28V max
* Output voltage (positive): 3.5 - 28V
* Output voltage (negative): 2.7 - 27V
* Max current output: 2A
* Protection: temperature, inrush, over-voltage, over-current, short-circuit
