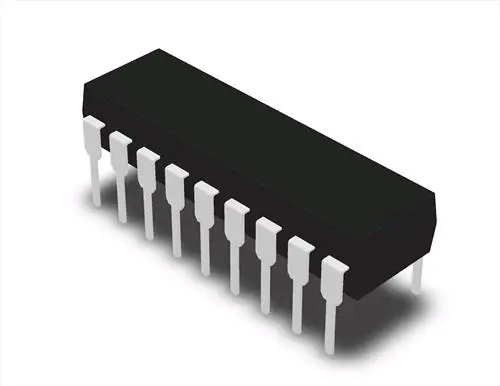

PIC16F54-I/P DIP-18
Art no: 40360654
Microchip - PIC16F54-I/P
Sorry, this product is outdated and no longer active
Do you need assistance?
Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se
Product description
Product description
8-bit Microcontroller based on the PIC RISC architecture.
Max CPU operating frequency: 20MHz
Flash: 512 words
RAM: 25B
Features
* Power-on Reset (POR)
* Device Reset Timer (DRT)
* Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
* Programmable Code Protection
* Power-saving Sleep mode
* In-Circuit Serial Programming (ICSP)
* Selectable oscillator options:
- RC: Low-cost RC oscillator
- XT: Standard crystal/resonator
- HS: High-speed crystal/resonator
- LP: Power-saving, low-frequency crystal
* 12 I/O pins:
- Individual direction control
- High current source/sink
* 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler
Max CPU operating frequency: 20MHz
Flash: 512 words
RAM: 25B
Features
* Power-on Reset (POR)
* Device Reset Timer (DRT)
* Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
* Programmable Code Protection
* Power-saving Sleep mode
* In-Circuit Serial Programming (ICSP)
* Selectable oscillator options:
- RC: Low-cost RC oscillator
- XT: Standard crystal/resonator
- HS: High-speed crystal/resonator
- LP: Power-saving, low-frequency crystal
* 12 I/O pins:
- Individual direction control
- High current source/sink
* 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler
Documents
Technical data
| Attribute | Value |
|---|---|
|
Architecture
|
8-bit
|
|
Case
|
DIP-18
|
|
Clock
|
20 MHz
|
|
Eeprom
|
0.024
|
|
Family
|
PIC16
|
|
Flash
|
0.5
|
|
Gpio
|
12
|
|
Ram
|
0.024
|
|
Supply-voltage-max
|
5.5 V
|
|
Supply-voltage-min
|
2 V
|
|
Timers
|
1
|
SKU:
40360654MPN:
PIC16F54-I/P
