Product description

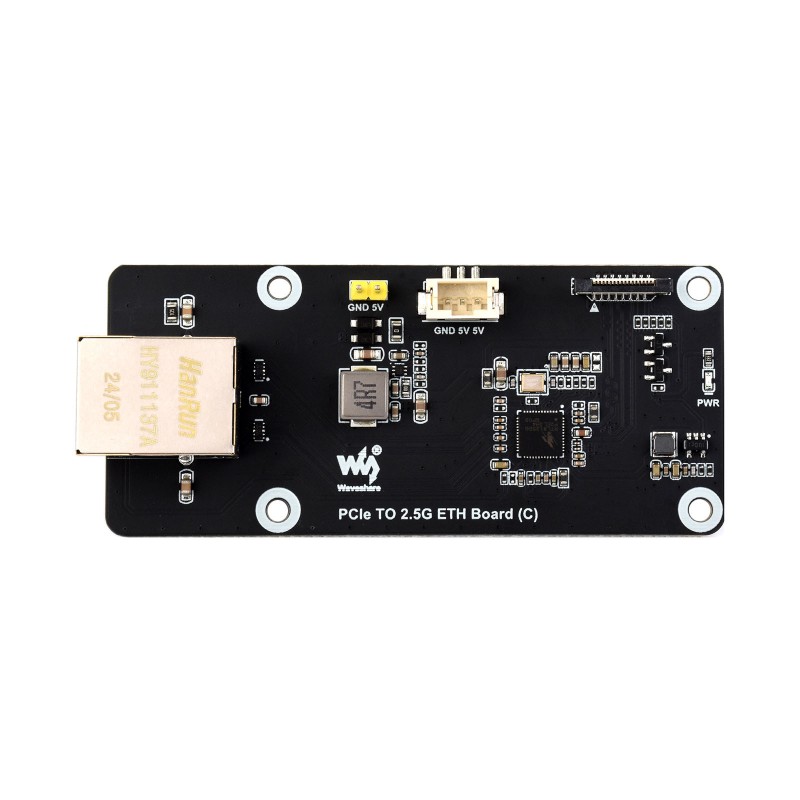

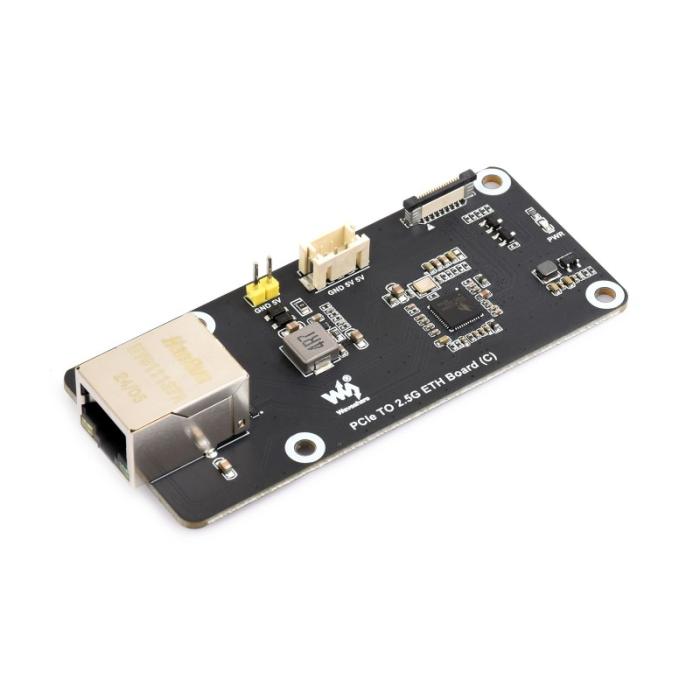

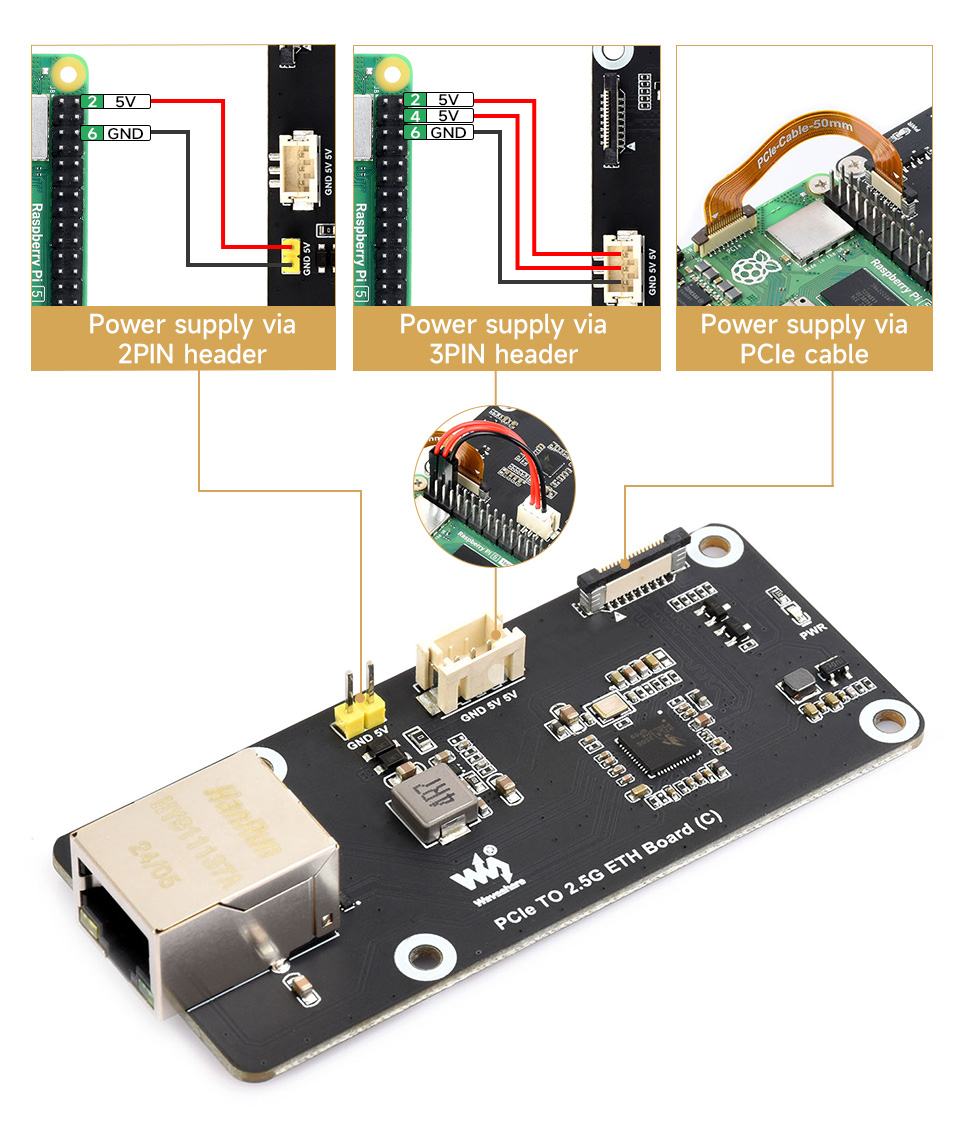

PCIe Ethernet adapter 2.5G for Raspberry Pi 5. Provides a high-speed Ethernet connection of up to 2.5 Gbps. Based on the Realtek RTL8125 controller with support for 10 / 100 / 1000 / 2500 Mbps. Connects to Raspberry Pi 5 using a 16-pin PCIe cable (included). No separate driver is required in Raspberry Pi OS, making it easy to integrate into network applications. Powered via the PCIe interface. Supplied with an additional power cable that can be used in environments where the board handles high network traffic over extended periods.

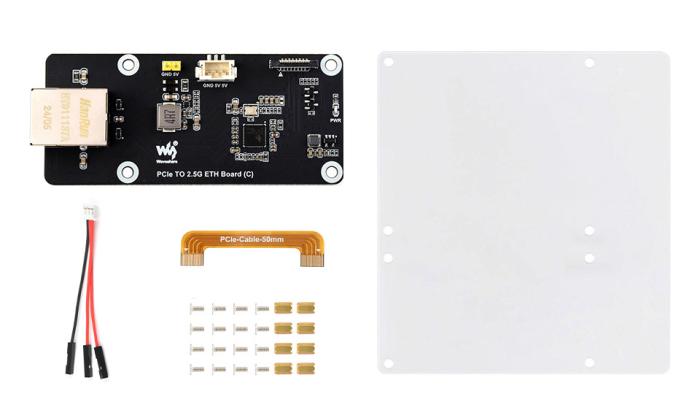

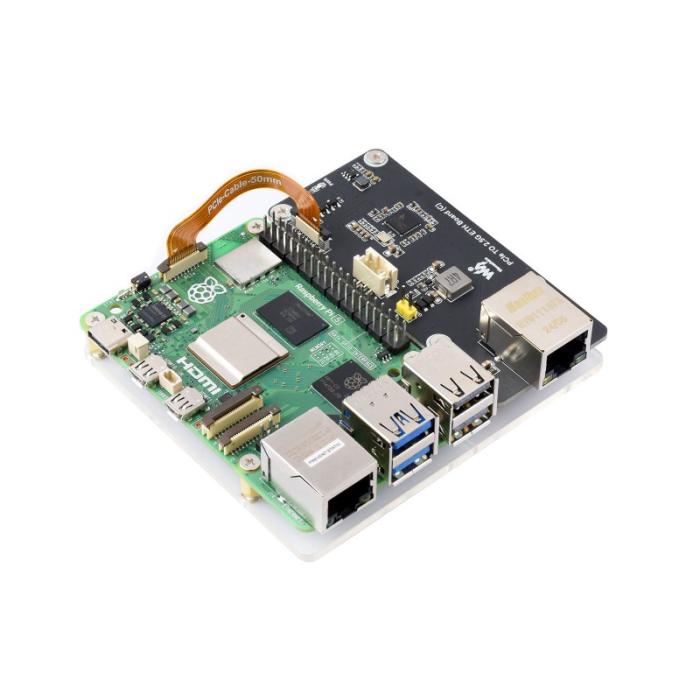

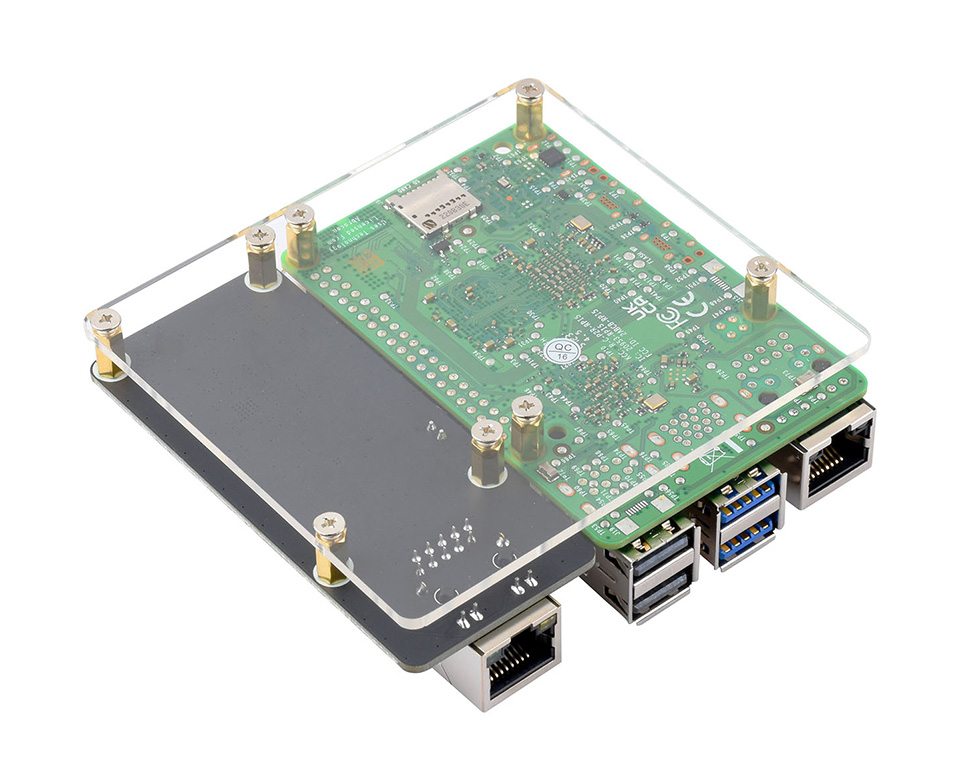

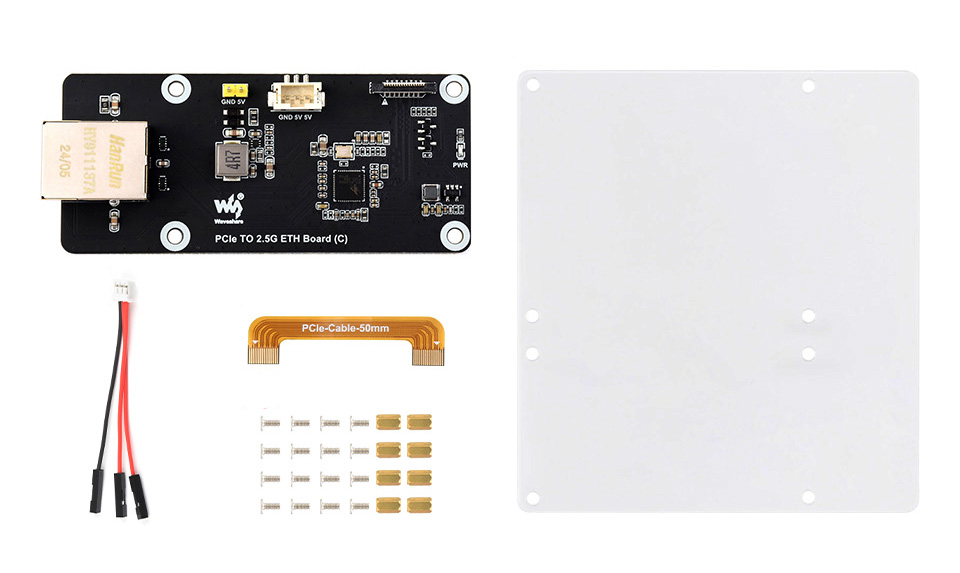

Supplied with PCIe FPC cable, additional power cable, acrylic mounting plate for the board and Raspberry Pi 5, as well as screws and spacers.
Specifications:
- Controller: Realtek RTL8125
- Ethernet port: RJ45 2.5 Gbps Ethernet
- PCIe interface: PCIe x1 Gen2
- Network standard: 10/100/1000/2500 Mbps
- Status indicator: Green LED blinks during data activity, yellow LED indicates link status
- Compatibility: Raspberry Pi 5

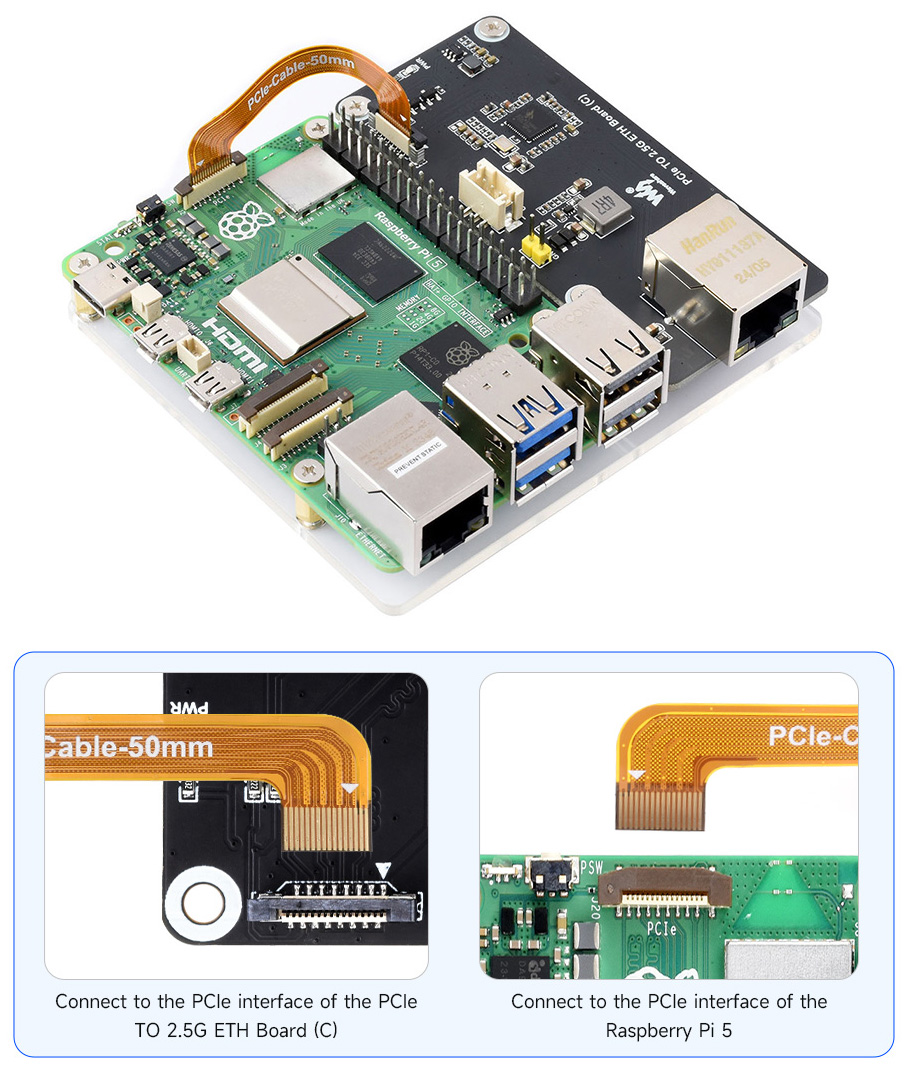

- Connection: 16-pin FPC PCIe cable
