Product description

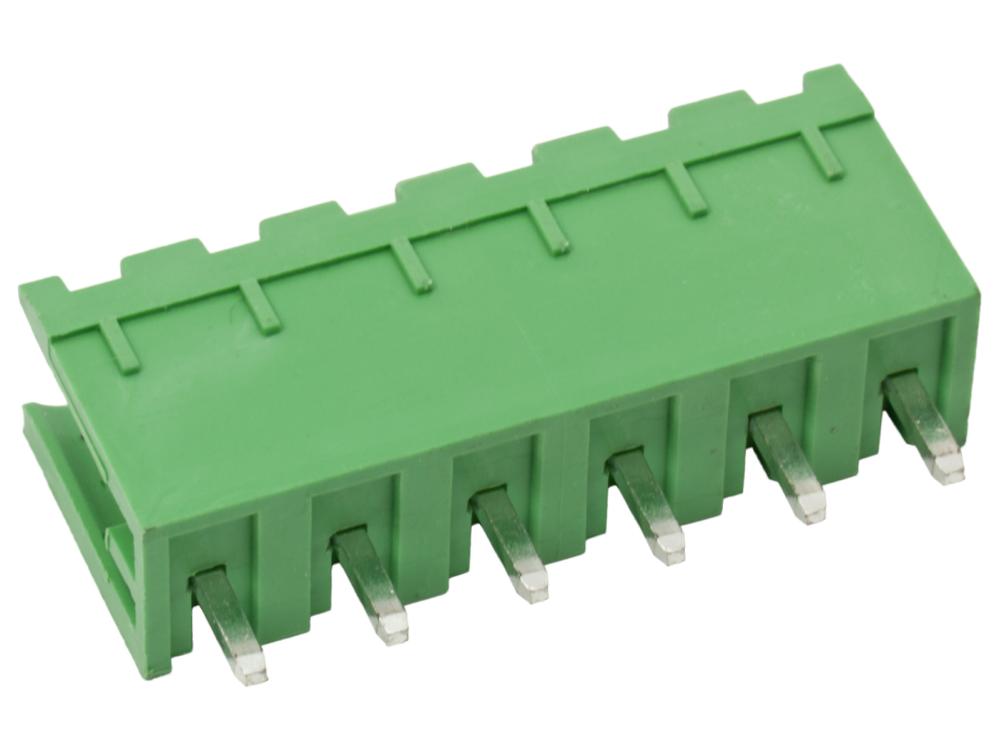

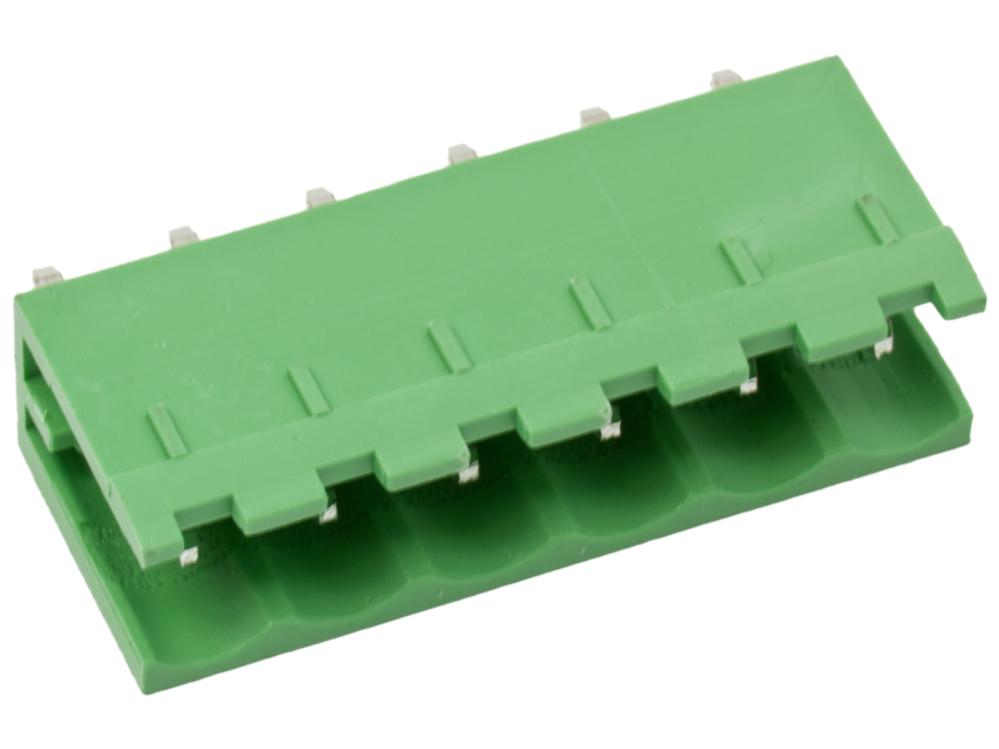

Vertical male PCB pin header for connection to a pluggable female (sockt) terminal block. The connector has open sides, allowing multiple headers to be stacked side by side. For example, one 2-pin header and one 3-pin header can be combined with a 5-pin pluggable female (socket) terminal block.
Specifications:
Number of poles: 6
Type: Male (pin)
Pitch: 5.08 mm
Rated voltage: 300 VAC
Rated current: 10 A
Temperature range: -40 to +105 °C
Contact resistance: max. 20 mOhm
Material: PA66 (Polyamide 66)
Flammability rating: UL94 V-0
