PCB male pin header vertical 5.08mm 4-pin 300V 10A @ electrokit
PCB male pin header vertical 5.08mm 4-pin 300V 10A @ electrokit

PCB male pin header vertical 5.08mm 4-pin 300V 10A

Art no: 41017486
NKE - WJ2EDGVC-5.08-04P
3.20 SEK
Including 25% VAT

Mängdrabatt:
4pcs = 12:80 10pcs = 47:00 25pcs = 98:75

QuantityPrice
4 9
3.20 SEK
10 24
4.70 SEK
25 99
3.95 SEK
100
3.15 SEK
In stock, 99 pcs. Leveranstid ca 1-3 vardagar
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

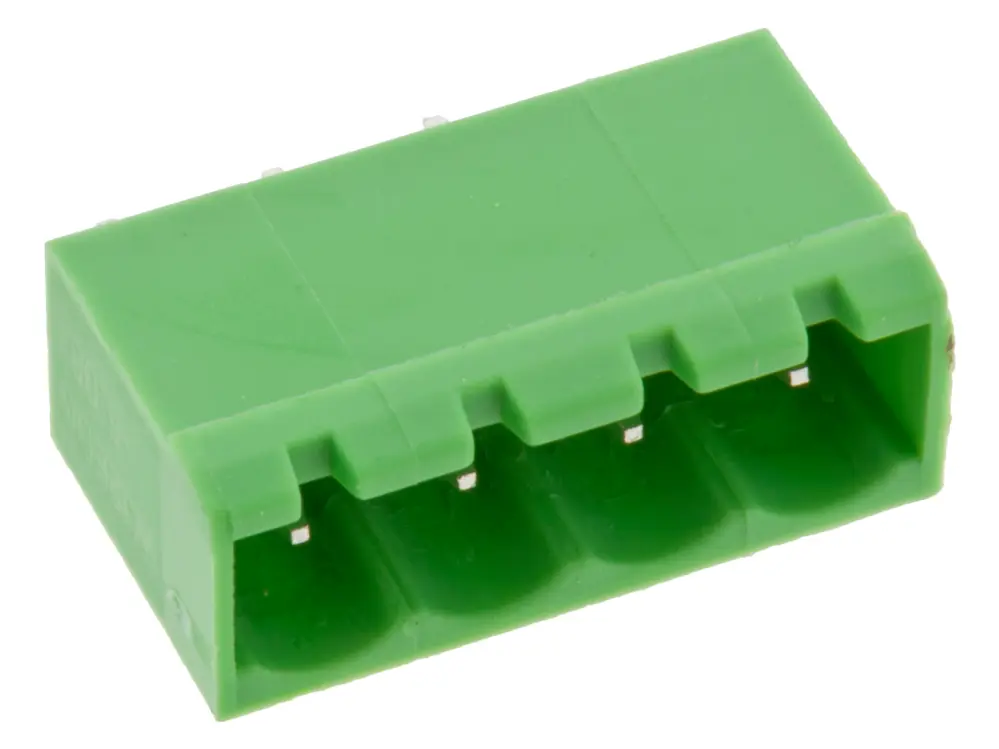

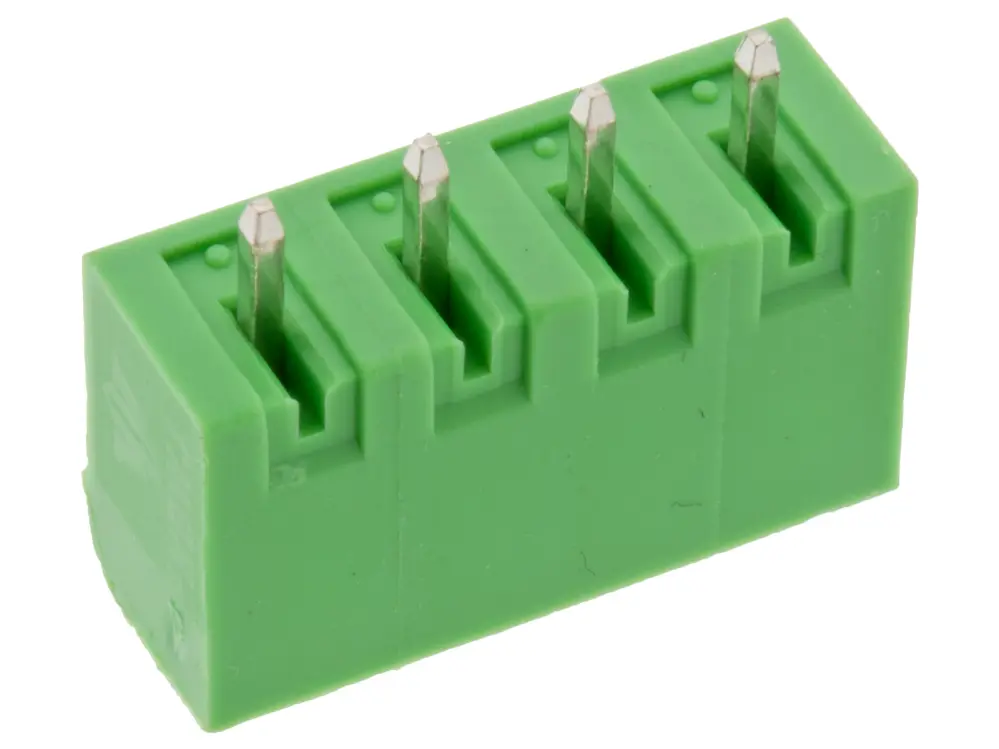

Vertical male PCB pin header for connection to a pluggable female (sockt) terminal block.

Specifications:

  • Number of poles: 4
  • Type: Male (pin)
  • Pitch: 5.08 mm
  • Rated voltage: 300 VAC
  • Rated current: 10 A
  • Temperature range: -40 to +105 °C
  • Contact resistance: max. 20 mOhm
  • Material: PA66 (Polyamide 66)
  • Flammability rating: UL94 V-0

Technical data

Gender
Male
Orientation
Straight
Pitch
5.08
Poles
4
Termination
Stift

  • SKU:

    41017486

  • MPN:

    NKE - WJ2EDGVC-5.08-04P

  • HS / TARIC:

    8536693000
