Product description

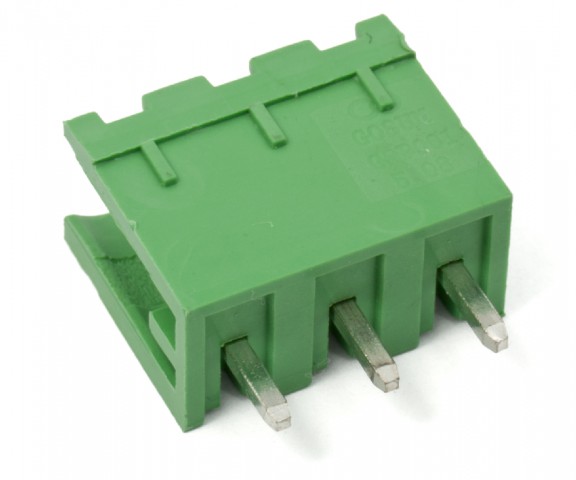

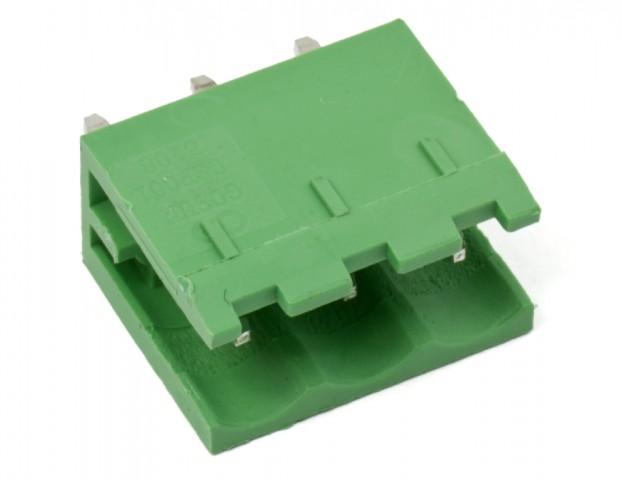

Vertical male PCB pin header for connection to a pluggable female (sockt) terminal block. The connector has open sides, allowing multiple headers to be stacked side by side. For example, one 2-pin header and one 3-pin header can be combined with a 5-pin pluggable female (socket) terminal block.
Specifications:
- Number of poles: 3
- Type: Male (pin)
- Pitch: 5.08 mm
- Rated voltage: 300 VAC
- Rated current: 10 A
- Temperature range: -40 to +105 °C
- Contact resistance: max. 20 mOhm
- Material: PA66 (Polyamide 66)
- Flammability rating: UL94 V-0
