Product description

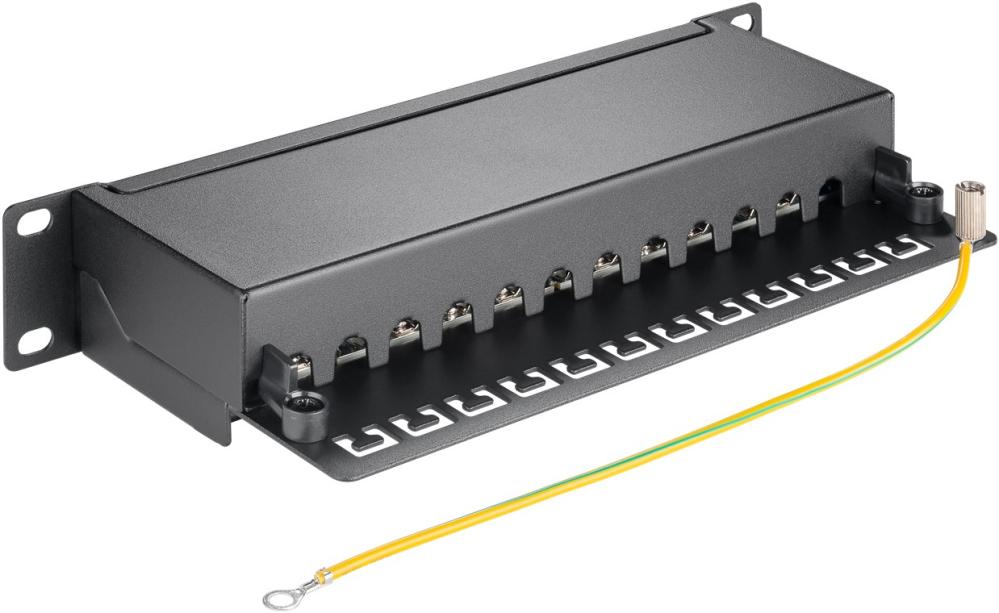

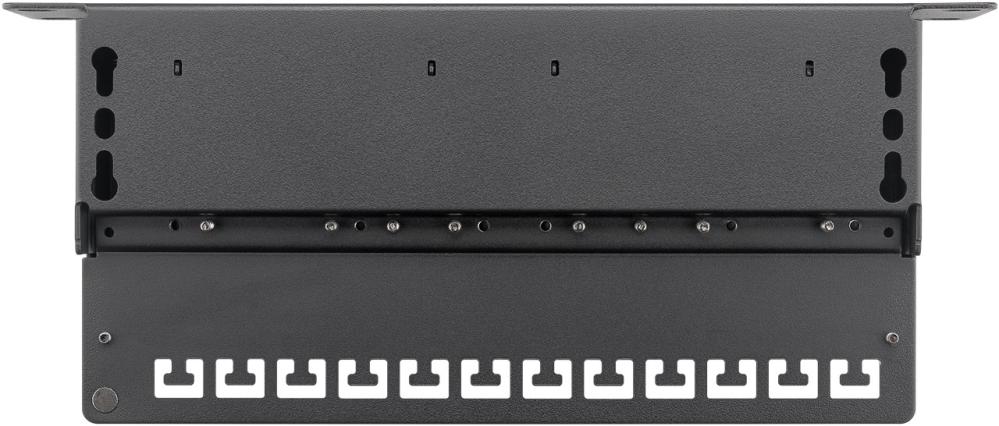

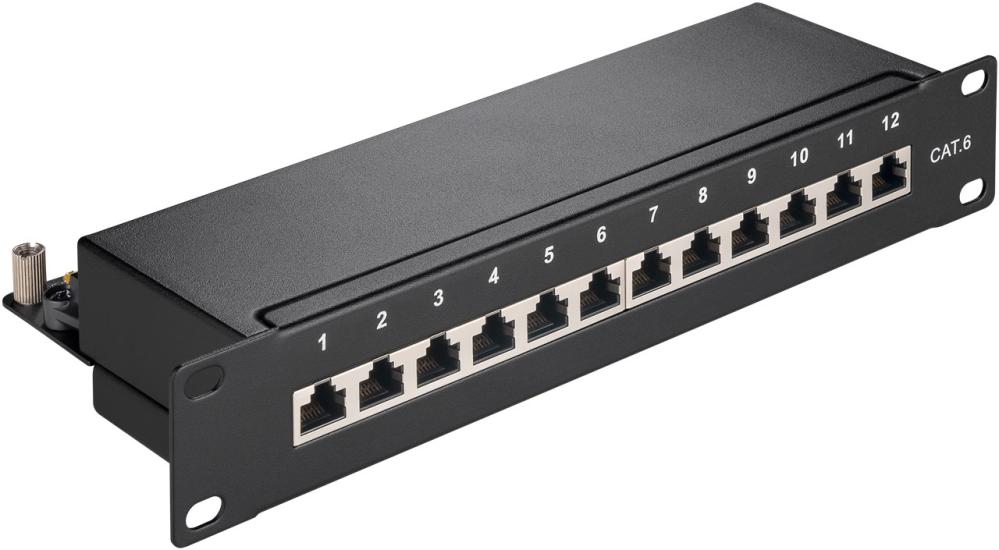

10-inch Cat 6 patch panel with 12 ports. Patch panel for installation in a 10-inch rack, 1U (one height unit). The termination blocks are of IDC type (solder-free, screw-free, stripping-free). Termination is performed using a punch-down tool, for example 41010613 or 41032546. The black metal housing provides good mechanical durability and long service life. Suitable for residential and enterprise networks for managing a large number of network connections.
Specifications:
- Category: CAT 6
- For shielded (STP) or unshielded (UTP) installation
- Number of ports: 24 × RJ45 sockets (8P8C)
- Bandwidth: 250 MHz (suitable for up to 1 Gbps)
- Panel height: 1U (43.8 mm)
- Width: 10 inches
- Mounting depth: 108 mm
- Wiring scheme: 568 A/B

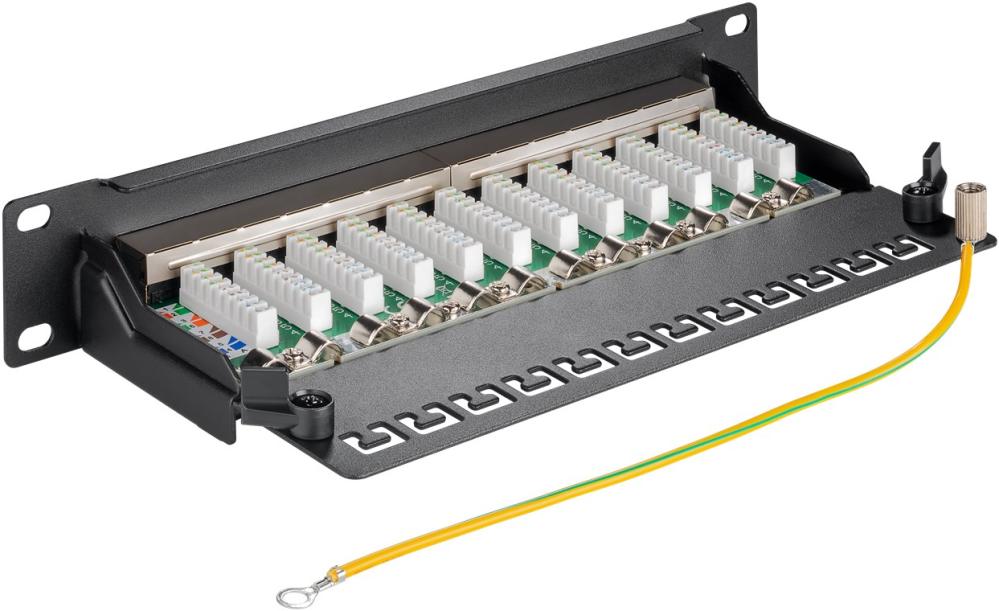

- Termination type: IDC for punch-down tool
- Conductor size: AWG 22–26 (solid), copper or CCA
- Color: black
- Dimensions (W × H × D): 258 × 44.2 × 108 mm
