Product description

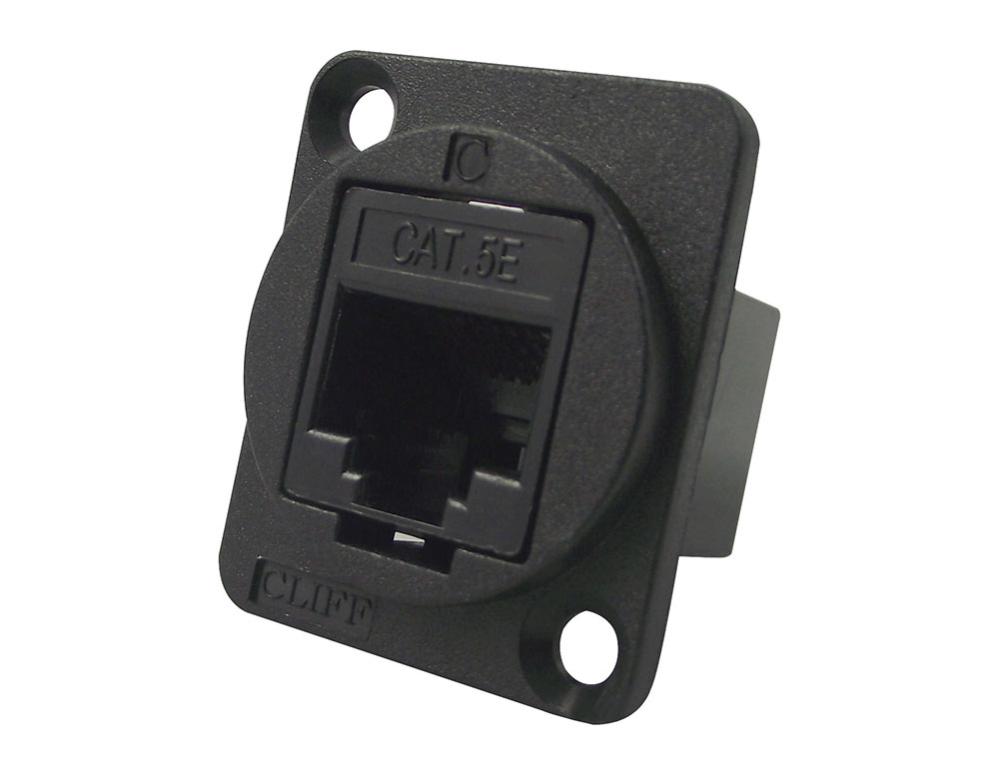

The CLIFF CP30220 is a Cat-5e RJ45 feedthrough coupler with two RJ45 connectors (8p8c) female. Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s (up to Gigabit Ethernet). Designed for panel mounting. Phosphor bronze metal contacts with gold plating. Performance and compatibility: CP30220 complies with Cat-5e standards including ISO/IEC 11801 and EN 50173, as well as ANSI/TIA/EIA-568B.2. The operating temperature range is approximately -10 °C to +60 °C. Operation at AC voltage up to 125 VAC RMS with a maximum current of 1.5 A is specified in the documentation.
Pre-assembly and assembly: the connector is equipped with a flange with two mounting holes measuring 19×24 mm for hole spacing. It can be mounted from either the front or the rear through the panel, and it has a low rear profile.
