Product description

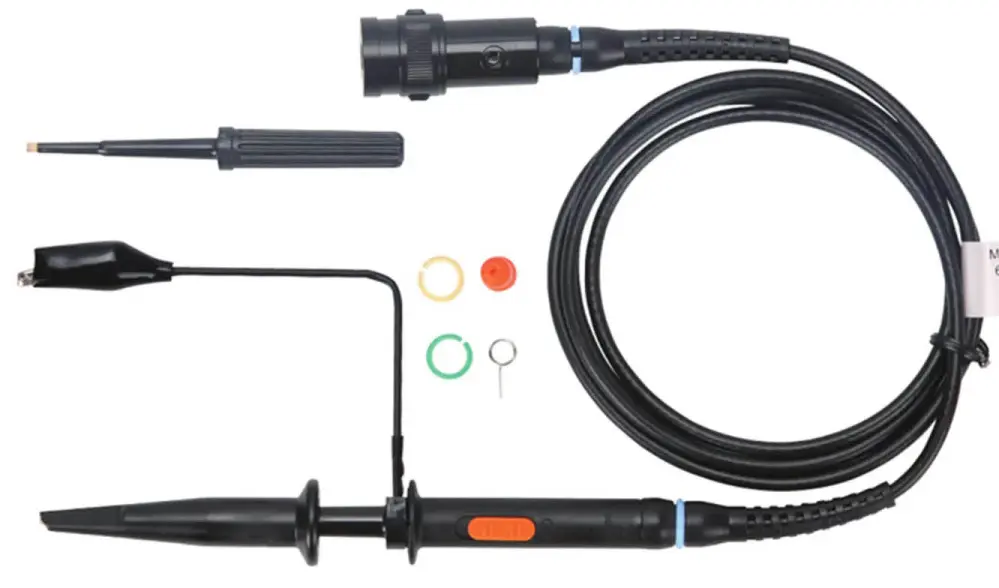

300 MHz passive oscilloscope probe. Suitable for any types of oscilloscopes with BNC connection. High performance, easy to use with a high-quality construction. Adjustable between x1 and x10.
Specifications:
Length: 1.3m
Attenuation: 1:1 and 10:1
Bandwidth: 6MHz (1:1), 300MHz (10:1)
Input resistance: 1Mohm (1:1) and 10Mohm (10:1)
Input capacitance: 85-115pF (1:1) or 14.5-17.5pF (10:1)
Maximum input voltage (peak): <200V (1:1) <600V (10:1)
Specifications:
Length: 1.3m
Attenuation: 1:1 and 10:1
Bandwidth: 6MHz (1:1), 300MHz (10:1)
Input resistance: 1Mohm (1:1) and 10Mohm (10:1)
Input capacitance: 85-115pF (1:1) or 14.5-17.5pF (10:1)
Maximum input voltage (peak): <200V (1:1) <600V (10:1)
