OBD2 to DB9 cable for e.g. H-CAN

Art no: 41010341

259 SEK

Including 25% VAT

In stock, 7 pcs. Leveranstid ca 1-3 vardagar

Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

Product description

OpenClose

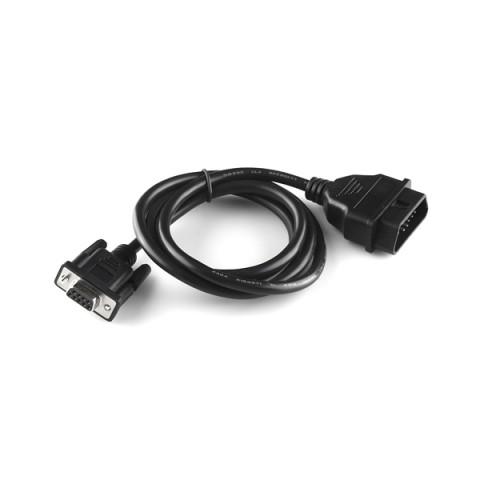

OBD2 to DB9 Cable – 1.5 metres

Cable for connecting a vehicle's OBD-II port to a device with a DB9 connector. Supports OBD2 protocols such as CAN, ISO 9141-2, and J1850. Suitable for automotive electronics, diagnostics, and data logging.

Not intended for direct connection to an RS-232 port. Requires compatible OBD-II hardware.

Pinout (OBD-II → DB9):

J1850 BUS+ 2 → 7
Chassis Ground 4 → 2
Signal Ground 5 → 1
CAN High J-2284 6 → 3
ISO 9141-2 K Line 7 → 4
J1850 BUS- 10 → 6
CAN Low J-2284 14 → 5
ISO 9141-2 L Line 15 → 8
Battery Power 16 → 9
