Product description

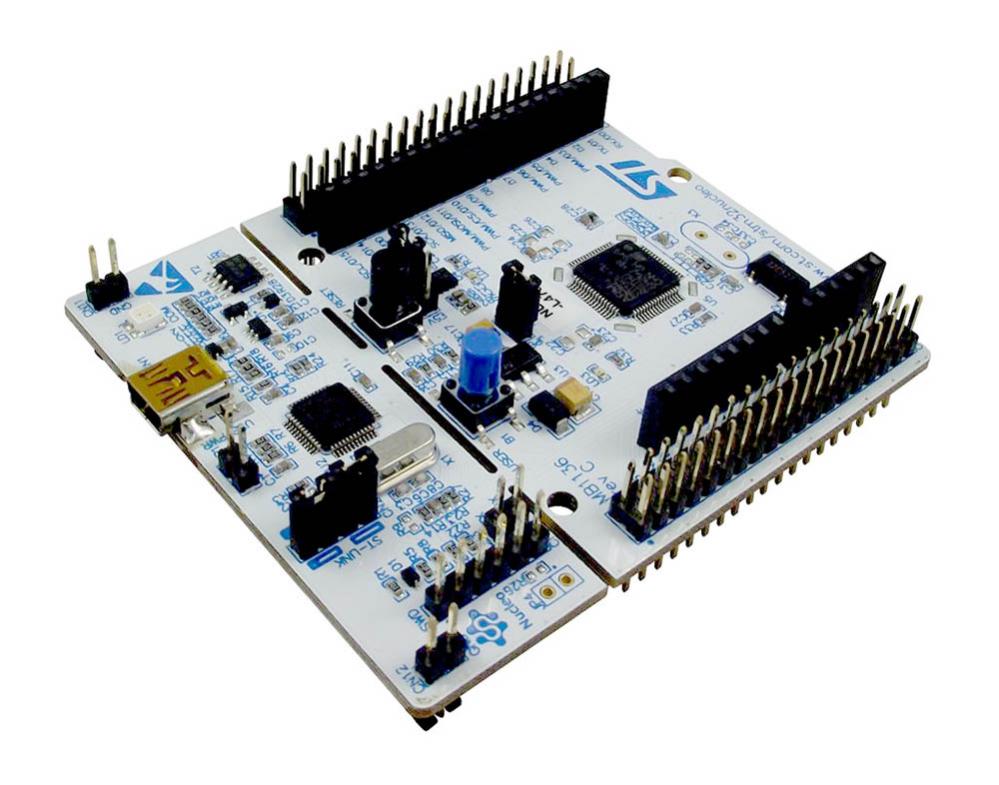

NUCLEO-L476RG is a development board in STMicroelectronics' STM32 Nucleo-64 series, based on the STM32L476RGT6 microcontroller in an LQFP64 package. The board features an integrated ST-LINK/V2-1 debugger/programmer and therefore does not require a separate programming or debug probe.
The board features Arduino Uno V3 connectivity as well as ST morpho pin headers that provide access to the STM32 microcontroller's I/Os. It can be powered via the ST-LINK USB VBUS or from external power sources. The STM32Cube MCU Package includes software libraries and examples for the board.
Specifications:
- Manufacturer: STMicroelectronics
- Model: NUCLEO-L476RG
- Series: STM32 Nucleo-64
- Microcontroller: STM32L476RGT6
- Package: LQFP64
- Flash memory: 1 MB
- Debugger/programmer: Integrated ST-LINK/V2-1
- ST-LINK USB connection: USB Mini-B
- Expansion connector: Arduino Uno V3
- Expansion connector: ST morpho
- User LED: 1
- Push buttons: 1 user button, 1 reset button
- Crystal oscillator: 32.768 kHz
- Power supply: ST-LINK USB VBUS or external power source
- Development environments: IAR Embedded Workbench, MDK-ARM, STM32CubeIDE
