Product description

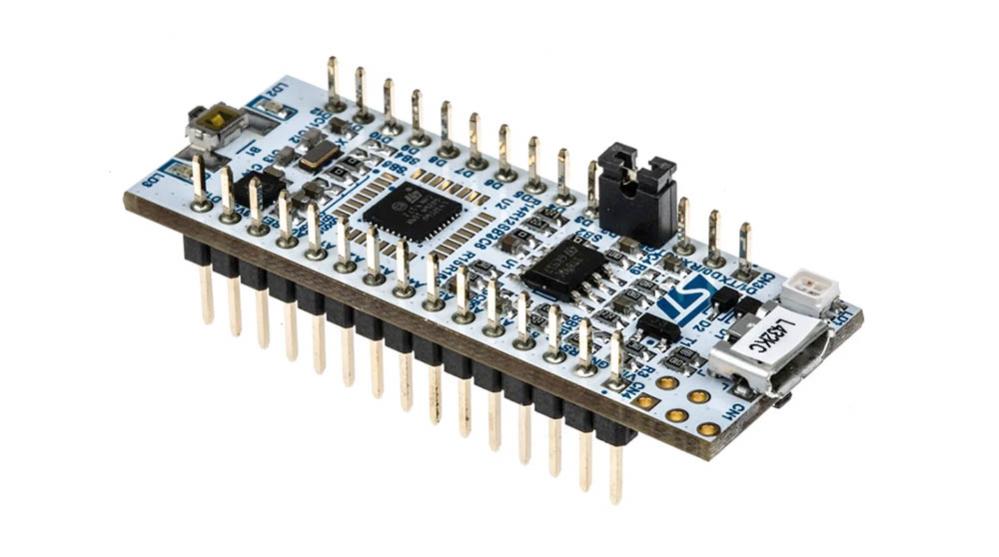

NUCLEO-L432KC is a compact development board in the STM32 Nucleo-32 series, based on the STM32L432KCU6 microcontroller. The board features Arduino Nano V3-compatible connectors, allowing it to be expanded with compatible expansion boards.
The board has an integrated ST-LINK/V2-1 for programming and debugging, eliminating the need for a separate programmer or debug probe. The ST-LINK supports features including a Virtual COM port and mass storage functionality. The board can be powered via the ST-LINK USB VBUS or from an external power source.
Specifications:
- Manufacturer: STMicroelectronics
- Model: NUCLEO-L432KC
- Series: STM32 Nucleo-32
- Microcontroller: STM32L432KCU6
- MCU family: STM32L4
- MCU package: 32 pins
- Flash memory: 256 kB
- Programmer/debugger: Integrated ST-LINK/V2-1
- USB connection: Micro-AB, for ST-LINK
- Expansion connector: Arduino Nano V3
- User LED: 1
- Reset button: 1
- Power supply: ST-LINK USB VBUS or external power source
- Development environments: IAR Embedded Workbench, MDK-ARM and STM32CubeIDE
- Software support: STM32Cube MCU Package
