Product description

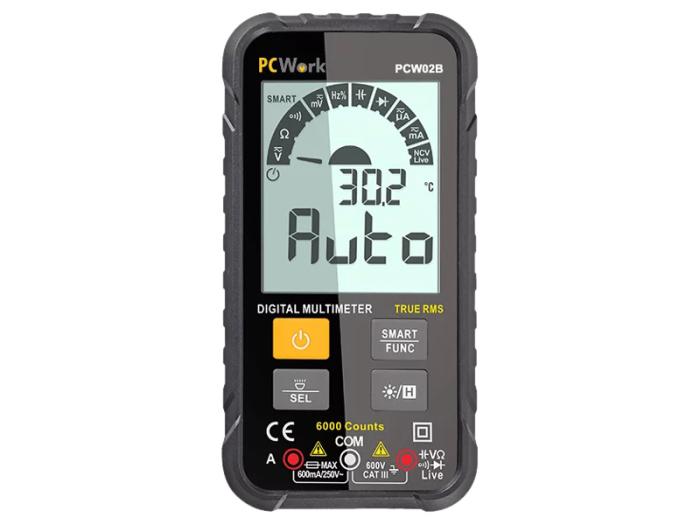

Digital multimeter with graphic display. Suitable for hobbyists, students and technicians who want a competent multimeter in a small format. Autoranging.

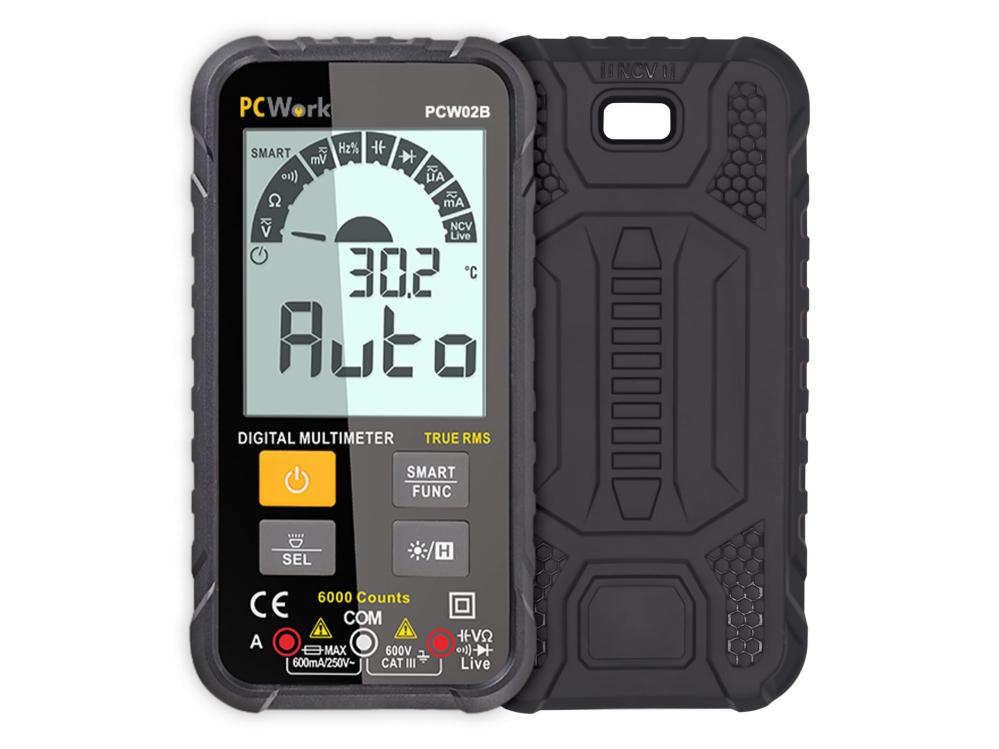

The multimeter is shock-protected with a removable rubber shell. Built-in LED work light. Non-contact voltage indicator for, e.g. checking whether cables are live or finding wiring in walls. Also measures room temperature.

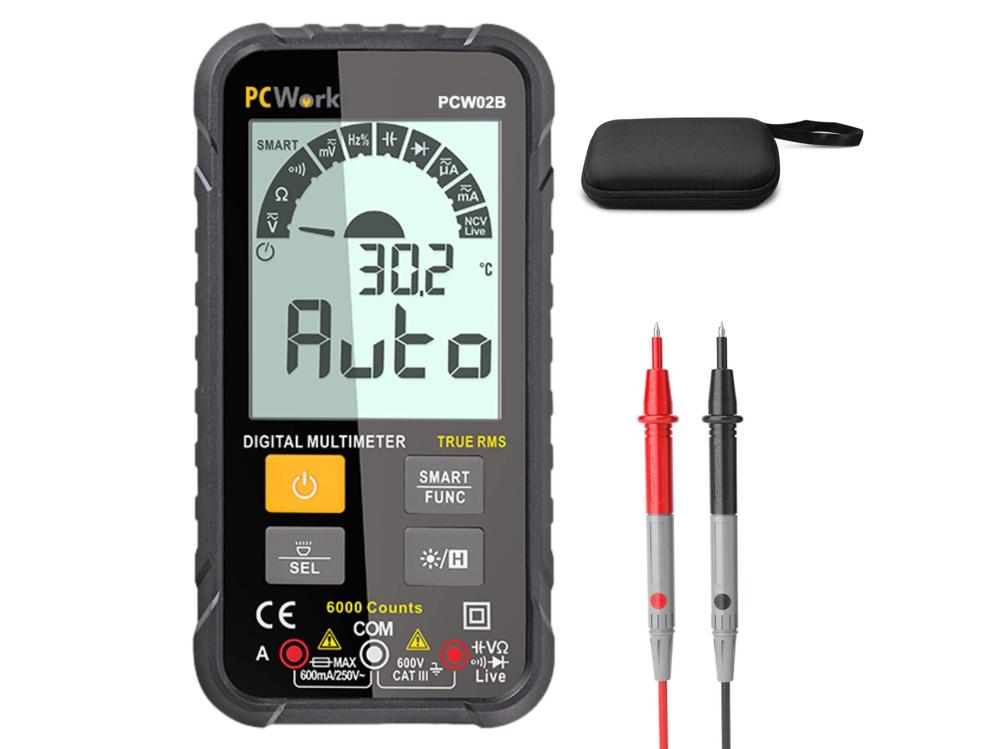

Supplied with battery, practical storage case and test leads.
Features:
- Autorange
- AC/DC voltage
- AC/DC current
- Measures effective value (True RMS)
- Non-contact voltage measurement (NCV)
- Continuity with buzzer
- Measures capacitors
- Diode test
- Measures frequency and duty cycle
- Data hold function
- Automatic shutdown saves batteries (can be turned off)
- Built-in flashlight
- Automatically warns of incorrect cable connection

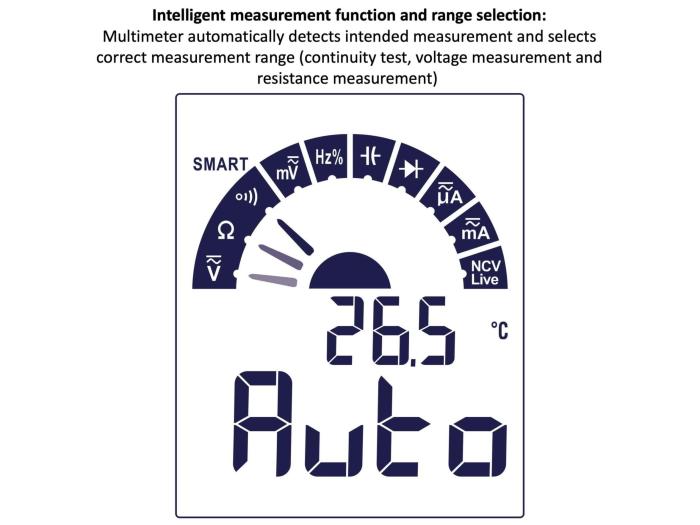

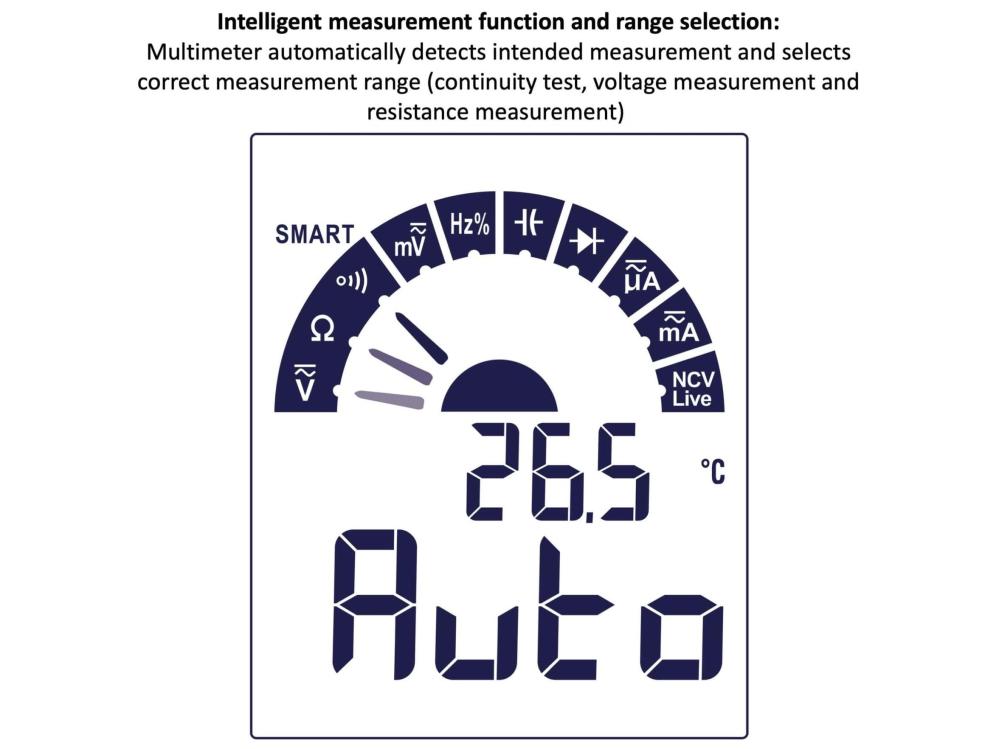

- Can automatically select mode (continuity, voltage or resistance)
- Measures room temperature
Specifications:
- Dimensions: 133 x 68 x 19
- Weight: 135 g
- Safety rating: CAT III 600V
- Scale length: 4000 – 3 3/4 digits
- Battery: 2x AAA
| Range DCV | Resolution | Inaccuracy |
| 60mV | 0.01mV | ±(0.5% +3 digits) |
| 600mV | 0.1V | |
| 6V | 0.001V | |
| 60V | 0.01V | |
| 600V | 0.1V | |
| Range ACV | Resolution | Inaccuracy |
| 60mV | 0.01mV | ±(0.5% +3 digits) |
| 600mV | 0.1V | |
| 6V | 0.001V | |
| 60V | 0.01V | |
| 600V | 0.1V | |
| Range DCA | Resolution | Inaccuracy |
| 6000μA | 1μA | ±(1.2% + 5 digits) |
| 60mA | 0.01mA | |
| 600mA | 0.1mA | |
| Range ACA | Resolution | Inaccuracy |
| 6000μA | 1μA | ±(1.5% + 5 digits) |
| 60mA | 0.01mA | |
| 600mA | 0.1mA | |
| Range resistance | Resolution | Inaccuracy |
| 600Ω | 0.1Ω | ±(1.0% + 5 digits) |
| 6kΩ | 0.001kΩ | |
| 60kΩ | 0.01kΩ | |
| 600kΩ | 0.1kΩ | |
| 6MΩ | 0.001MΩ | |
| 60MΩ | 0.01MΩ | |
| Range frequency | Resolution | Inaccuracy |
| 10Hz | 0.001Hz | ±(1.0% +5 digits) |
| 100Hz | 0.01Hz | |
| 1000Hz | 0.1Hz | |
| 10kHz | 0.001kHz | |
| 100kHz | 0.01kHz | |
| 1000kHz | 0.1kHz | |
| Duty cycle | Resolution | Inaccuracy |
| 10MHz | 0.001MHz | ±(3.0% +5 digits) |
| 1~99% | 0.001 |
