Product description

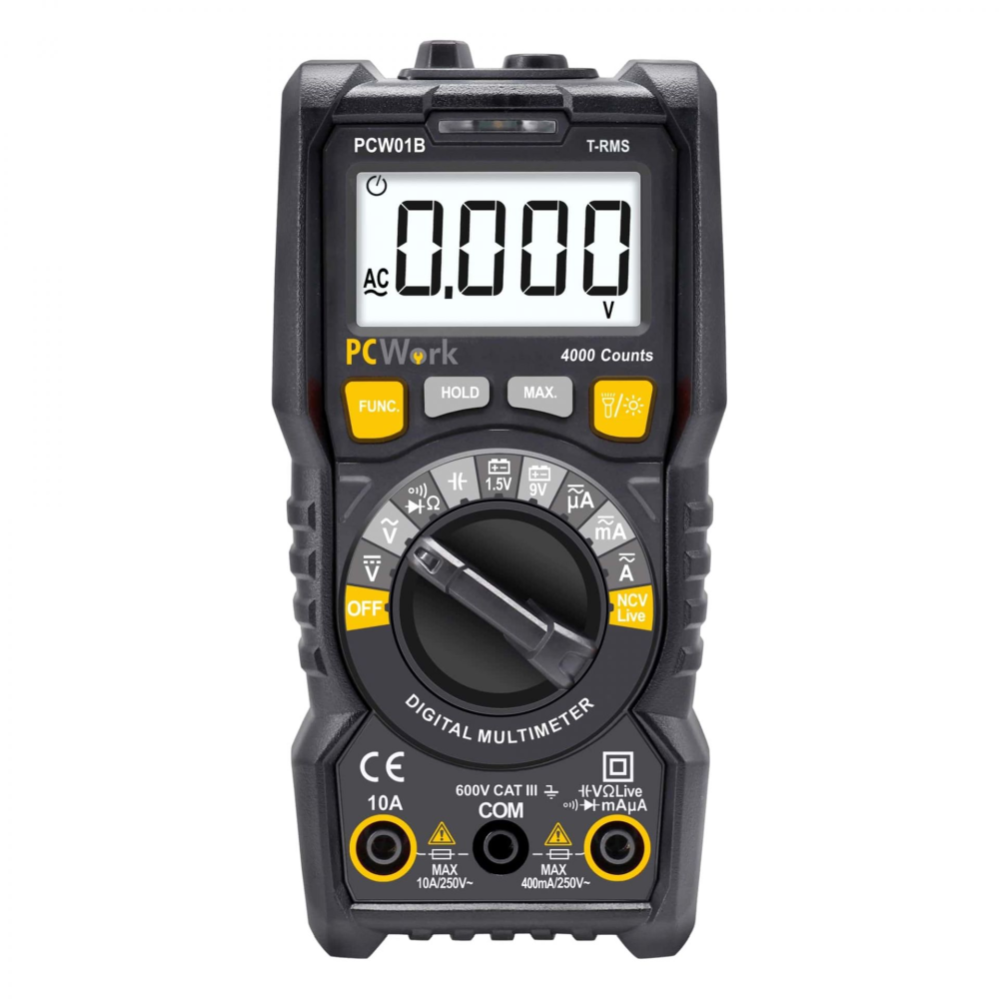

PCW01B is a robust and simple digital multimeter (DMM) with True RMS and automatic range setting (autorange).
Large backlit display and built-in flashlight. Folding stand, hole for hanging on a hook, built-in storage for the probes and automatic shutdown provide a pleasant user experience.

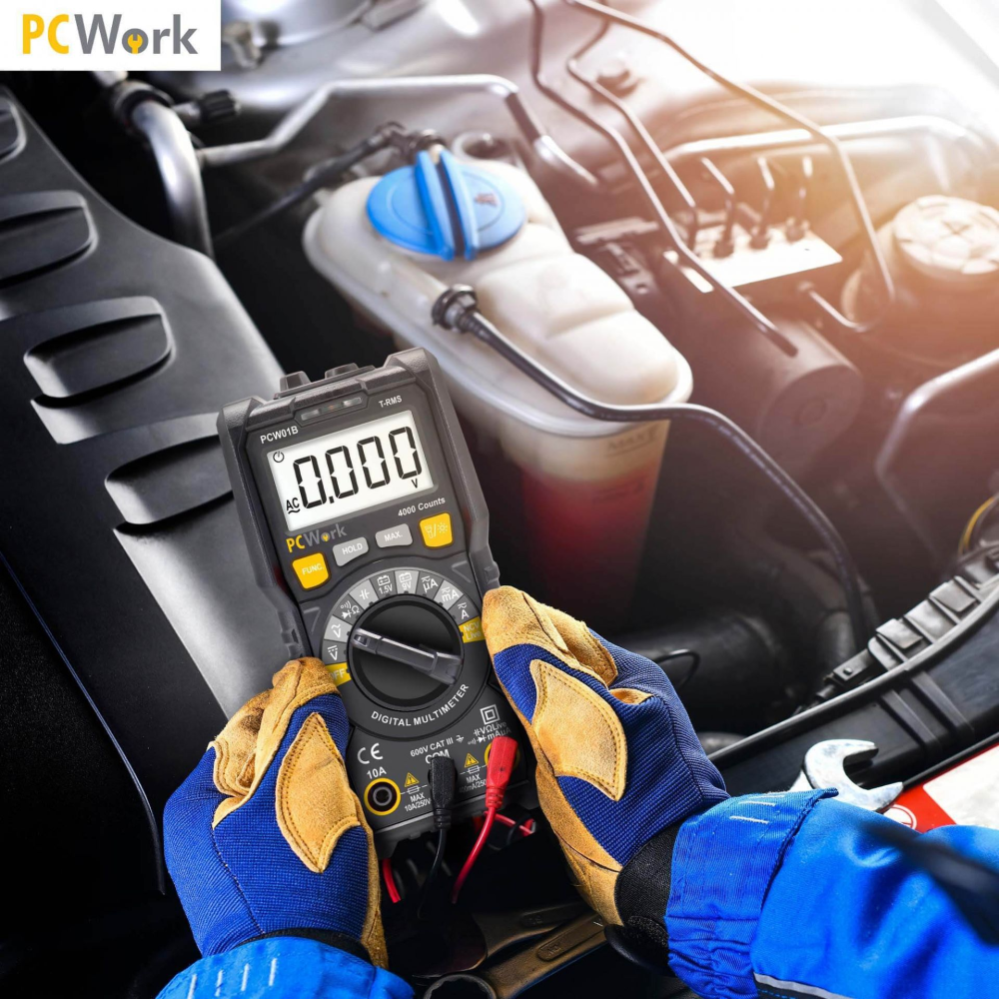

Suitable for troubleshooting, education, repair work, etc. Suitable for beginners, for schools, to have in the toolbox, car, boat, for hobbyists or professional use. A solid second or third multimeter for those who already have more expensive tools.

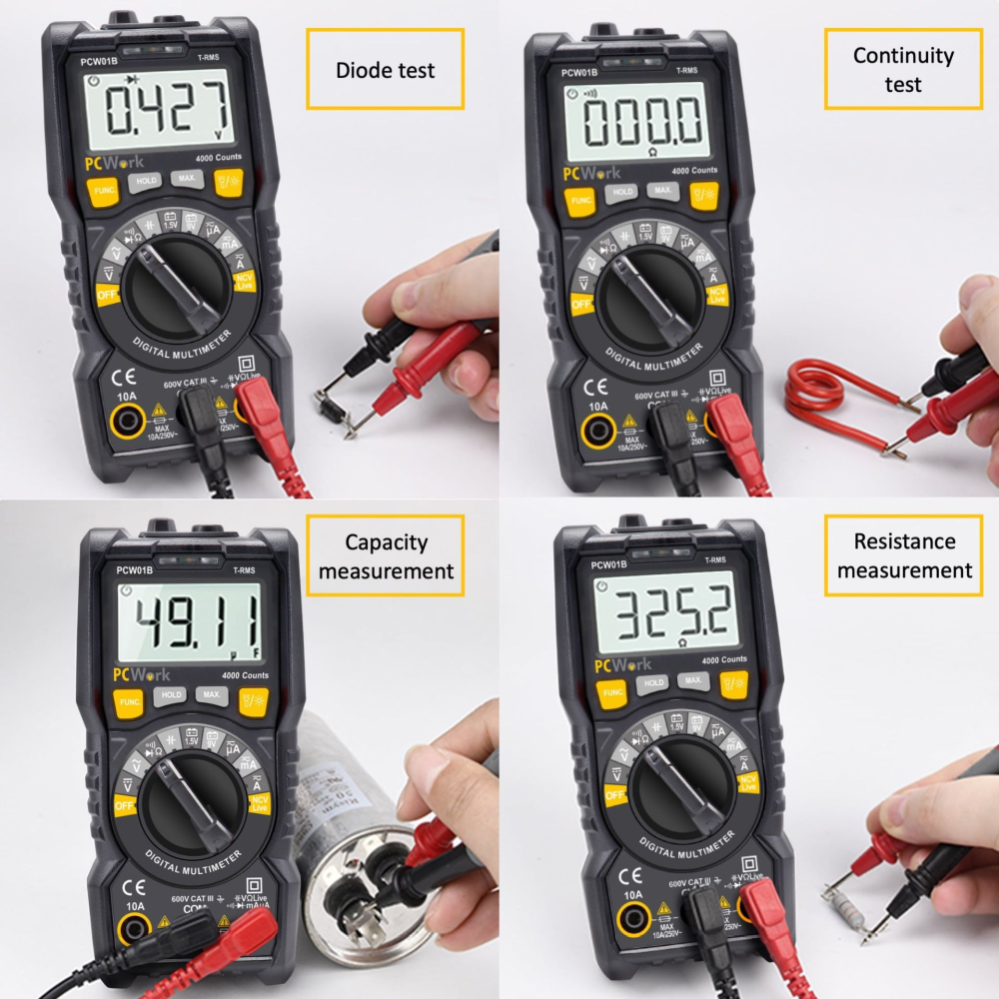

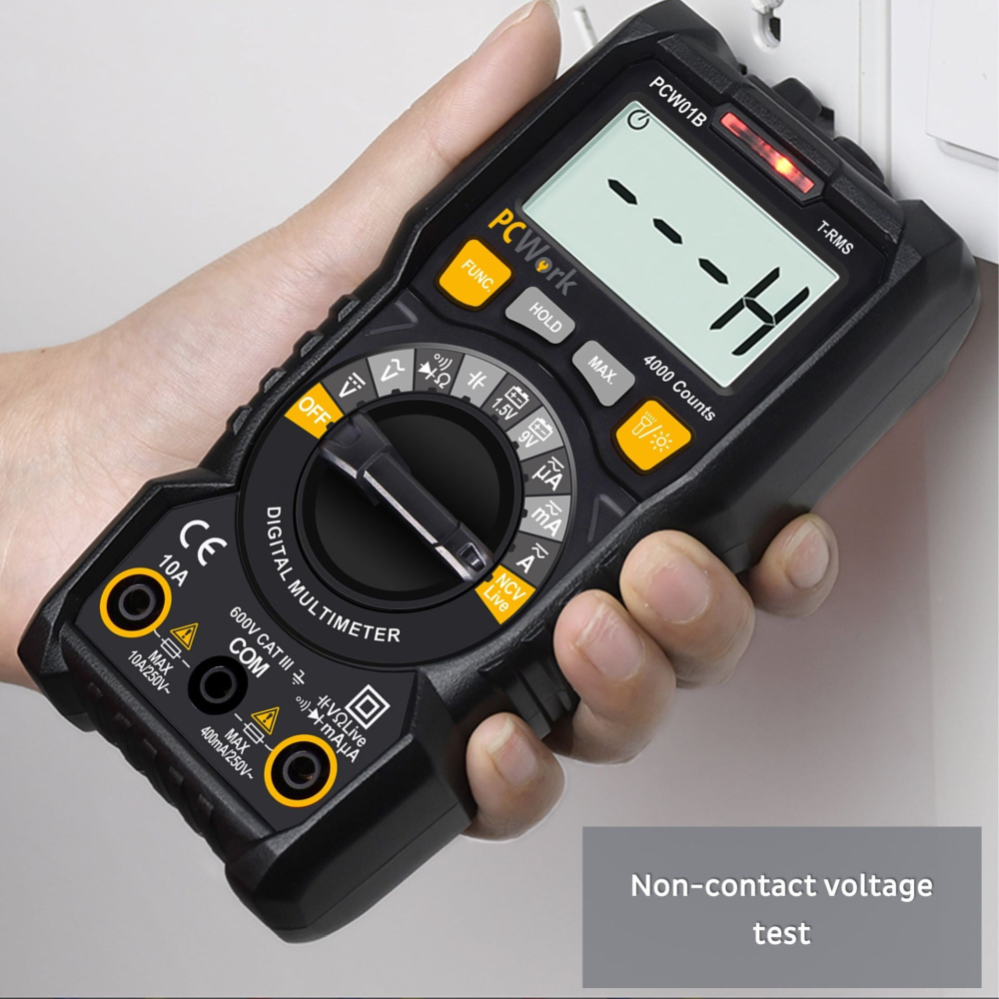

Measures DC voltage, AC voltage, current, resistance, capacitance, continuity. Also easily tests batteries (9V/1.5V) and diodes. A special NCV mode (Non Contact Voltage) can be used to e.g. find wiring in walls or check if power outlets are live.
4000 counts display (showing 0-3999) — 3 3/4 digits.

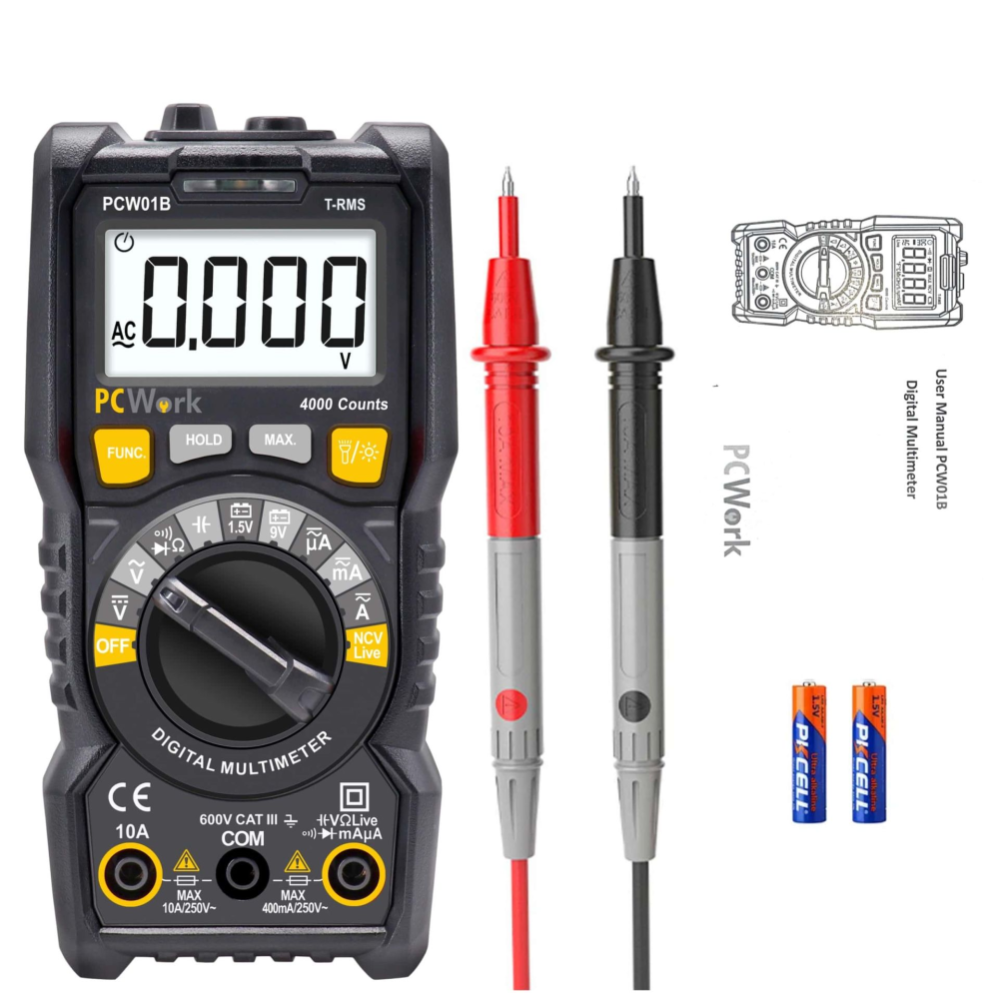

Measurement probes and batteries (2xAAA) are included, as well as a manual in several languages (including English).
Features:
- Autorange
- Measures effective value (True RMS)
- Contactless voltage measurement (NCV)
- Continuity with buzzer
- Measures capacitors
- Diode test
- Data hold function
- Max function
- Automatic shutdown
- Built-in flashlight
- Stand
Measurement ranges:
- Voltage DC: 400mV/4V/40V/400V/600V ±(0.5%+3)
- Voltage, AC: 400mV/4V/40V/400V/600V ±(1.0%+3)
- Current, DC: 400uA/4000uA/40mA/400mA/10A ±(1.2%+3)
- Current, AC: 400uA/4000uA/40mA/400mA/10A ±(1.5%+3)
- Resistance: 400Ω/4kΩ/40kΩ/400kΩ ±(1.0%+3); 4MΩ/40MΩ ±(1.2%+3)
- Capacitance: 40nF/400nF/4μF/40μF/400μF/4mF ±(4.0%+5)
Specifications:
- Dimensions: 151 x 75 x 48mm
- Weight: 220g
- Safety rating: CAT III 600V
- 4000 counts — 3 3/4 digits
- Batteries: 2x AAA
