Product description

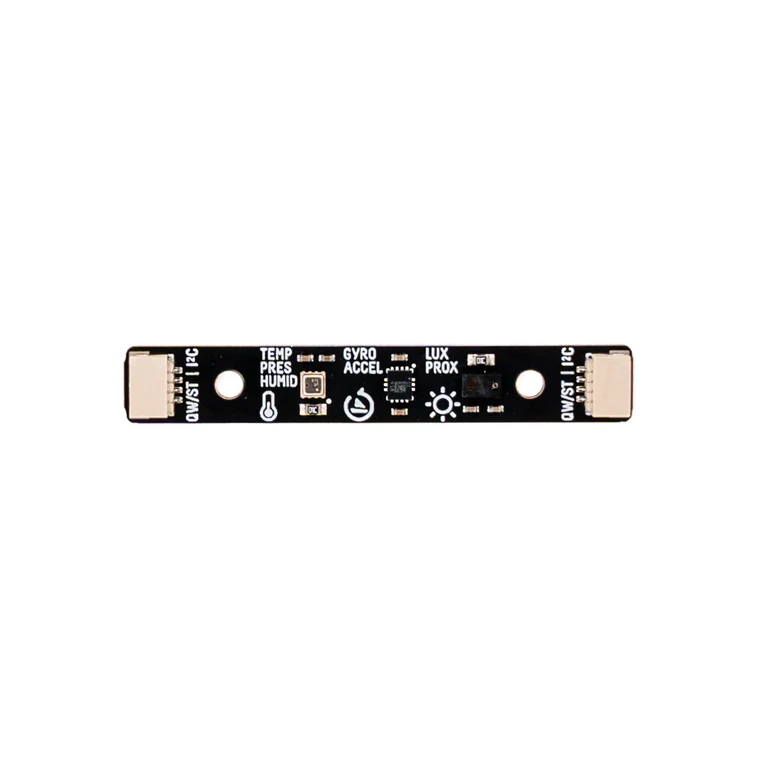

Compact sensor module with three integrated sensors for measuring temperature, atmospheric pressure, humidity, ambient light, proximity, orientation and motion. The module combines an environmental sensor, a light and proximity sensor, an accelerometer and a gyroscope.
All sensors communicate via I²C, and the module features two Qwiic connectors for easy connection.
Multi-Sensor Stick is compatible with Raspberry Pi and Raspberry Pi Pico. Pimoroni provides Python and MicroPython libraries as well as code examples for the sensors.
Specifications:
- Manufacturer: Pimoroni
- Part number: PIM745
- Type: Sensor module with three integrated sensors
- Interface: I²C
- Connections: 2x Qwiic
- Supply voltage: 3.3 V
- Compatibility: Raspberry Pi and Raspberry Pi Pico
Environmental sensor – Bosch BME280:
- Measurement functions: Temperature, atmospheric pressure and relative humidity
- I²C address: 0x76
Light and proximity sensor – Lite-On LTR-559ALS-01:
- Measurement functions: Ambient light and proximity
- Ambient light measurement range: 0.01–64000 lux
- Proximity detection range: Approximately 5 cm
- IR/UV filtering: Yes
- Light flicker suppression: 50/60 Hz
- I²C address: 0x23
Accelerometer and gyroscope – STMicroelectronics LSM6DS3TR-C:
- Accelerometer measurement ranges: ±2/±4/±8/±16 g
- Gyroscope measurement ranges: ±125/±250/±500/±1000/±2000 °/s
- Motion detection: Single and double tap, free fall and step counting
- I²C address: 0x6A
Other specifications:
- Mounting holes: M2.5
- Dimensions: 52 x 7.9 x 4.2 mm
