Servo and DC-motor driver for BBC micro:bit 3 channels

Art no: 41022536

Waveshare - Motor Driver for micro:bit

189 SEK

Including 25% VAT

Mängdrabatt:
1pcs = 189:- 4pcs = 718:20 10pcs = 1701:-

Quantity discount
Quantity	Price
1 till 3	189 SEK
4 till 9	179.55 SEK
10 till	170.10 SEK

In stock, 21 pcs. Leveranstid ca 1-3 vardagar

Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

Product description

OpenClose

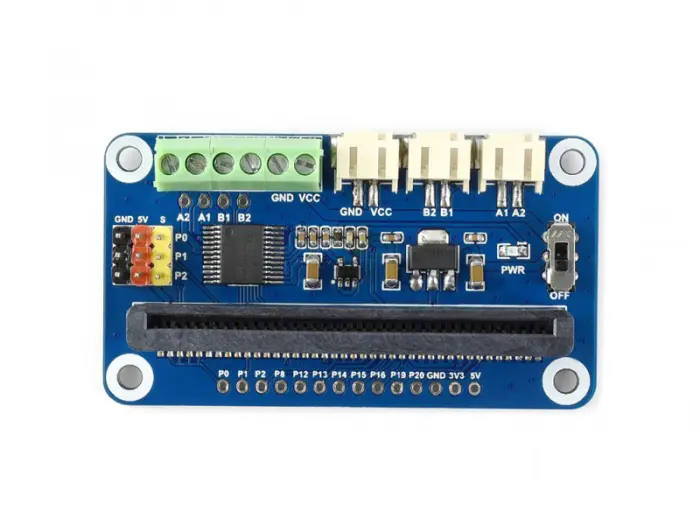

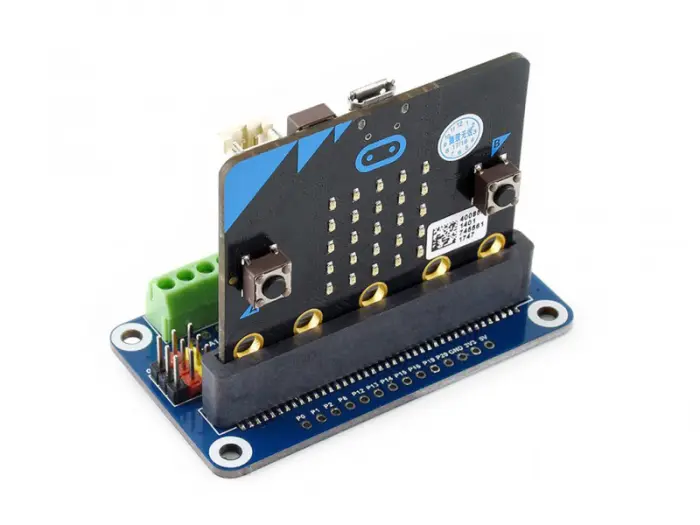

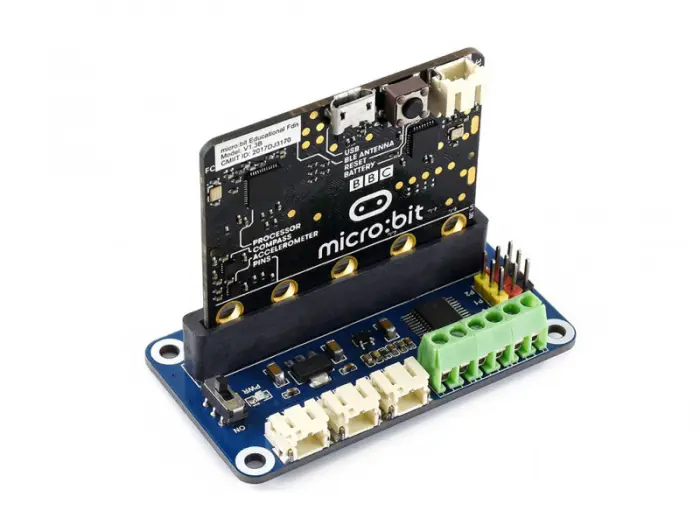

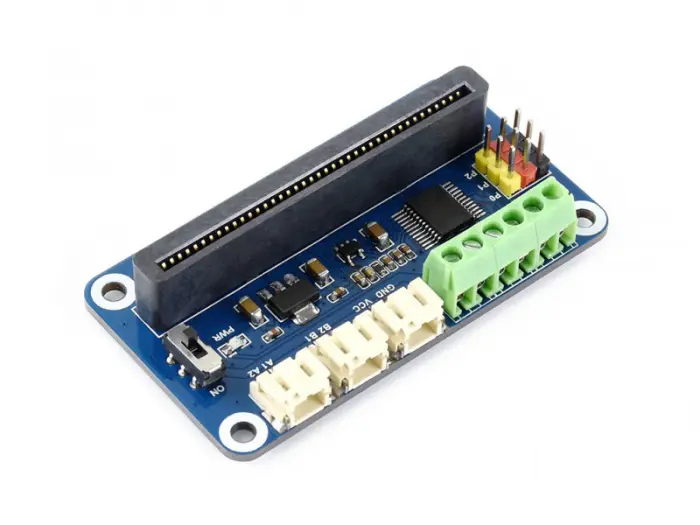

Servo and motor driver for BBC Micro:bit. Enables control of two DC motors and three servos. The module connects directly to the micro:bit edge connector and requires no soldering. Suitable for prototyping and mechanical projects. Based on the popular TB6612FNG H-bridge. The board is powered with 6–12 VDC for driving servos and motors. Logic levels are compatible with the micro:bit platform at 3.3 V. The board allows easy integration with micro:bit programming using graphical or text-based tools. The BBC micro:bit unit is not included.

Specifications:

Supply voltage (Vcc): 6–12 V via screw terminal
Max current for external motor drive: 3 A
Servo supply voltage: 5 V
Motor supply voltage: Vcc
DC motor connection: via screw terminal or JST-PH
Servo connection: standard servo connector
Logic level: 3.3 V
H-bridge IC: TB6612FNG
Number of DC motor outputs: 2
Number of servo connectors: 3

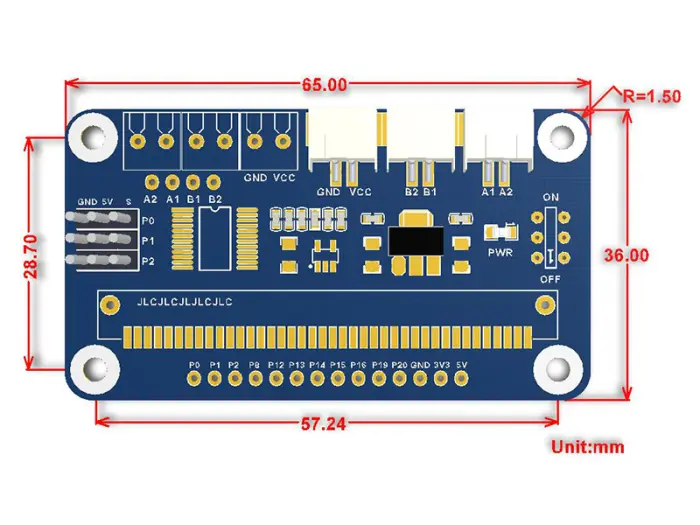

Dimensions: 65 x 36 mm
