Product description

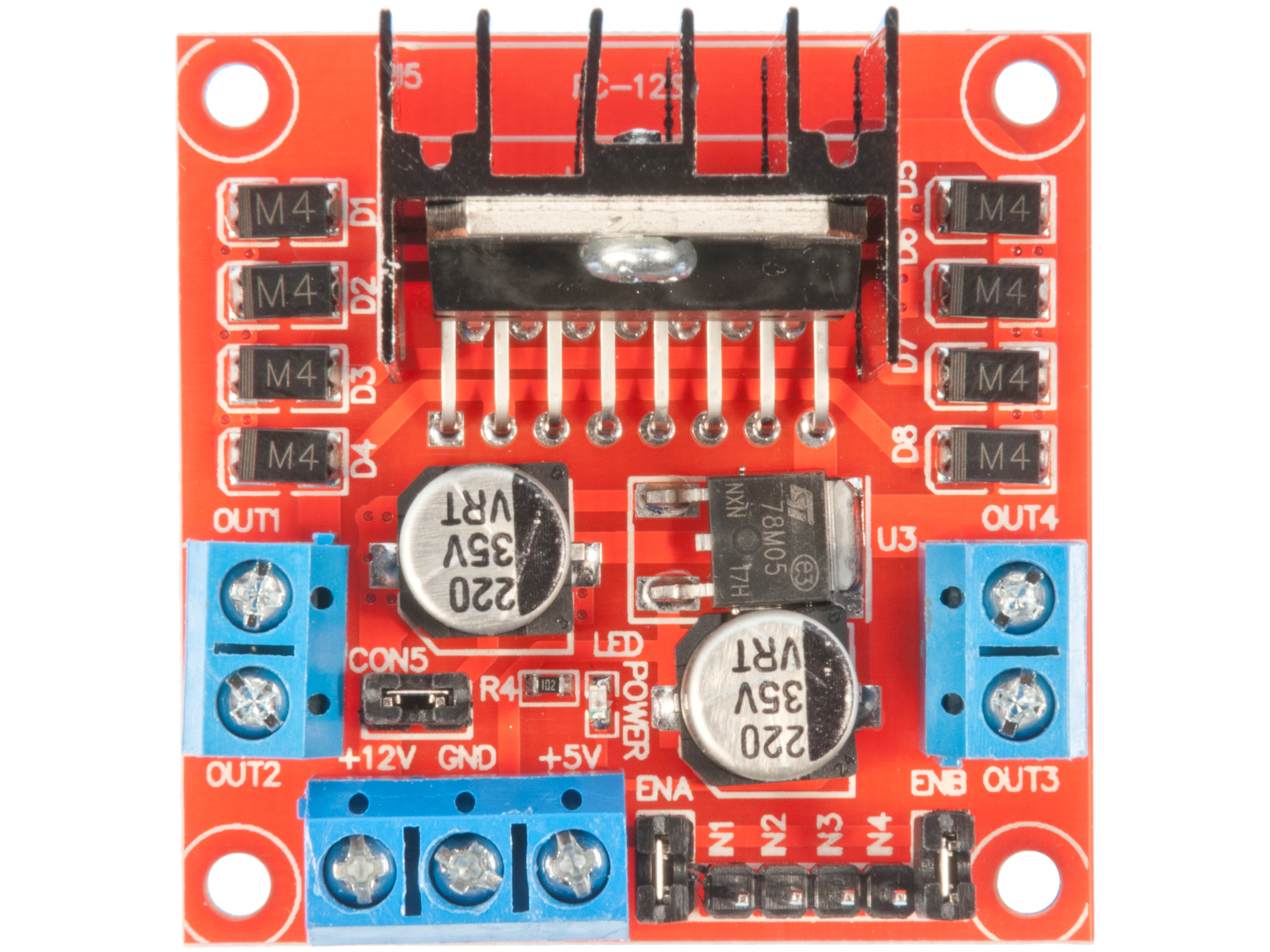

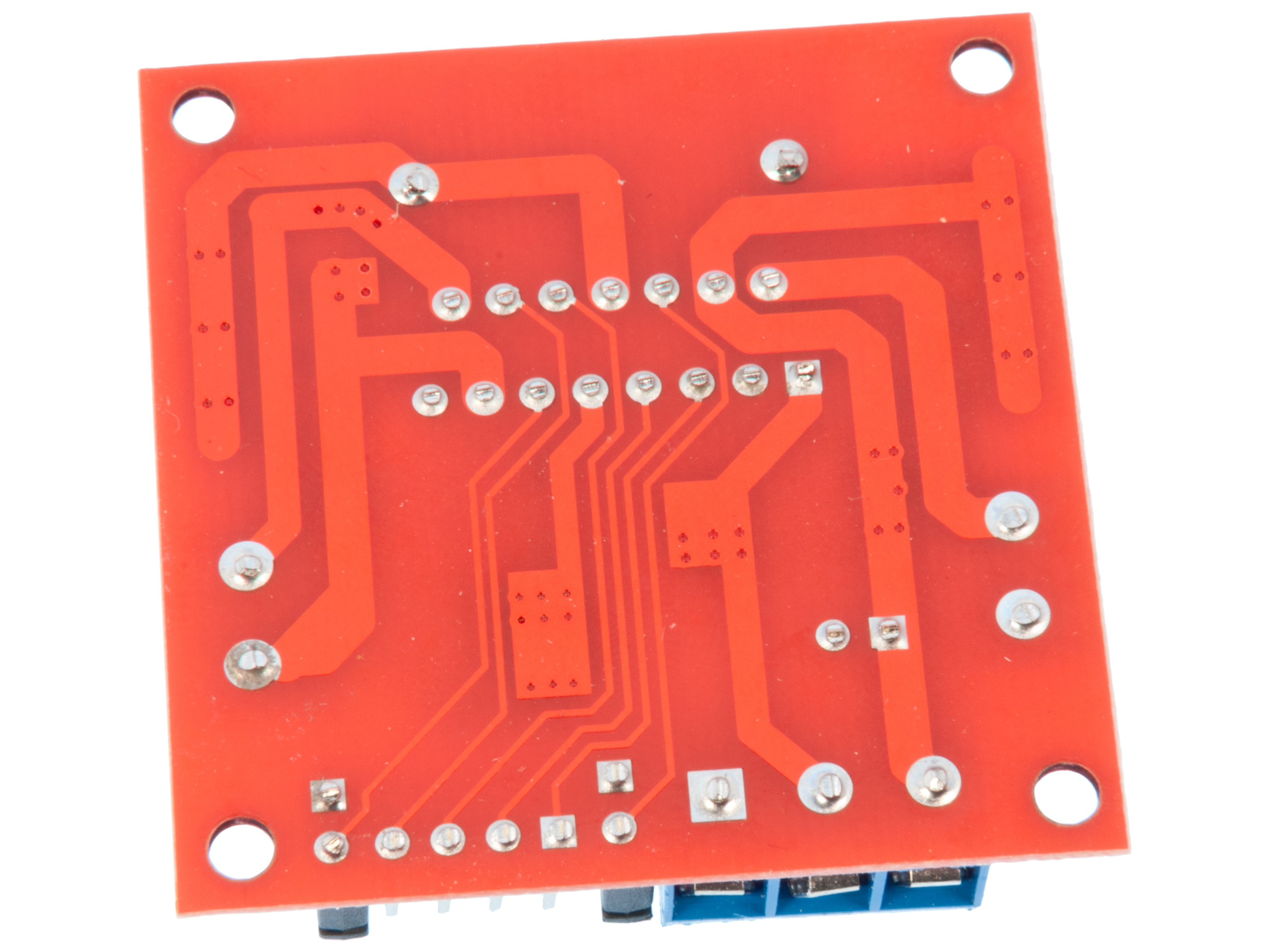

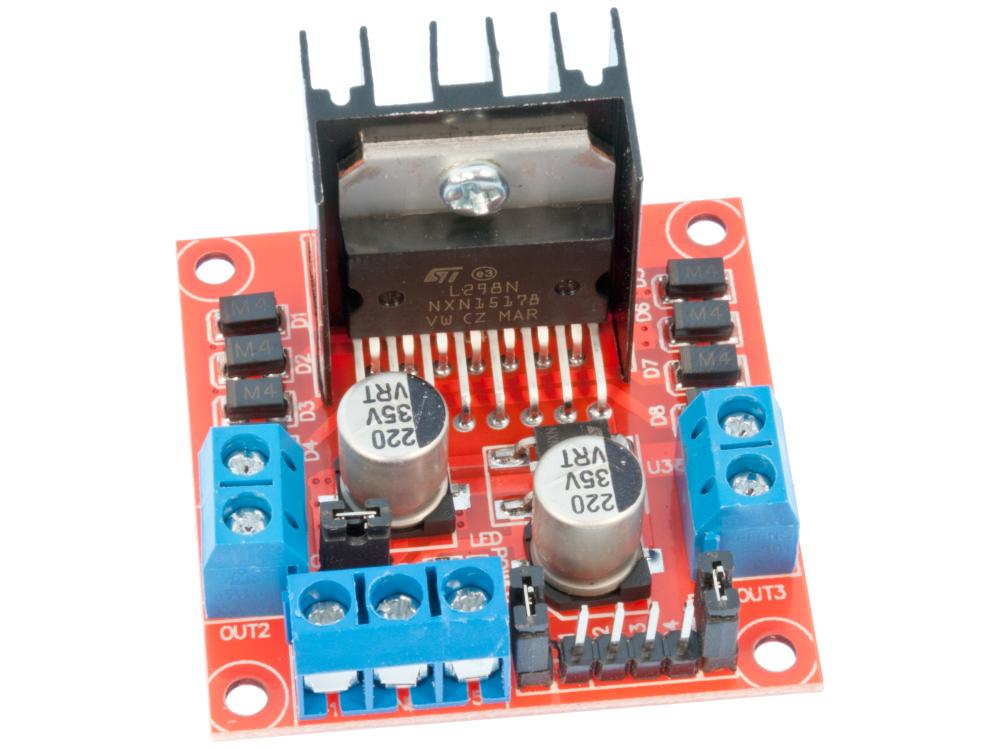

The L298N motor driver is a powerful and versatile driver for controlling and operating two DC motors or one stepper motor (bipolar). The module is a dual H-bridge with the proven L298N H-bridge driver, enabling precise control of motors in both directions of rotation with PWM. It is ideal for applications in robotics, automation technology, small conveyor belts, model building or education.
The board operates with a logic input voltage of 5 V and supports drive voltages from 5 V to 35 V, allowing both smaller and more powerful motors to be driven. The maximum output current per channel is 2 A, allowing a total output power of up to 25 W.
Integration with microcontrollers such as Arduino, Raspberry Pi or ESP32 is easy.
- Drive voltage (motor): 5 - 35 VDC
- Logic voltage: 5 V
- Drive capacity: 2x 2A
- Dimensions: 44 x 44 x 28mm
