Product description

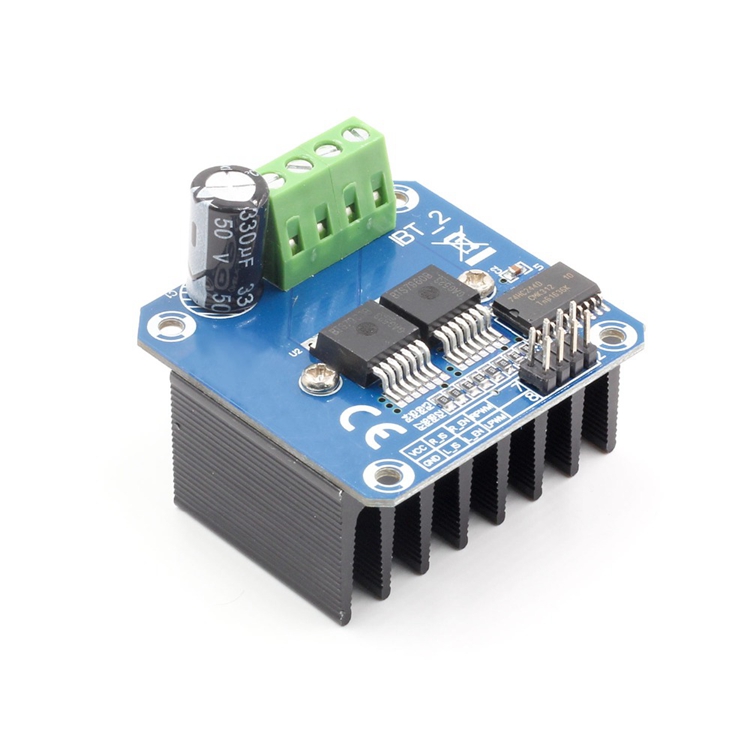

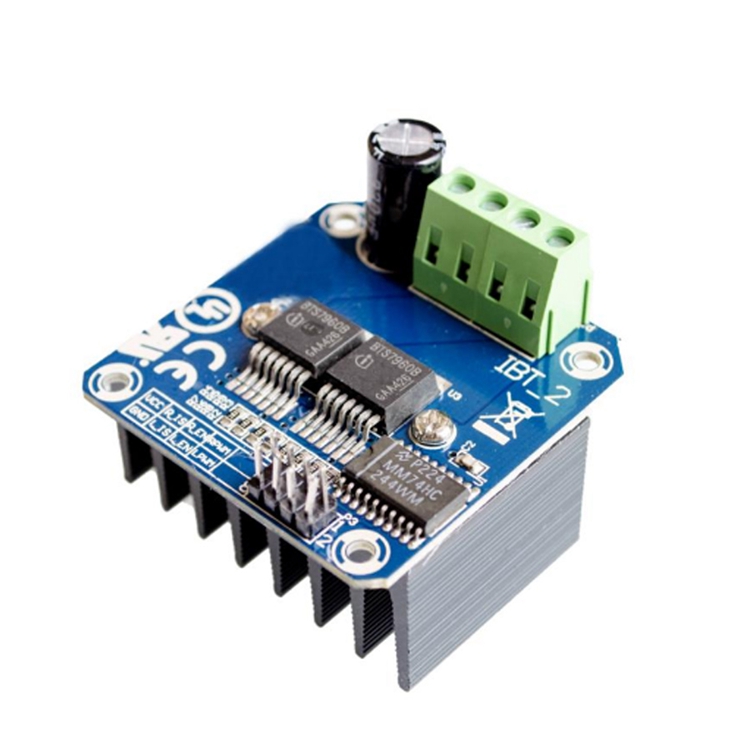

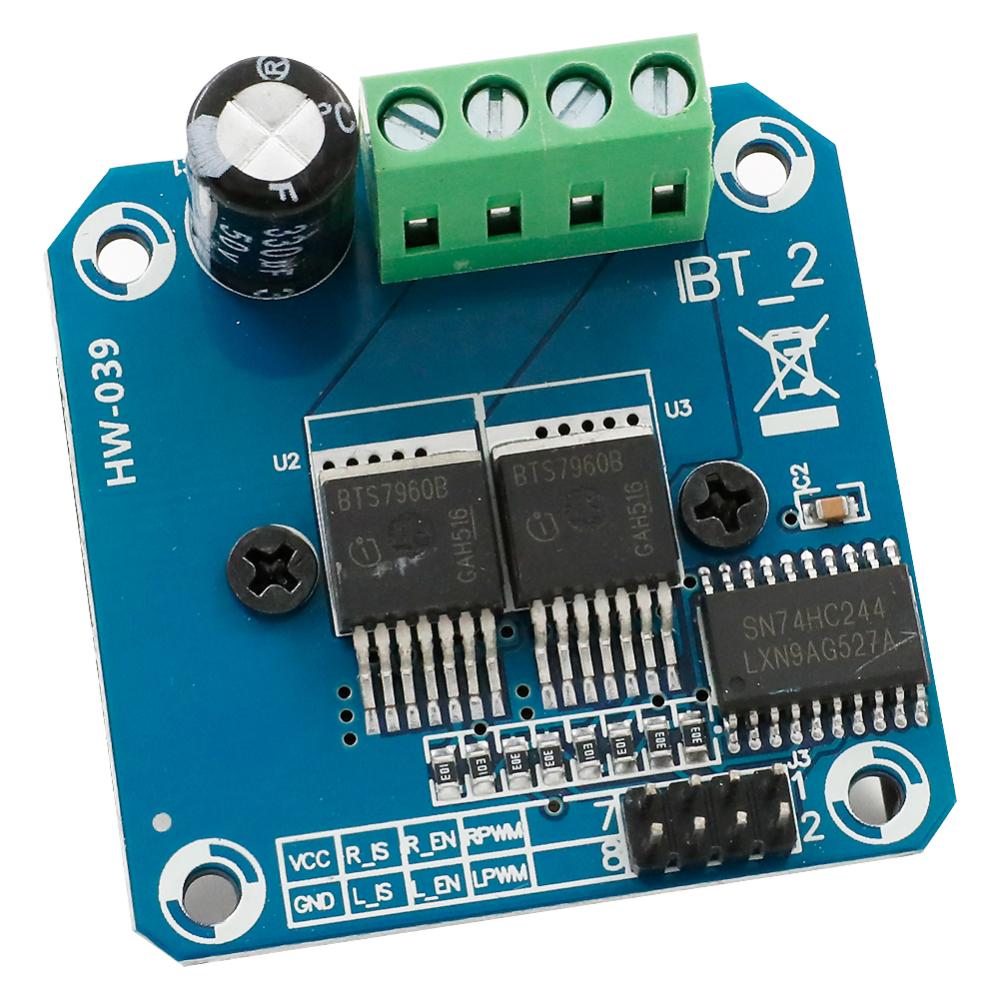

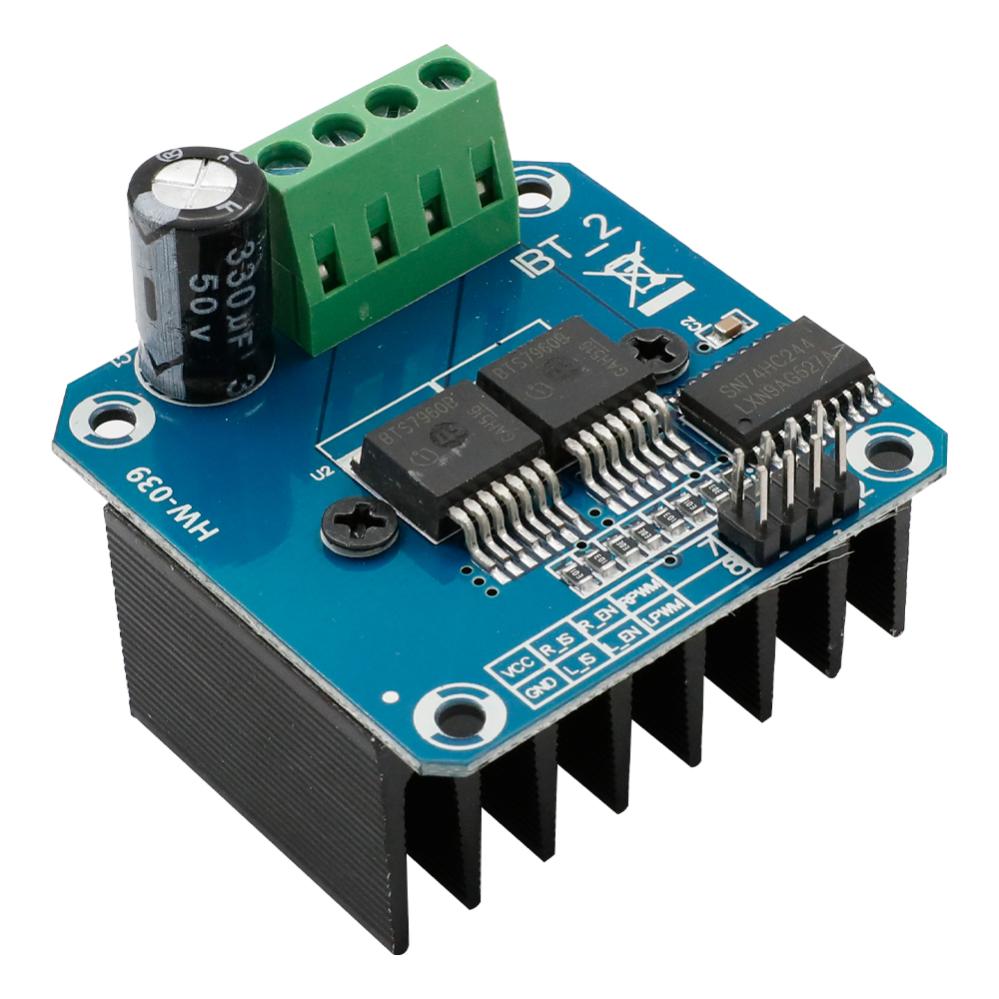

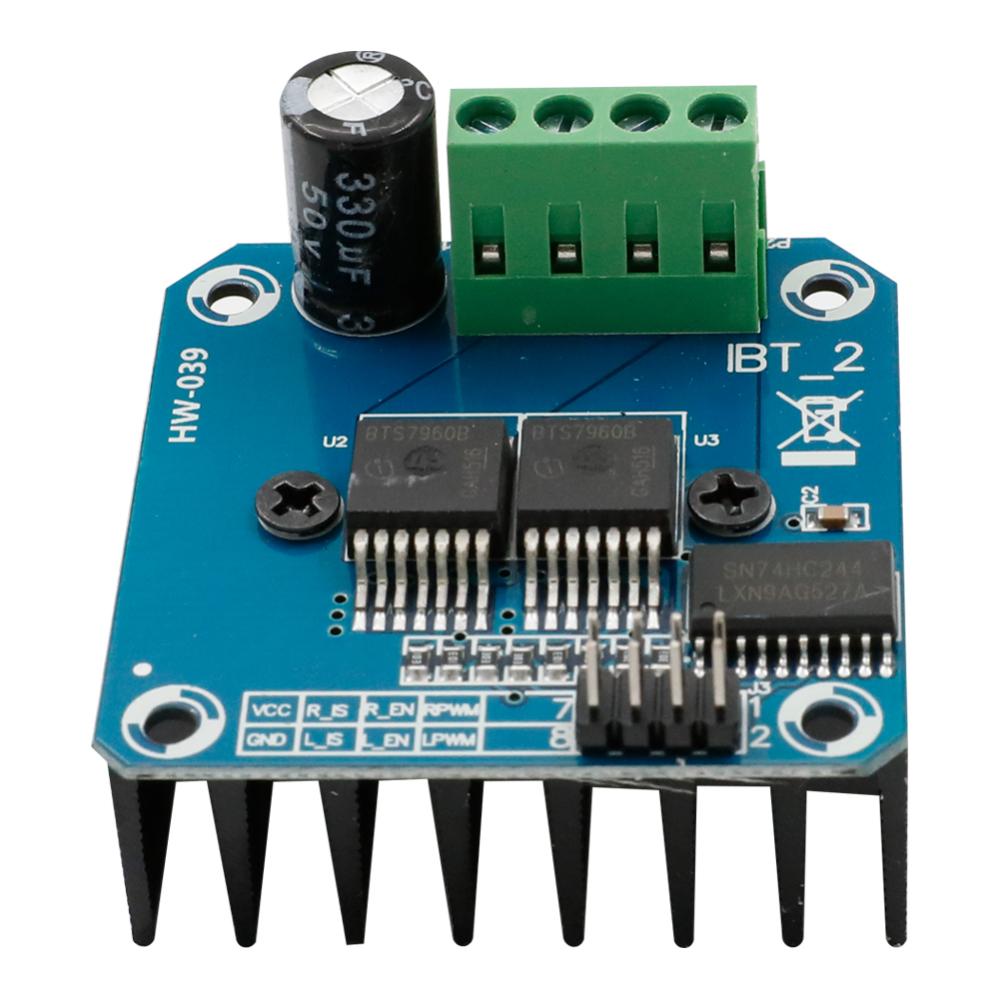

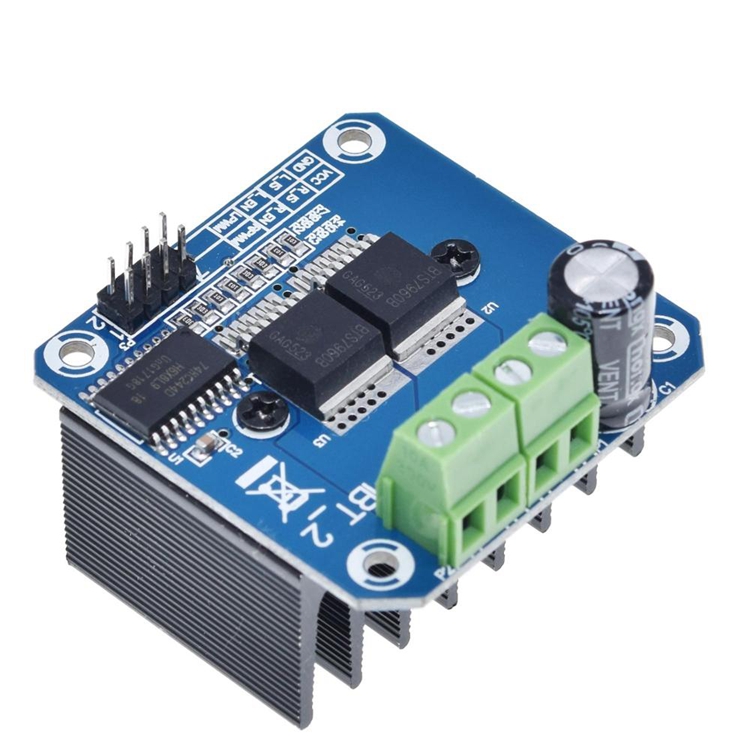

The BTS7960 is a high-power motor driver based on a dual H-bridge. It is used to control DC motors under high load conditions. The module is built around two MOSFET-based BTS7960 half-bridges, enabling efficient and robust motor control via PWM signals from a microcontroller, such as Arduino.
The module is designed for applications requiring high rated current, such as robotics, small-scale electric vehicles, and industrial control systems. The dual H-bridge allows both direction control and speed regulation, while integrated protection features enhance operational reliability.
The internal design of the BTS7960 includes features such as dead-time control, current monitoring, and adjustable switching speed, ensuring stable operation even under dynamic loads.
Protection circuits for overcurrent, overtemperature, undervoltage, and short circuit are integrated into the device.
Typical applications include control of DC motors, stepper motors, and other high-current loads using PWM-based regulation.
Specifications:
- Supply voltage: 5.5 - 27 V
- Rated current (max): 43 A
- Logic level: 5 V
- Control: PWM (speed and direction)
- Type: Dual H-bridge
- Protection features: Overcurrent, overtemperature, undervoltage, short circuit
- Applications: DC motors, robotics, vehicle projects
