Product description

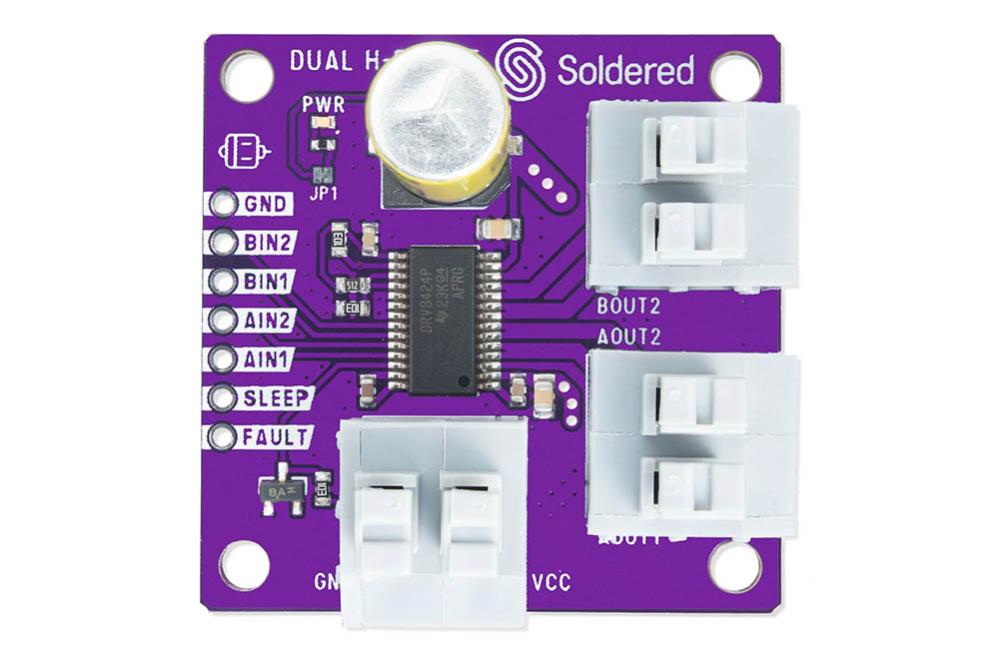

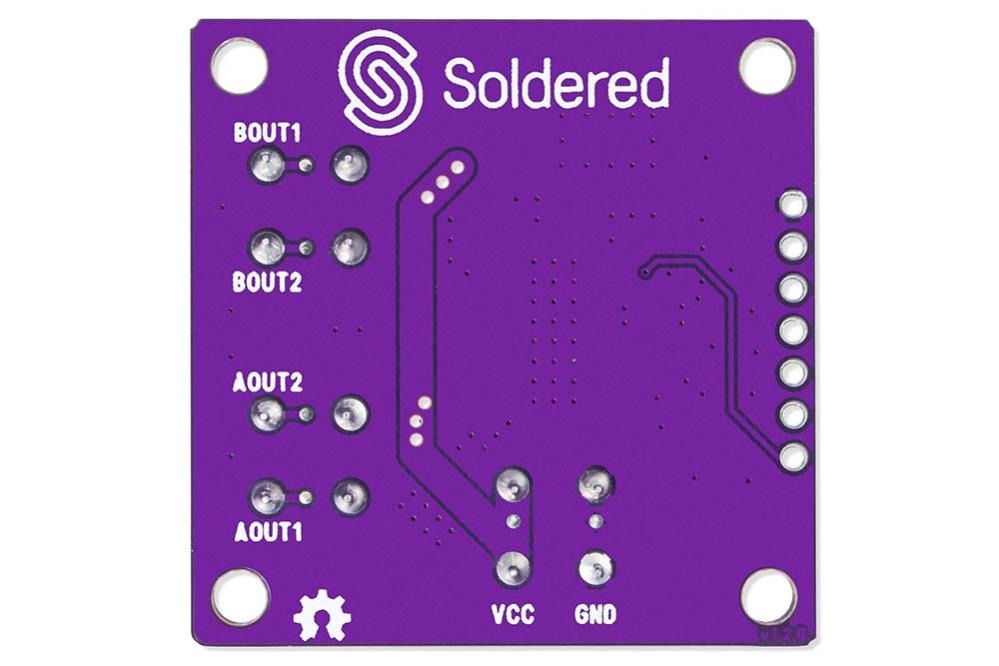

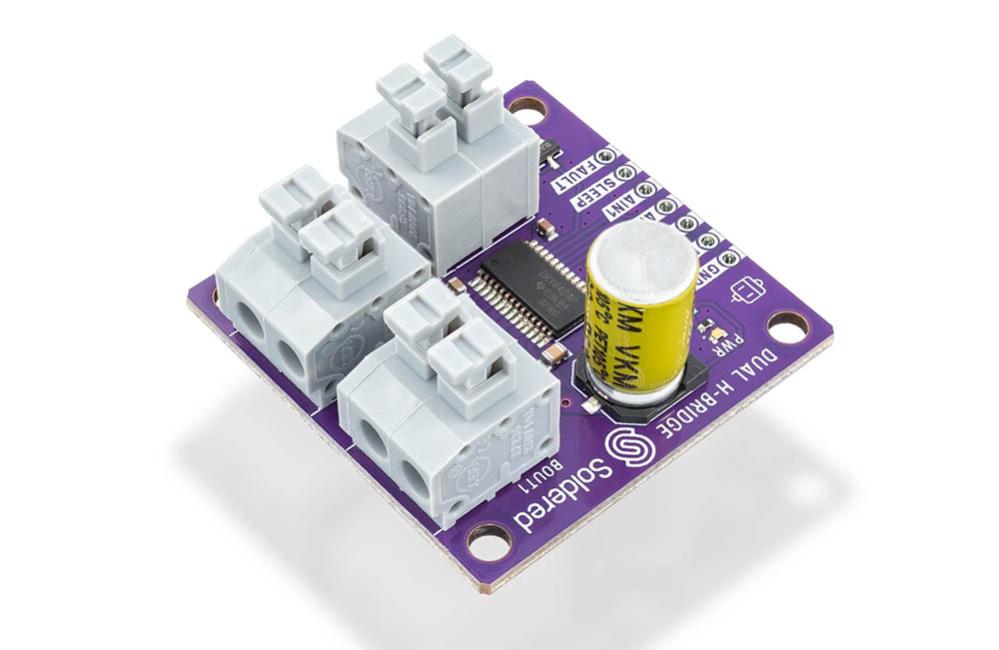

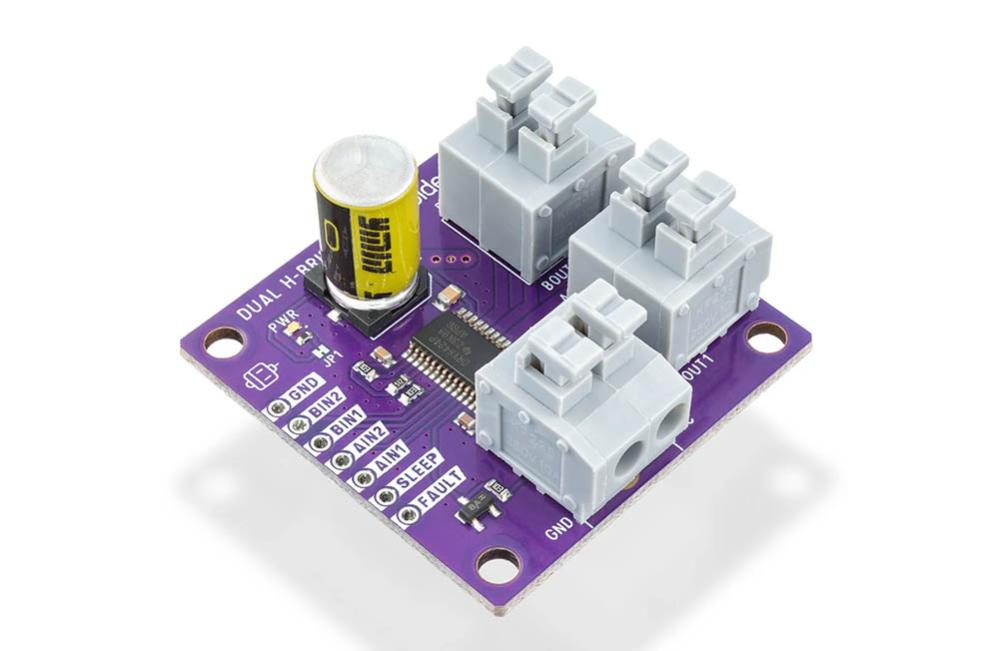

Dual H-bridge module based on the Texas Instruments DRV8424P for driving two DC motors or one bipolar stepper motor. The module provides efficient and reliable motor control and is suitable for robotics, automation, mechatronics, and other projects requiring precise motor control.
The DRV8424P features advanced protection and control functions and supports motor supply voltages from 4.5 V to 35 V. Each motor channel can deliver up to 2.5 A continuous output current and up to 4 A peak output current for short-duration loads. The module includes built-in protection against overtemperature, overcurrent, and undervoltage lockout for safe operation.
Specifications:
- Motor driver IC: Texas Instruments DRV8424P
- Motor type: 2 × DC motors or 1 × bipolar stepper motor
- Motor supply voltage: 4.5–35 V
- Output current (max): 2.5 A per motor channel
- Peak current (max): 4 A
- Protection: Overtemperature, overcurrent, and undervoltage lockout
- Dimensions: 38 × 38 mm

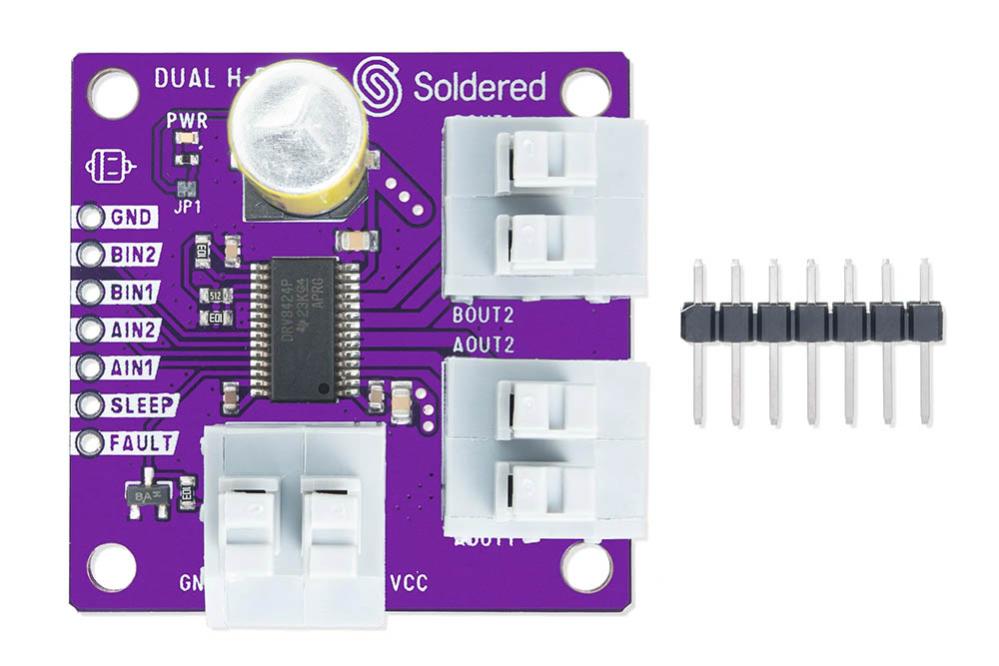

- Supplied with: Pin header (not pre-soldered)
