IRF520 MOSFET driver module

Art no: 41017362
Shop this product, IRF520 MOSFET driver module
price 29 SEK
Including 25% VAT

Mängdrabatt:
1pcs = 29:-10pcs = 246:5025pcs = 471:25

Quantity discount
QuantityPrice
1 till 9
29 SEK
10 till 24
24.65 SEK
25 till
18.85 SEK
In stock, 113 pcs
Unit : Piece

Do you need assistance?

Call +46 40 298760 (monday - friday 10AM - 4 PM CET) or email us on info@electrokit.se

Product description

OpenClose

Product description

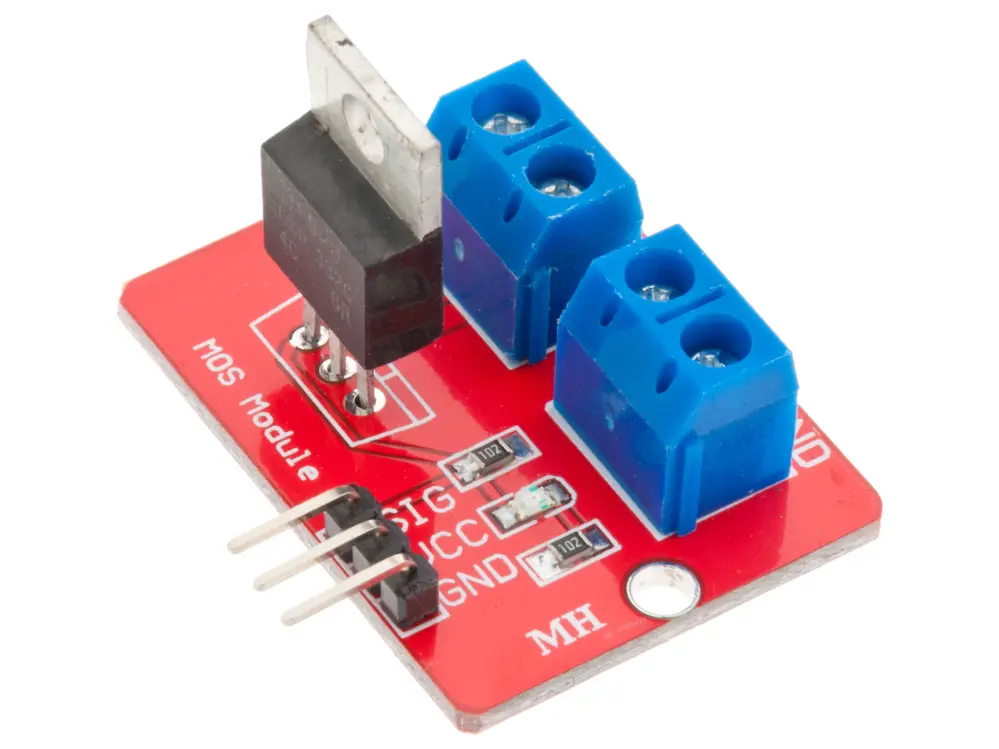

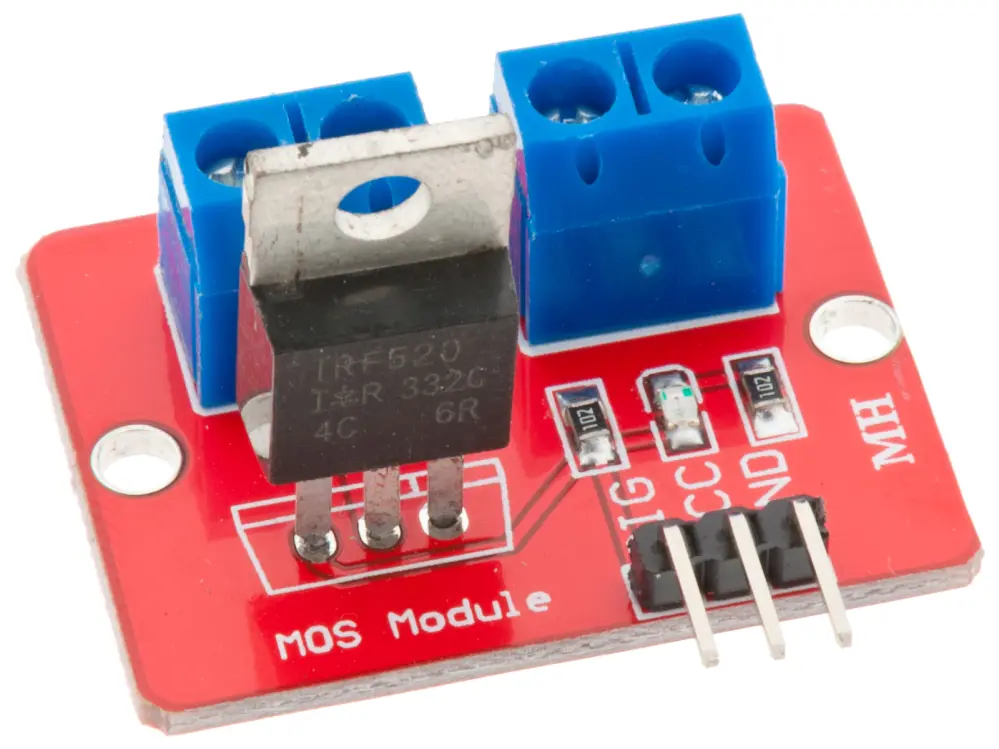

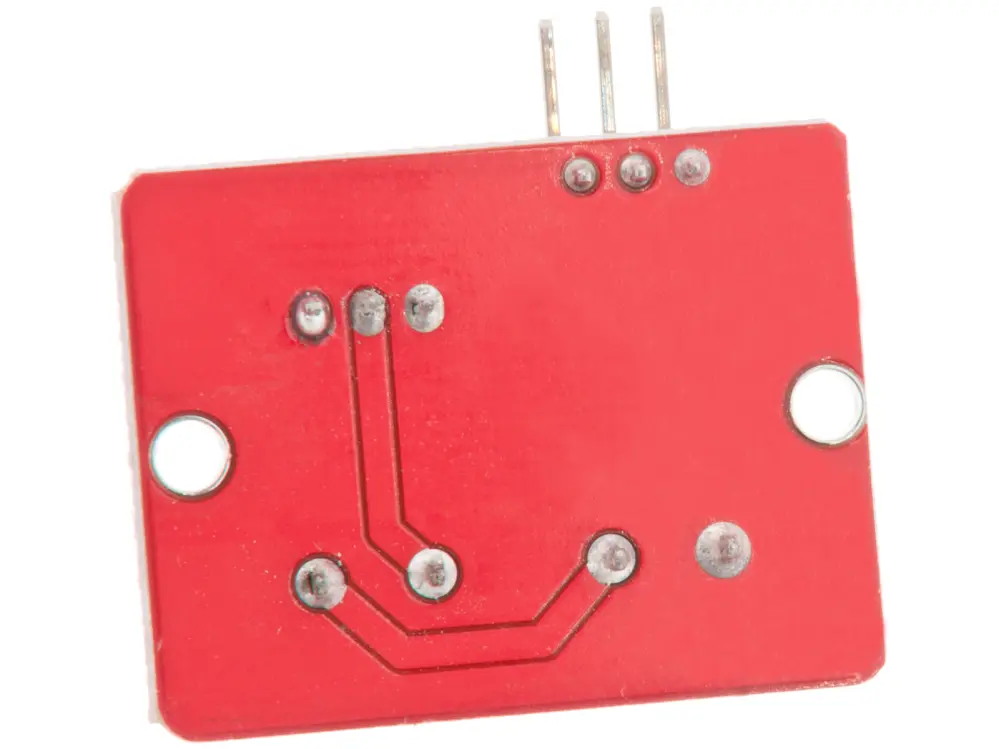

IRF520 MOSFET driver module. Module for controlling larger loads from, for example, a microcontroller, logic circuit, push button or sensor. The module has an IRF520 (N-channel MOSFET), a LED that shows the status of the control signal, and screw terminals for supply voltage and output. The control signal is sent to the pin header and should be approximately 5 to 10 V. The module can be used both to turn a load on/off and for PWM control.

Areas of application:

  • LED strips and lighting
  • DC motors
  • Pumps
  • Solenoid valves
  • Control of contactor

Connection to microcontroller:

  • SIG – control signal (3.3* or 5V signal level)
  • VCC – Not connected
  • GND – Ground (minus)

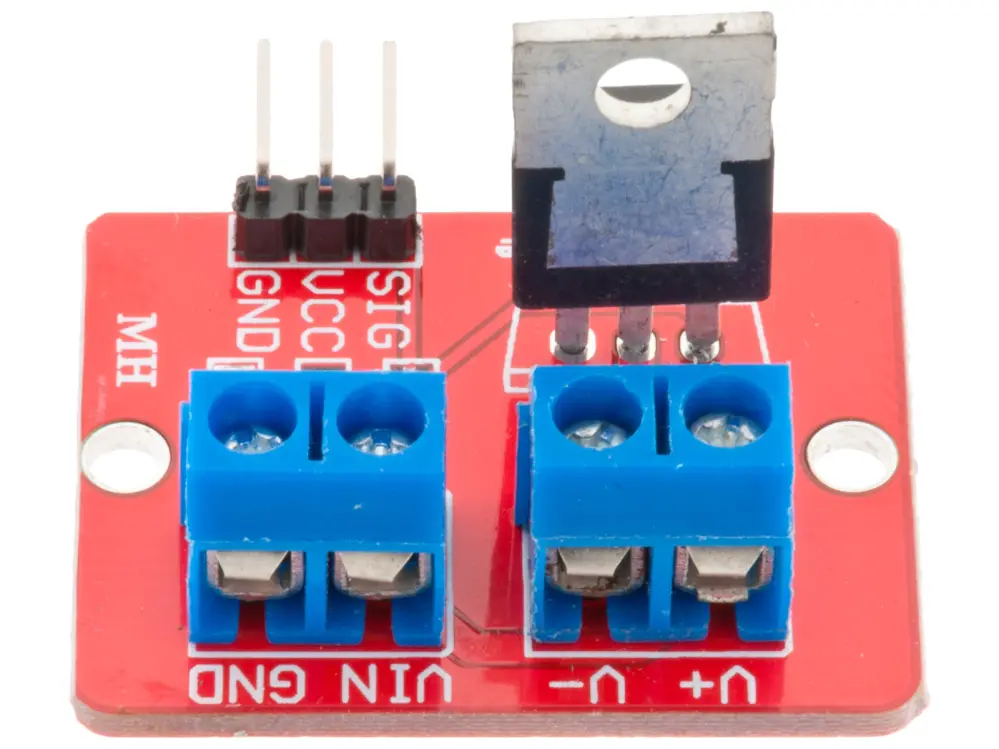

Connection screw terminals:

  • VIN: Drive voltage (max): 12-24 VDC**
  • GND: Ground (minus)
  • V- : Negative pole for load
  • V+: Positive pole for load

Other:

  • Max load: 1A (up to 5A with heat sink)
  • LED indicates when control signal is activated
  • Dimensions: 34 × 26 mm
  • Hole pattern: c-c 28.6mm / ø3mm

* at lower loads, the control signal can operate down to approx. 3.3 V
** operates down to 5 V if the load current is low
