Product description

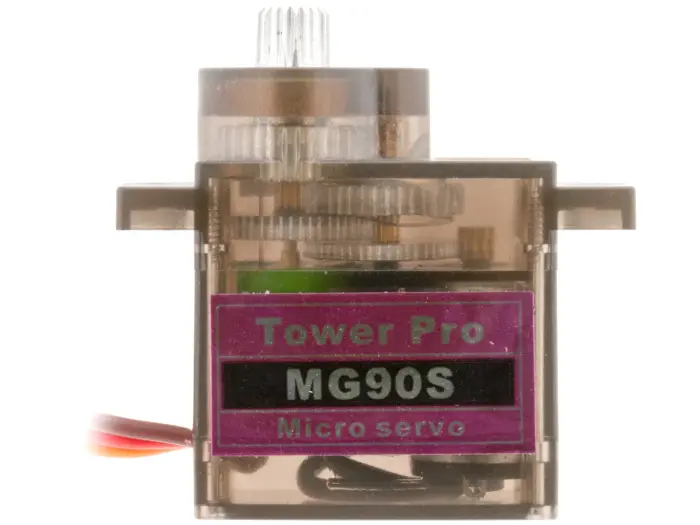

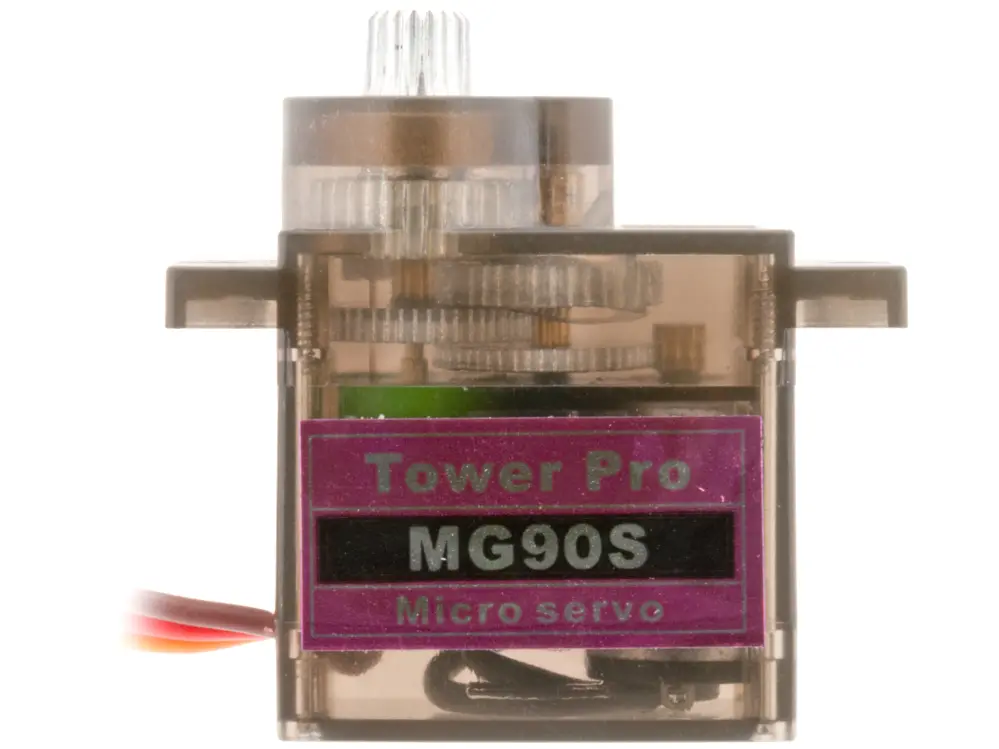

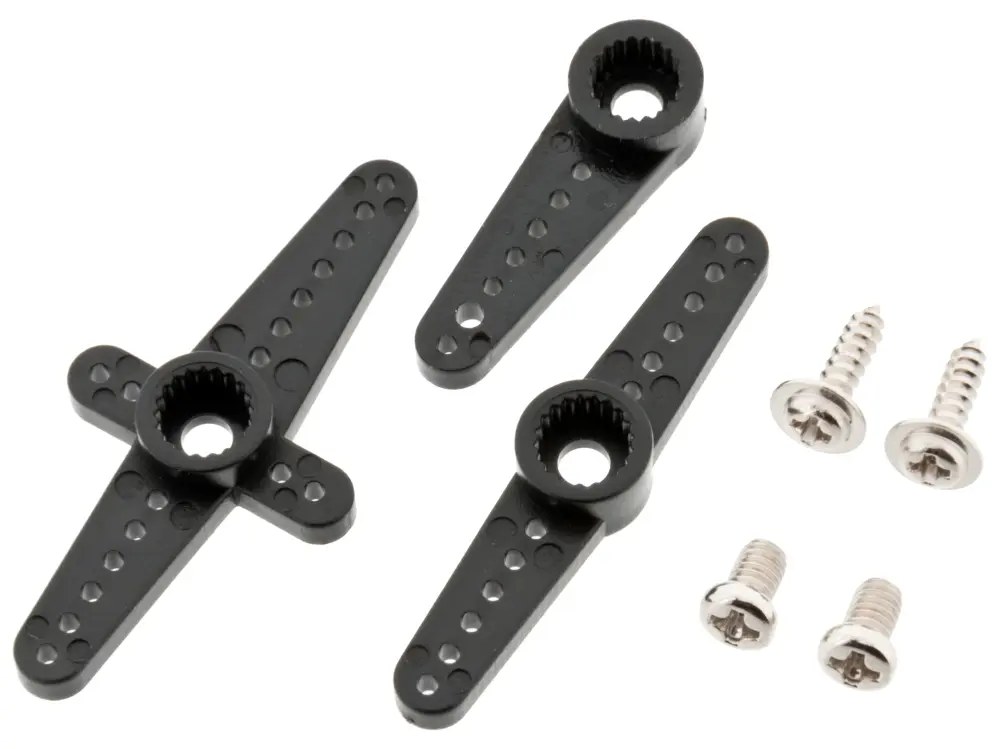

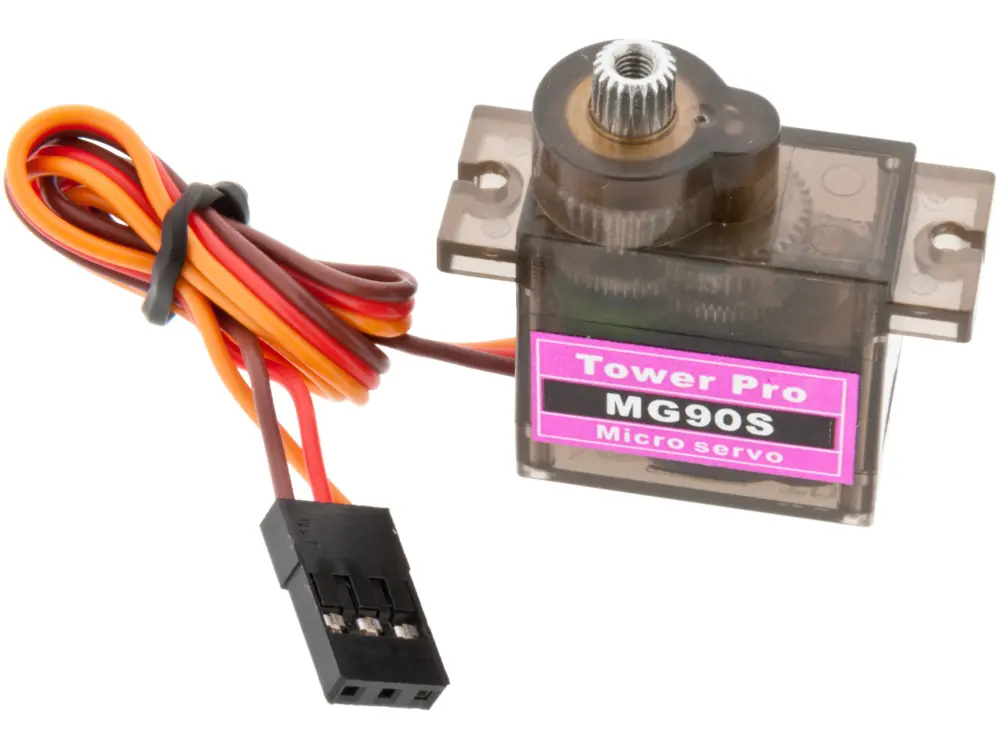

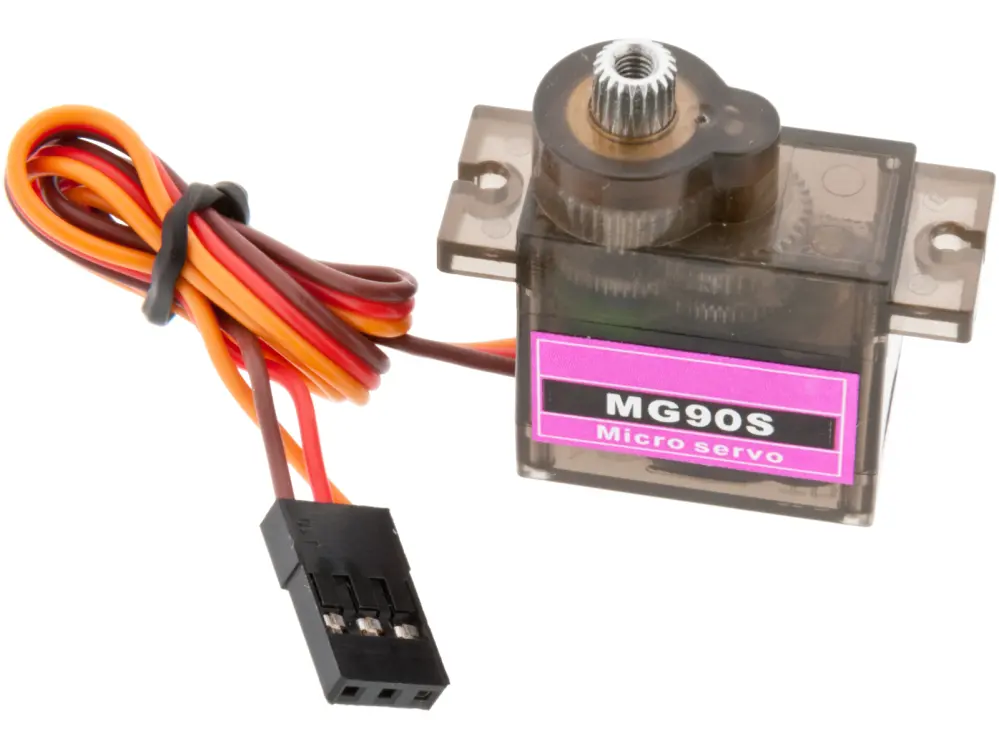

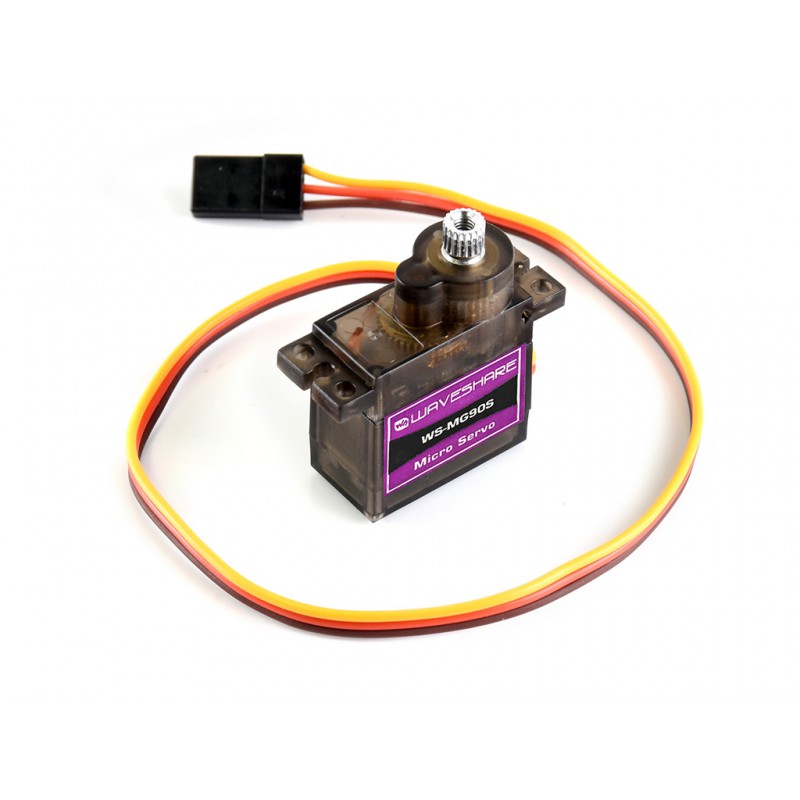

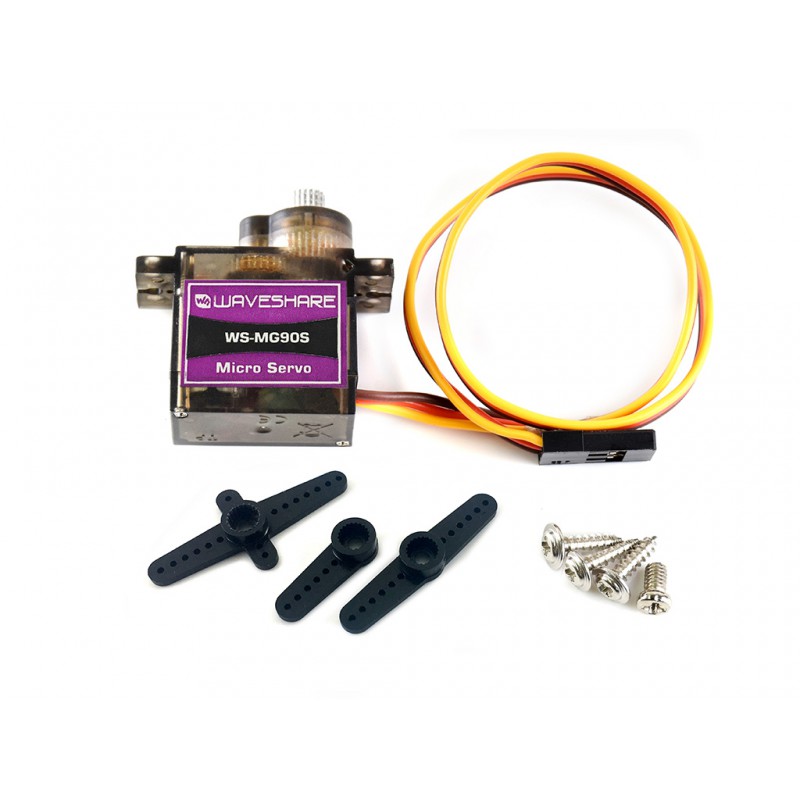

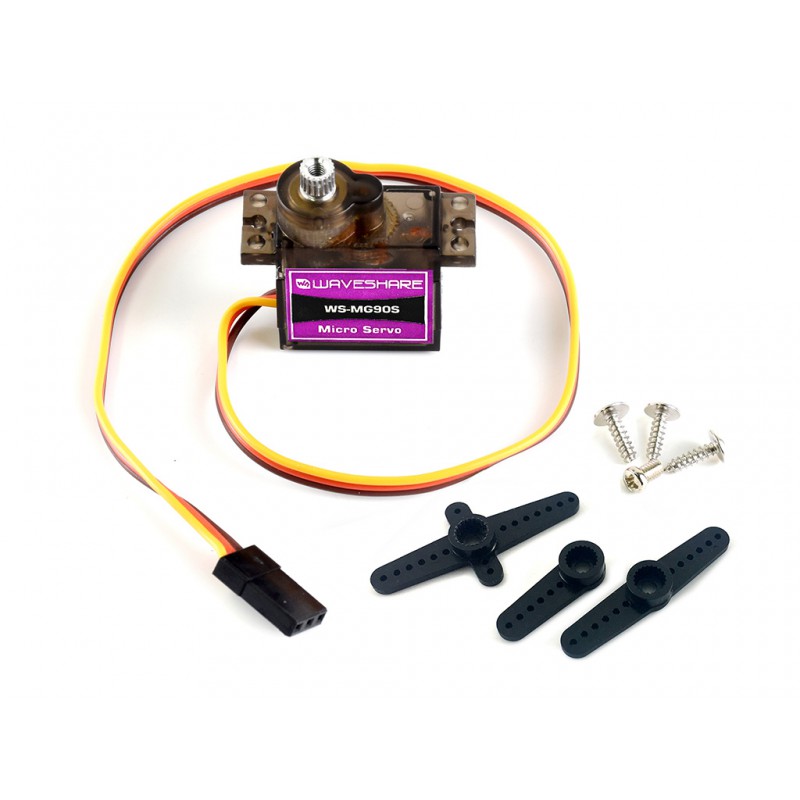

Analog micro servo with metal gearbox. Can be controlled from e.g. Arduino, Raspberry Pi, ESP32, RC receiver, etc. Fixed end stops. Supplied with servo horns (servo arms). Connector with 2.54 mm pitch (breadboard friendly).
Specifications:
- Supply voltage: 4.8 to 6.0 VDC
- Gearbox, gear material: Metal
- Servo type: Analog
- Rotation range: 180°
- Speed (4.8/6.0 V): 0.11/0.09 s/60°
- Torque (4.8/6.0 V): 2.0/2.8 kg·cm
- Pulse width (PWM): 600–2800 us
- Form factor / size: Micro servo

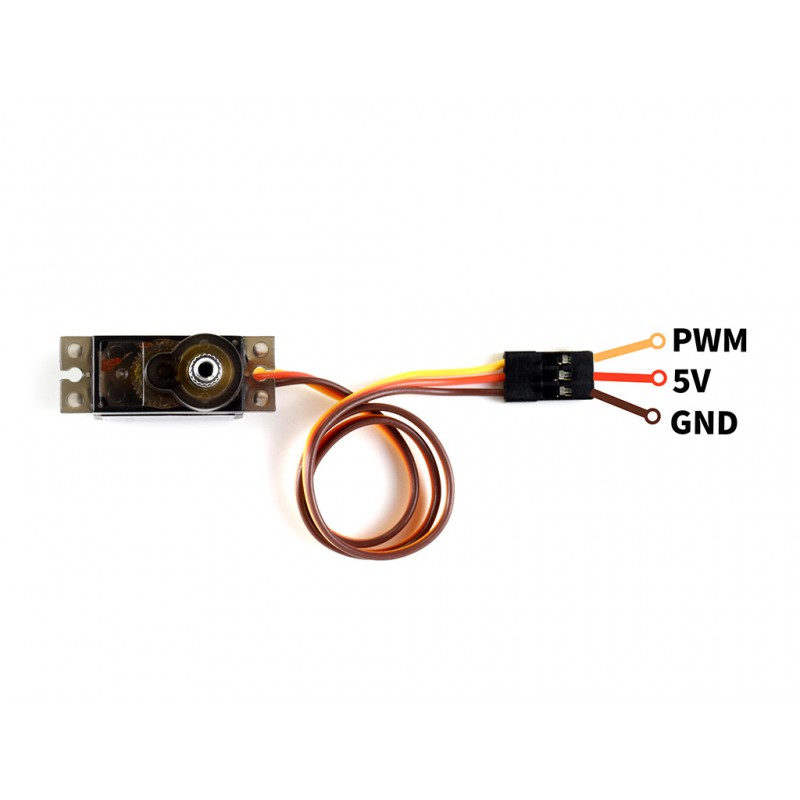

- Connection: 3 pins (positive, negative, and signal)
- Connector type: JR / Futaba / GWS
- Cable length: 180 mm
- Dimensions: 22.8 x 12.2 x 28.5 mm
- Weight: 12.2 g
- Model: MG90S
