Product description

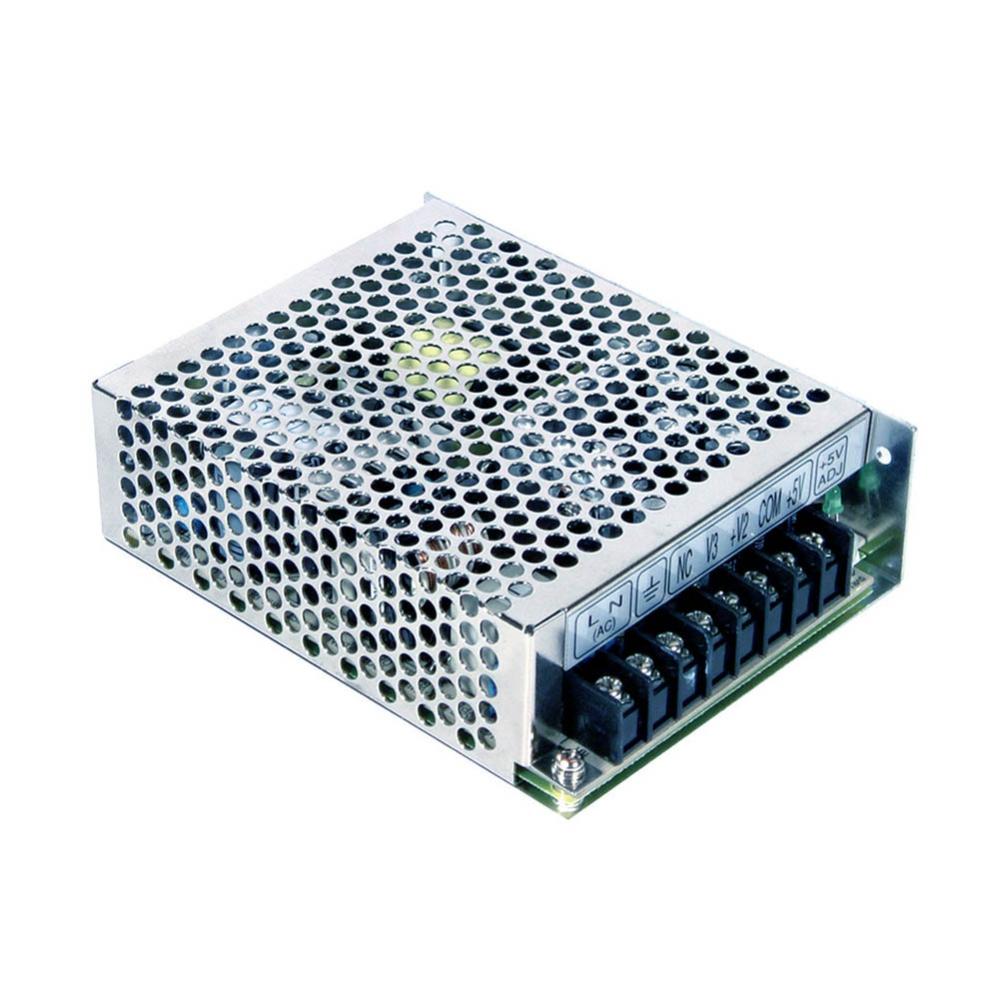

The MEAN WELL RT-65 series is a family of 65W triple-output enclosed switching power supplies designed for high reliability and long lifespan in industrial or commercial applications. Protected against short circuit, overload, and overvoltage. The overload protection resets automatically when the cause of the fault has been removed. LED indicates that the power supply is switched on. Intended for industrial automation, industrial control systems and other electrical equipment.
Metal enclosure with ventilation openings, cooled by natural air convection without a fan. Can be used at ambient temperatures from -25 to +70 °C.
The triple-rail outputs also makes this series highly popular in the retrocomputing community, for replacing aging power supplies in devices such as the Commodore Amiga.
Specifications:
- Product type: Switching power supply for built-in installation
- Manufacturer: Mean Well
- Model: RT-65B
- Input voltage: 88–264 VAC or 125-373 VDC
- Output voltage channel 1: 5V
- Output voltage channel 2: 12V
- Output voltage channel 3: -12V
- Current output channel 1: 5A
- Current output channel 2: 2.8A
- Current output channel 3: 0.5A
- Rated power: 65 W
- Ripple and noise: max. 80 / 120 / 80 mV p-p for the respective channels
- Efficiency: 76%
- Protection: Short circuit, overload, and overvoltage
- Operating temperature: -25 to +70 °C
- Cooling: Natural air convection
- LED indication: Yes
- Dimensions 129 x 98 x 38 mm
- Weight: 0.44 kg
- Safety: CE, TÜV, BS, EN 62368-1, etc.
